Safety Features
RCMB On-board: RCMB (6mA DC residual current detection)
RCD EVB100 / EVB200: To be located in distribution board
(at least type A, 30mA)
MCB EVB100 / EVB200: To be located in distribution board
(class C, nominal current 32A)
RCB / MCB EVB101 / EVB201: integrated, type A 30mA, class C, nominal
current 32A
Control voltage 12VDC
Temperature control High operating temperature, such as direct sunlight, can cause
reduced charging current or temporary interruption in the
charging procedure
Control and Communication
Operation mode Standalone / Online
Wireless 2G / 3G / 4G
Wired Ethernet
Protocol OCPP1.5 or OCPP1.6

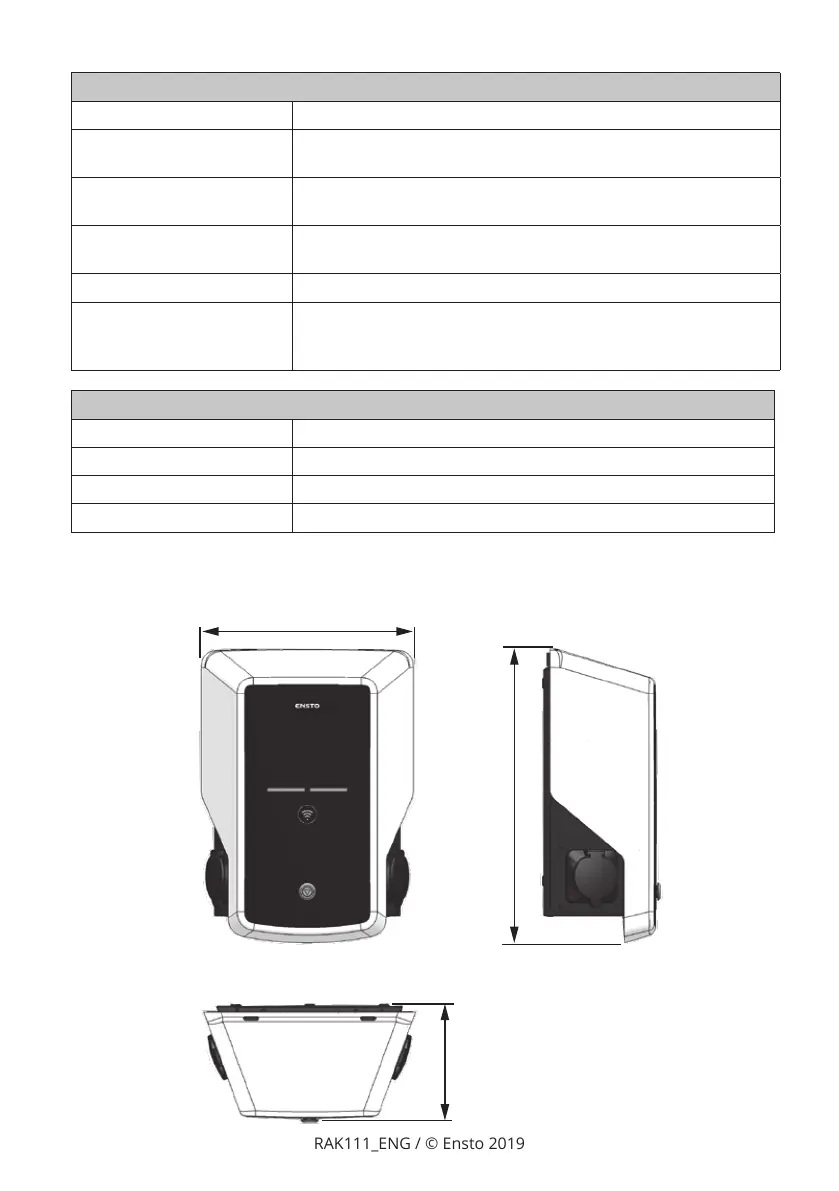

10. Dimension Drawing
348
481
191
