32
RAK111_ENG / © Ensto 2019

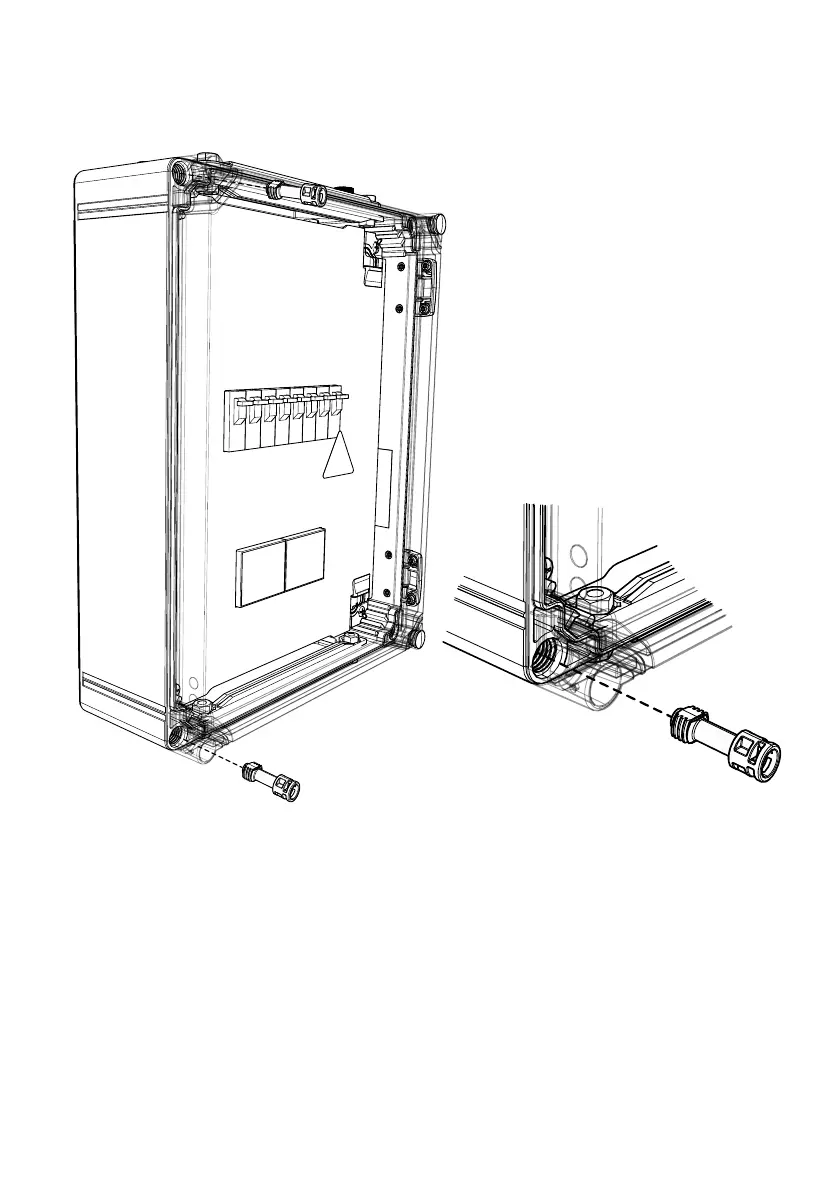

1. Open the transparent cover by re-
moving the cover screws (2 pcs).
2. Bring the supply cable through the top ange of the enclosure.
3. Connect the supply cable leads to the supply terminals on the extension box.
4. Remove the ange at the bottom of the extension box.
5. Open the knock-outs and insert the cable glands needed for connection cables.
6. Cut the connection cables in suitable lengths. Make sure that the supply connection cable
is long enough so that the ground lead reaches the PE terminal on the extension box.
7. Connect the extension box to the Wallbox, see wiring example on page 33.
8. See also Wallbox wiring instructions on page 17.
16.2. Wiring Instructions
