Connecting to the Network
SecureStack B2 Installation Guide 3-27
.
2. InserttheMT‐RJcableconnectorintotheMT‐RJconnectoruntilitclicksintoplace.

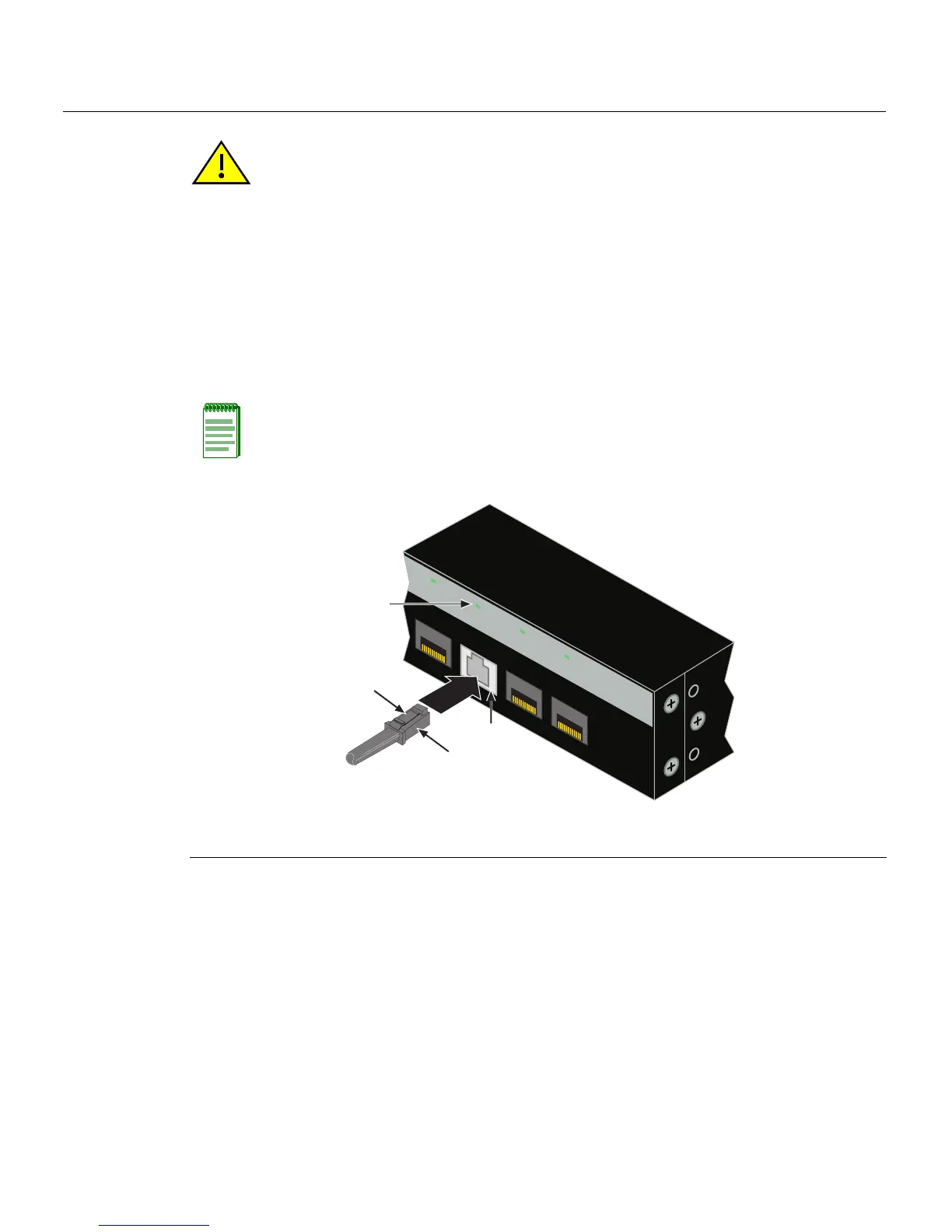

Figure 3-18 Cable Connection to MT-RJ Multimode Fiber-Optic Connectors
3. Plugtheotherendofthecableintotheappropriateportontheotherdevice.Some
cablesmaybeterminatedattheotherendwithtwoseparateconnectors,oneforeach
fiber‐opticstrand.In
thiscase,ensurethatthetransmitfiber‐opticstrandisconnected
tothereceiveportandthereceive fiber‐opticstrandtothetransmitport.
4. VerifythatalinkexistsbycheckingthattheportLink/ActivityLEDison(blinking
greenorsolidgreen).IftheLink/ActivityLEDisoff,perform
thefollowingstepsuntil
itison:
a. VerifythatthedeviceattheotherendofthesegmentisONandconnectedtothe
segment.
Caution: Do not touch the ends of the fiber-optic strands, and do not let the ends come in
contact with dust, dirt, or other contaminants. Contamination of cable ends causes
problems in data transmissions. If the ends of the fiber-optic strands become
contaminated, use a canned duster to blow the surfaces clean. A fiber-port cleaning swab
saturated with optical-grade isopropyl alcohol may also be used to clean the ends.
Precaución: No toque los extremos de los cables de fibra óptica y evite su contacto con
el polvo, la suciedad o con cualquier otro contaminante. Si los extremos de los cables se
ensucian, es posible que la transmisión de datos se vea afectada. Si nota que los
extremos de los cables de fibra óptica se ensucian, utilice aire comprimido para limpiarlos.
También puede limpiarlos con un estropajo embebido en alcohol isopropílico.
Note: To remove the MT-RJ cable connector, press on its release tab and pull out the
cable connector.
1 Mini-GBIC MT-RJ port connector 3 Release tab
2 MT-RJ cable connector 4 Link/Activity LED
21
22
23
24
21
22
23
24
B2G124-24
À
Â
Á
Ã
