Enterasys SecureStack B2 B2G124-24 - MGBIC-02 Specifications (1000 BASE-T; Console Port Pinout Assignments; MGBIC-02 Specifications

Console Port Pinout Assignments
Enterasys SecureStack B2 Installation Guide A-7
MGBIC-02 Specifications (1000BASE-T)
Console Port Pinout Assignments
TheConsoleportisaDB9serialcommunicationsportforlocalaccesstoLocal
Management.RefertoFigure A‐1forthe Consoleportpinassignments.

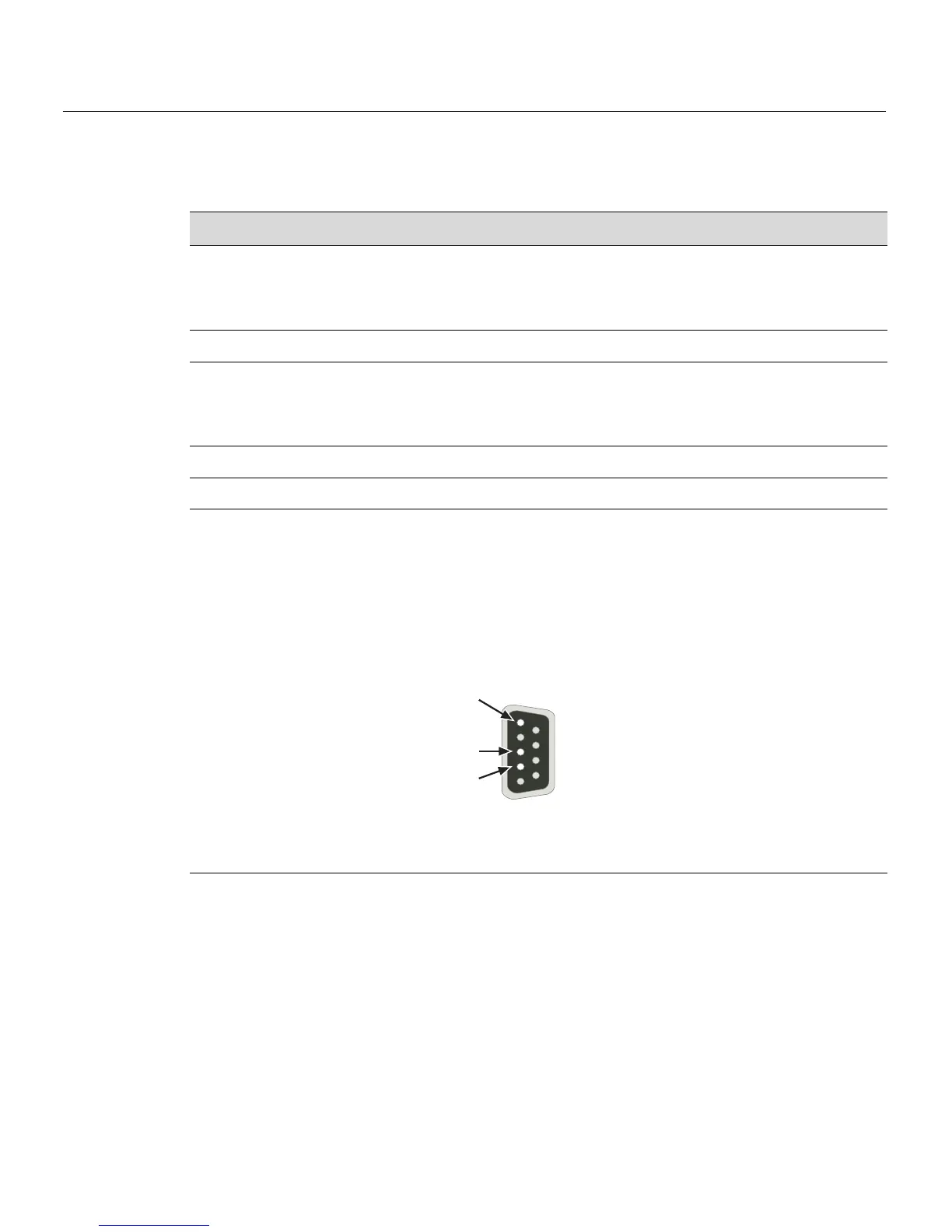

Figure A-1 Console Port Pinout Assignments
Table A-11 MGBIC-02 Specifications
Item Specification
Supported Cable:
Type
Maximum Length
Copper, Category 5 UTP
Up to 100 meters
Connector RJ45
Data Rate 1 Gbps, IEEE 802.3:2000 compatible
1000BASE-T operation only
Automatic crossover detection
TX Output impedance 100 ohms, typical at all frequencies between 1 MHz and 125 MHz
RX Input impedance 100 ohms, typical at all frequencies between 1 MHz and 125 MHz
1 Pin 2, Received Data (input) 3 Pin 5, Signal Ground
2 Pin 3, Transmitted Data (output) All other pins not connected.
Â
À
Á
5
1
9
6
