Enter the power value of the first capacitor step and then press the SET
button. If you do not want to set another parameter, press the ESC button.
Note : If the 10th program is selected, capacitor powers can be set
separately for each capacitor step. However; if any program except
PS-10 is selected, only first capacitor steps power value (C-01) can be
set manually. Capacitor powers for other steps are calculated in 3-
phase according to the selected program.
POWER FACTOR CONTROLLER
RG3-12C/CS
11

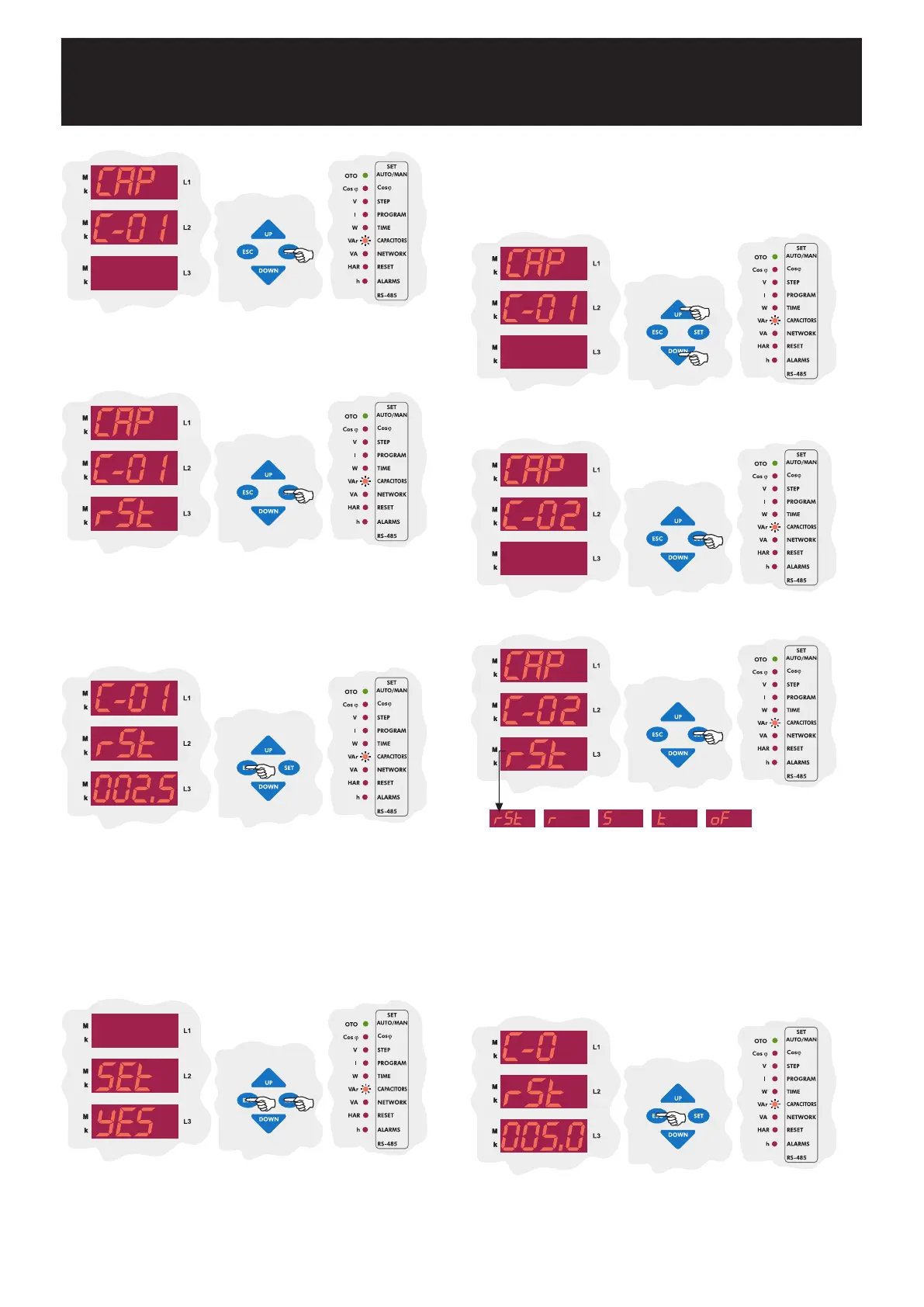

Press the SET button to enter to the first capacitor step
setting menu(C-01) which is the first menu under the capacitor
menu option.
First capacitor step is used to find connection. Therefore, a 3-phase
capacitor must be connected to the first step. For this reason, it isnt
possible to set the connection setting for first capacitor step and it is
always selected RST type and it can not be changed. Press the SET
button to set power value of the first capacitor step.
SAUE
If you want to leave the setup menu without making any other changes,
press the ESC button until SAVE SEt yES shows on the screen. If
you want to save the changes, press the SET button. If not, press the
ESC button.
When PS-10 (Program 10) is selected, connection type and capacitor power
value settings of all capacitor steps from the 2nd to the 12th can be set.
When a program expect PS-10 is selected, only first capacitor steps setting
can be changed and other steps can not be set.
Using the UP/DOWN buttons, second capacitor steps connection type
can be set manually as connected to the r, S, t or rSt phase/phases.
If this parameter is selected as oFF, capacitor step which is connected
to the second step will be disabled.
Note : After automatic calculation of the capacitors, if oFF is displayed
in any step, it means that related capacitor could not be calculated, is
defected or there is no connected capacitors in the related step.
3.6.b Second Capacitor Step Setting
Using the UP/DOWN buttons, find the second capacitor step setting menu(C-02).
The first setting in the second capacitor step menu is the connection
type. Press the SET button to select connection type.
2
Enter the power value of the second capacitor step and then press the
SET button. If you do not want to set another parameter, press the ESC
button.
Press the SET button to set second capacitor steps
power value.
