Entes RG3-12C - Currents, Active Powers, Total Active Powers

Active Powers
Total Active Powers

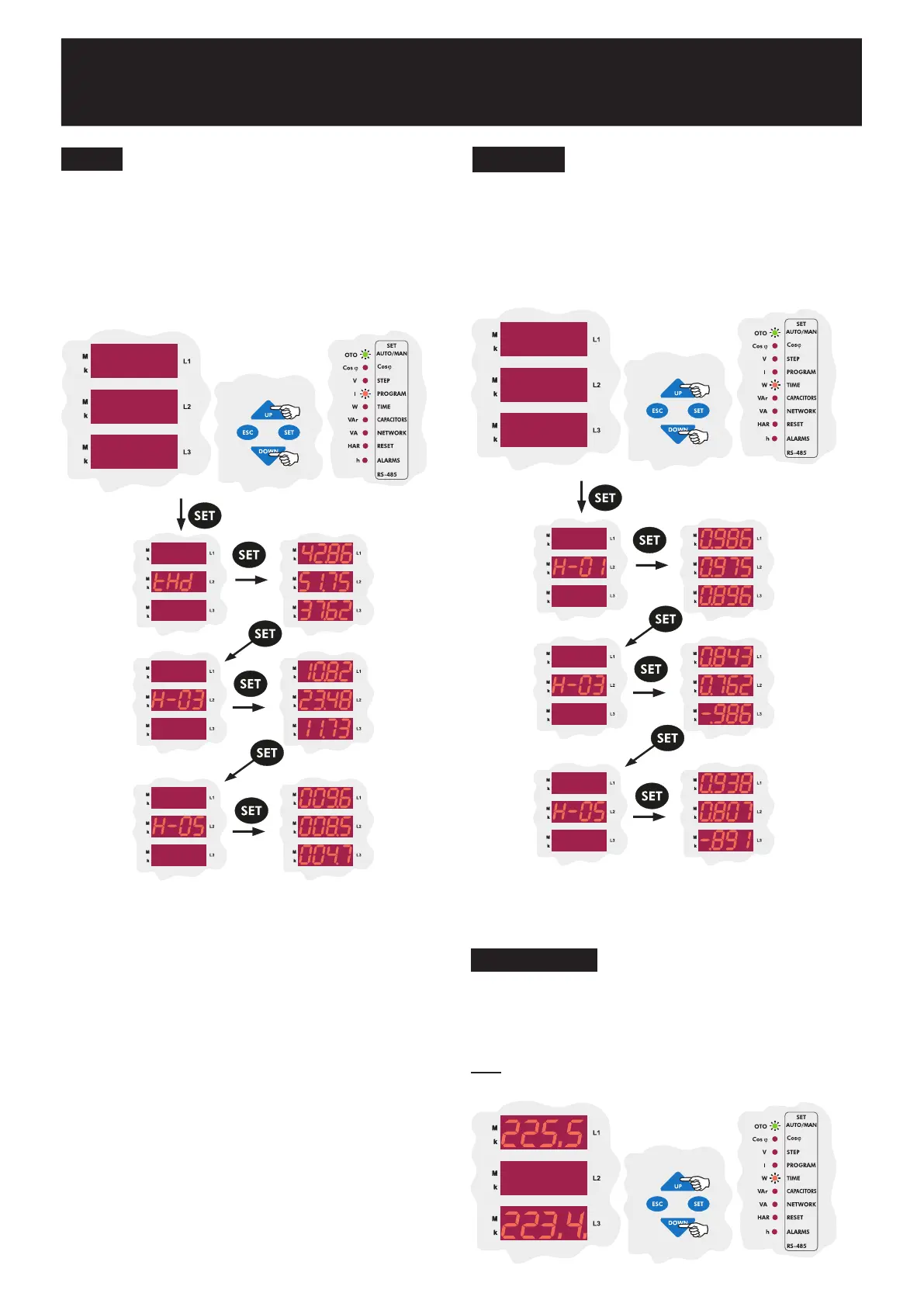

When active power values are displayed, if the DOWN button is pressed,
import active and export active power values are displayed. As seen in
the example below, total active import power value is displayed on the
first display and total active export value is displayed on the third display.
Note: The dot at the most right digit of the third display indicates that
the displayed value is export value.
W and HAR LEDs on the display indicate that displayed values are active
power harmonic values. By pressing the SET button repeatedly, odd-
numbered harmonic values up to 19th harmonic can be observed.
In the measurement mode, phase-phase current values can be displayed
by using UP/DOWN buttons when I LED lights.
When phase current values are displayed, if SET button is pressed
(HAR LED lights), odd-numbered harmonic values up to 19th harmonic
can be observed.
In the measurement mode, active power values can be displayed by using
UP/DOWN buttons when W LED lights. When active power values are
displayed, if SET button is pressed (HAR LED lights), odd-numbered
harmonic values up to 19th harmonic can be observed.
Active power values of the phases are displayed on the display. If the dot
at the most right of the value blinks, the active power on this phase is
export active power.
Currents
I and HAR LEDs on the display indicate that displayed values indicate
current harmonic values. By pressing the SET button repeatedly, THD
and odd-numbered harmonic values up to 19th harmonic can be observed
as %.
25.87
32.56
18.93
225.5
2
28.7
2
23.4
POWER FACTOR CONTROLLER
RG3-12C/CS
29
