If you want to leave the setup menu without making any other changes,
press the ESC button until SAVE SEt yES shows on the screen. If
you want to save the changes, press the SET button. If not, press the
ESC button.
POWER FACTOR CONTROLLER
RG3-12C/CS
21
3.9.d.c Programming the Switching Off of the Capacitor
Steps in Case of Harmonic Alarm
In order to protect the capacitors from overvoltage harmonic, they can be
set to switch off in case of a harmonic alarm in this menu.
If on option is selected, when overvoltage harmonic error occurs,
capacitor steps stay switched on.
If of option is selected, when overvoltage harmonic error occurs, capacitor
steps switch off.
SAUE
If you want to leave the setup menu without making any other changes,
press the ESC button until SAVE SEt yES shows on the screen. If
you want to save the changes, press the SET button. If not, press the
ESC button.
SAUE

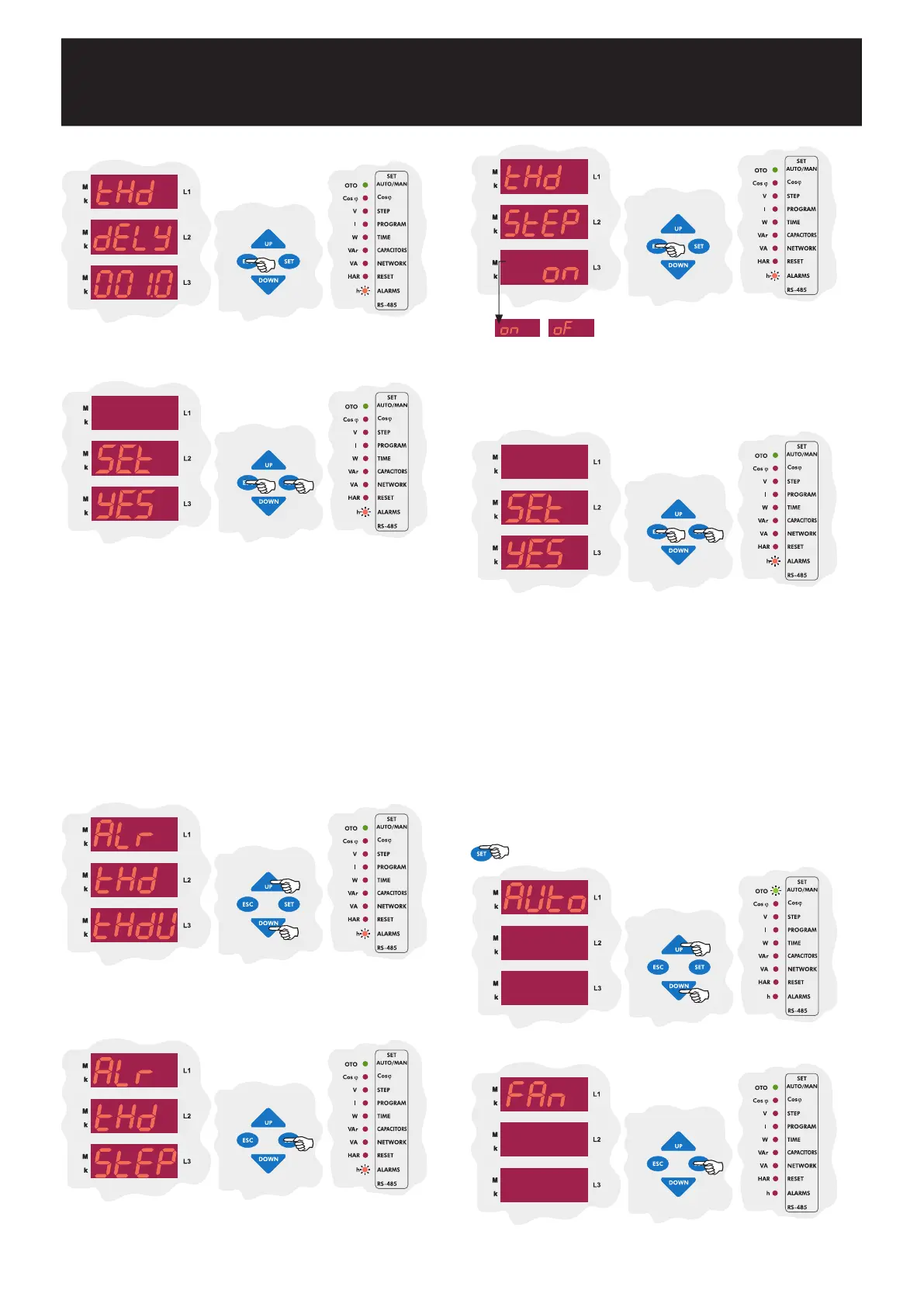

Enter the delay time for overvoltage harmonic between 0-999,9 seconds
and press SET button.
Using the UP/DOWN buttons, find capacitor step(StEP) menu.
Press the SET button for capacitor step menu which is the third setting
in the harmonic menu.
Using the UP/DOWN buttons, select on(capacitors stay switched on)
or of(capacitors switch off) option and press SET button.
If you are
going to change another setting, return to the menu by pressing the
SET button.
If you do not want to set another parameter, press the
ESC button.
The values for switching on and switching off are entered in this menu.
There are two submenus as FAn on and FAn oFF in this menu.
Note: Temperature measurement feature for RG3-12C/CS is optional.
3.10 Fan Relay Settings
3.10.a Switch On Value for Fan Relay
Fan relay switching on temperature is programmed in this menu. Relay is
switched on after 10 sec. when the measured temperature increase the
set value and Fan led light will be on.
First setting of the fan relay menu is is the operating temperature of the
fan. Press SET button to enter this menu.
Press the SET button for 3 sec. in order to enter to the
menu.
3 sec.
Using the UP/DOWN buttons, find fan relay settings(FAn) menu.
