Entes RG3-12C - Displaying of Instantaneous Values; Cos J, Total Cos J, Voltages

In the Instantaneous Values menu, below network parameters can be
observed by using the UP, DOWN and SET buttons.

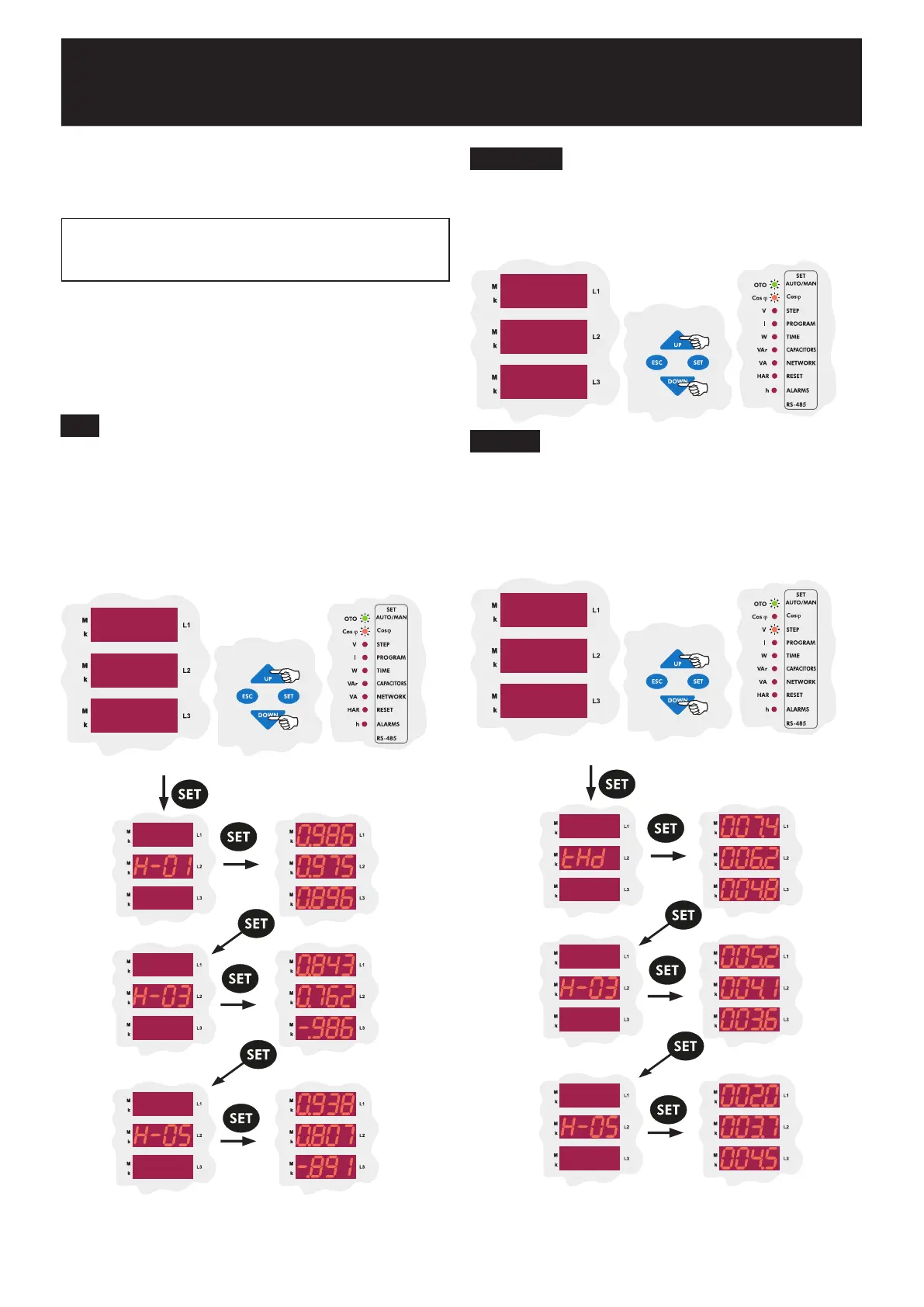

4. DISPLAYING OF INSTANTANEOUS VALUES
By pressing the ESC button repeatedly in any menu, Instantaneous
Values menu can be displayed.
This is the main menu of RG3-12C/CS. If you wait without pressing the
buttons in any menu, Instantaneous Values menu ýs displayed
automatically.
When RG3-12C/CS is energised for the first time, Instantaneous Values
menu is displayed.
Cosj
Voltages
When the device is energised, Cosj values of the 3-phases are
displayed. A negative (-) sign indicates that the phase is capacitive
and a positive (+) sign indicates that the phase is inductive. As you
can see in the example below; Cosj value of the first phase is
capacitive, Cosj value of the the second and third phases are
inductive.
While observing cosj values, if SET button is pressed
(HAR LED lights), harmonic values can be observed up to 19th
(odd-numbered) harmonics.
When Cosj values are displayed, if DOWN button is pressed, Total
Inductive Cosj and Total Capacitive Cosj values are observed. As you
can see in the example below, total inductive Cosj value is displayed on
the first display and total capacitive cosj value is displayed on the third
display.
In the measurement mode, phase-neutral voltages can be displayed by
using UP/DOWN buttons when V LED lights. When phase voltages are
displayed, if SET button is pressed (HAR LED lights), harmonic values
up to 19th harmonic(odd-numbered) can be observed.
Cosj and HAR LEDs on the display indicate that the displayed values
are harmonic values of the related cosj. By pressing the SET button
repeatedly, odd-numbered harmonic values up to 19th harmonic can be
observed.
V and HAR LEDs on the display indicate that displayed values are voltage
harmonic values. By pressing the SET button repeatedly, THD and odd-
numbered harmonic values up to 19th harmonic can be observed as %.
Currents
SPowers
Cosj
Energies
Active (W)
THD%I
-
-
Voltage
Apparent (VA)
SCosj
THD%V
-
-
-
-
-
-
L
N
Reactive (VAr)
Temperature
-
-
POWER FACTOR CONTROLLER
RG3-12C/CS
28
-.912
0.973
0.945
Total Cosj
1.000
-.947
225.5
2
28.7
2
23.4
