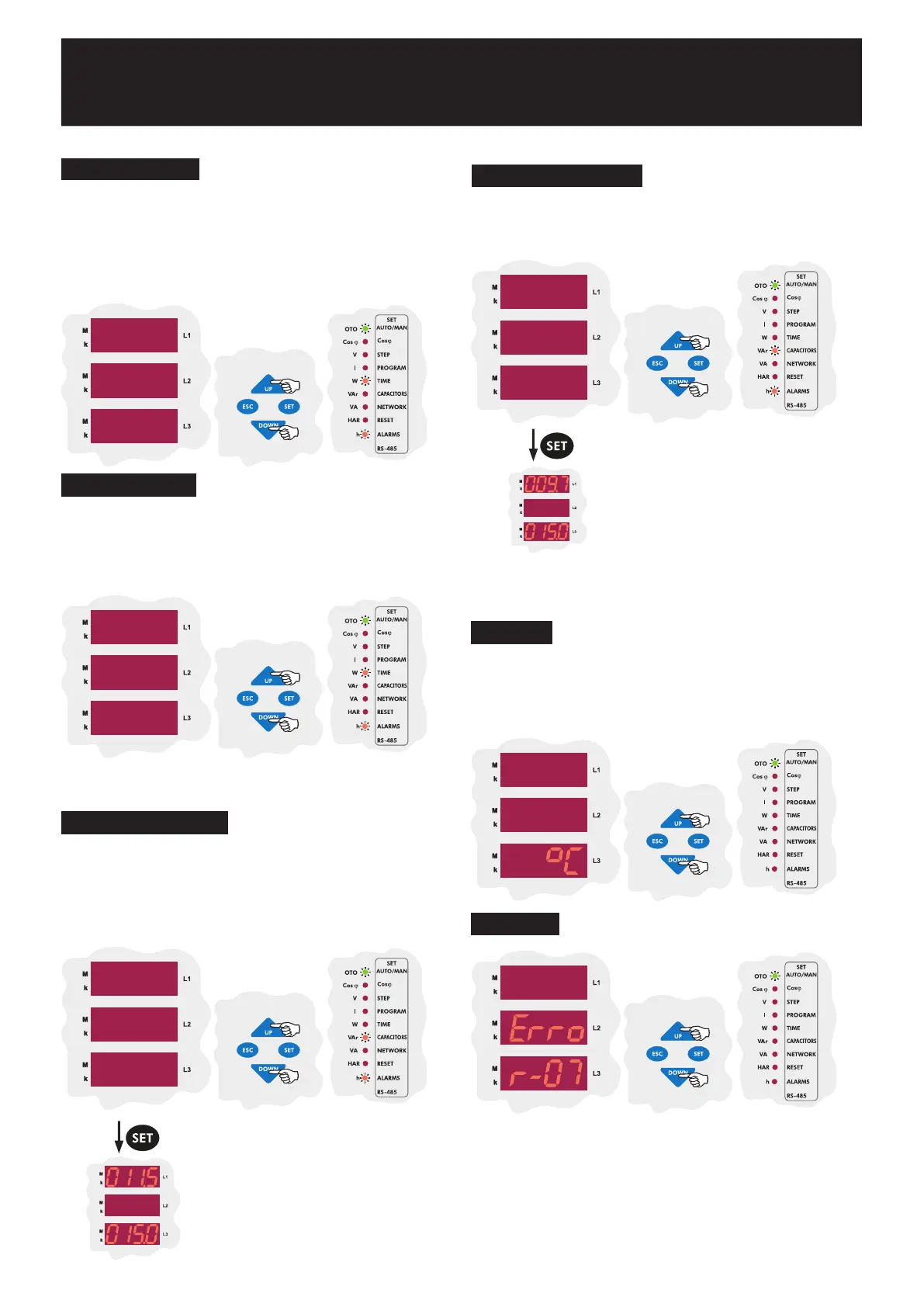

Entes RG3-12C - Active Import Energy, Active Export Energy, Inductive Reactive Energy, Capacitive Reactive Energy, Temperature, Error Codes

Note : When you reset the energies using the energy counter reset
menu, active and reactive energy values are both reset
(Refer to Page 14 - Reactive / Active ratio reset settings).
Capacitive Reactive Energy
Temperature
On the first display, the measured Inductive/Active
ratio is displayed and on the third display, the
entered Inductive/Active ratio is displayed.
(Refer to page 18 - Inductive ratio setting)
In the example below, E indicates that the displayed parameter is
export(capacitive) energy and the remaining numbers show the energy
value(such as 4035386,2 kVArh).
The temperature value which is measured via externally connected
thermocouple is displayed on the display.
Below; the display indicates that measured temperature is 45°C.
Note: This feature is optional.
On the first display, the measured
Capacitive/Active ratio is displayed and on the
third display, the entered Capacitive/Active ratio
is displayed.
(Refer to page 17 - Inductive ratio setting)
Note: When you reset the reactive/active ratio, the value in the first
display will be reset and updated continiously.
(Refer to page 14 - Reactive/Active ratio setting)
In the measurement mode, active import and active export energy values
can be observed by using UP/DOWN buttons, when W and h LEDs light.
In the example below, I indicates that the displayed parameter is import
energy and the remaining numbers show the energy value(such as
203385706,8 kWh).
While active import energy is displayed, if the DOWN button is pressed,
active export energy is displayed.
In the example below, E indicates that the displayed parameter is export
energy and the remaining numbers show the energy value(such as 45168,3
kWh).
In the measurement mode, inductive reactive and ca pacitive reactive
energy values can be observed by using the UP/DOWN buttons when
VAr and h LEDs light.
In the example below, I indicates that the displayed parameter is import
energy(inductive) and the remaining numbers show the energy value
(such as 7649,3 kVarh).
Error Codes
Note : The descriptions of the error codes are given in the alarm codes
table(Refer to Page 31 - Alarm Codes).
POWER FACTOR CONTROLLER
RG3-12C/CS
Active Import Energy
1-20
3385
706.8
Active Export Energy
E-00
0045
168.3
Inductive Reactive Energy
1-00
0007
649.3
E-00
4035
386.2
45
31
If any failure occurs for any reason, related Alarm LED is
turned on. If the related error code needs to be displayed by
the user, the UP/DOWN buttons are pressed until Error-
xx is displayed on the displays. This option is not displayed
if there is no error. All the error codes are displayed respectively
by pressing the SET button
(such as Error-05, 07, 12).
