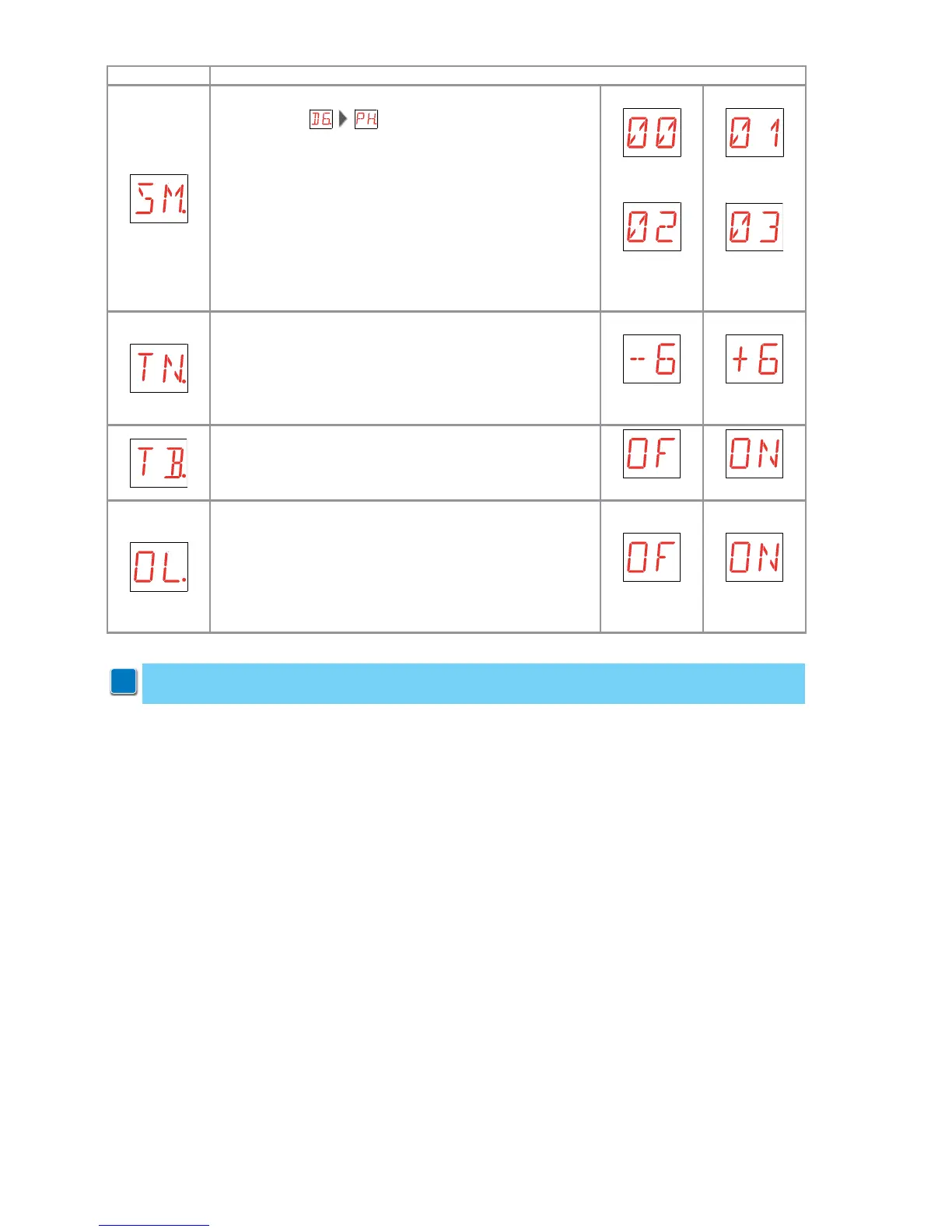

Display Description
SM - Selection of the operating mode of photocell terminals
1-6. (only with ).
00 - During manoeuvre, the opening of the safety contact
stops movement with disengagement.
01 - During manoeuvre, the opening of the safety contact
stops movement with disengagement. When the contact
is reclosed the interrupted manoeuvre resumes.
02 - During manoeuvre, the opening of the safety contact
stops movement with disengagement. When the contact
is reclosed an opening manoeuvre starts.
03 - During a closing manoeuvre, the opening of the safety
contact reverses the movement.
STOP +
DISENGAGE
STOP +
OPENING
STOP +
RESUME
REVERSE
CLOSING
TN - Setting intervention temperature for NIO anti-freeze
system. [°C]
Adjustment of the working temperature of the control
panel.
DOES NOT refer to outside temperature.
-6 ºC +6 ºC
TB - View control panel temperature.
DO NOT USE
OFF ON
OL - Selecting open gate indicator light mode.
When set ON, the light is switched off when automation is
closed; it is switched on when automation is open and during
the opening and closing phases.
When set OFF the light is switched off when automation is
closed; it is switched on when automation is open , it flashes
during the opening and closing phases.
FLASHING ON
i
WARNING: it is possible that, owing to the type of automation and control panel, certain
menus are not available.
