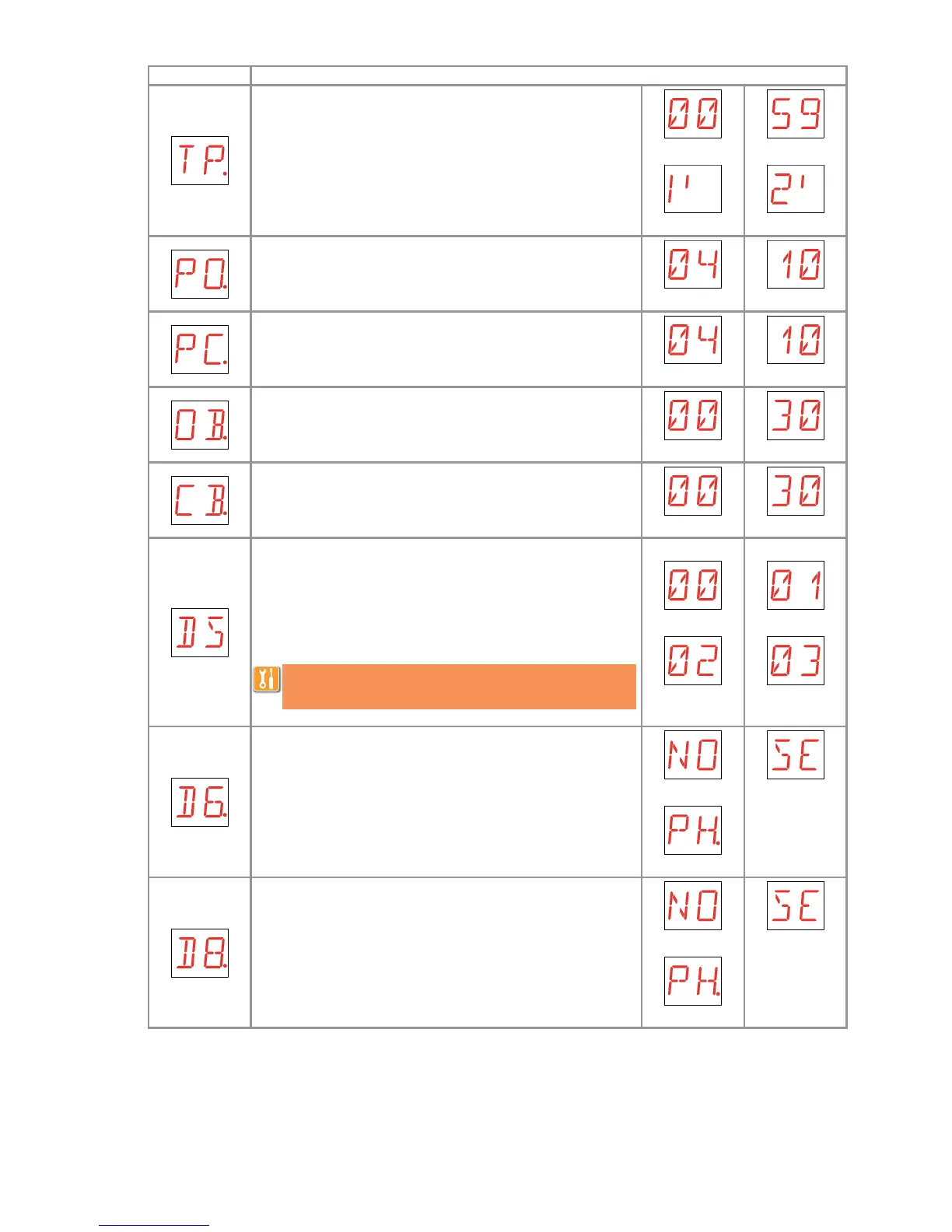

Display Description
TP - Setting of automatic closing time after partial ope-
ning. [s]
Adjustment occurs with intervals of varying sensitivity.
- from 0 to 59 sec with 1 sec intervals;
- from 1 to 2 min with 10 sec intervals.
0 SECONDS
1 MINUTE
59 SECONDS
2 MINUTES
PO - Approaching/deceleration speed during opening. [V]
MIN MAX
PC - Approaching/deceleration speed during closing. [V]
MIN MAX
OB - Deceleration/braking time during opening. [s]
MIN MAX
CB - Deceleration/braking time during closing. [s]
MIN MAX
DS - Setting of display viewing mode.
00 - No display
01 - Commands and safety devices with radio test (see
paragraph 10.2)
02 - Automation status (see paragraph 10.1)
03 - Commands and safety devices (see paragraph 10.2)
NONE
STATUS
RADIO TEST
COMMANDS
D6 - Selecting device connected to terminals 1-6.
NO - None
SE - Safety edge
PH - Photocells
NONE
PHOTOCELLS
EDGE
D8 - Selecting device connected to terminals 1-8.
NO - None
SE - Safety edge
PH - Photocells
NONE
PHOTOCELLS
EDGE
NOTE: setting 01 allows to view the reception of a radio
transmission for checking its range.
