3 Installation Guide
EMW90HDNC1A Air-cooled Chiller
13

Before disposing of the packaging materials,
please make sure that there are no loose parts
in the packaging materials. In order to protect
the environment, it is recommended to recycle
the packaging boxes.
3.2.2 Tools Preparation
Before installation and maintenance, please
prepare not limited to the commonly used tools
listed in Table 3-2. On-site technicians can
increase or decrease them according to the
actual situation.

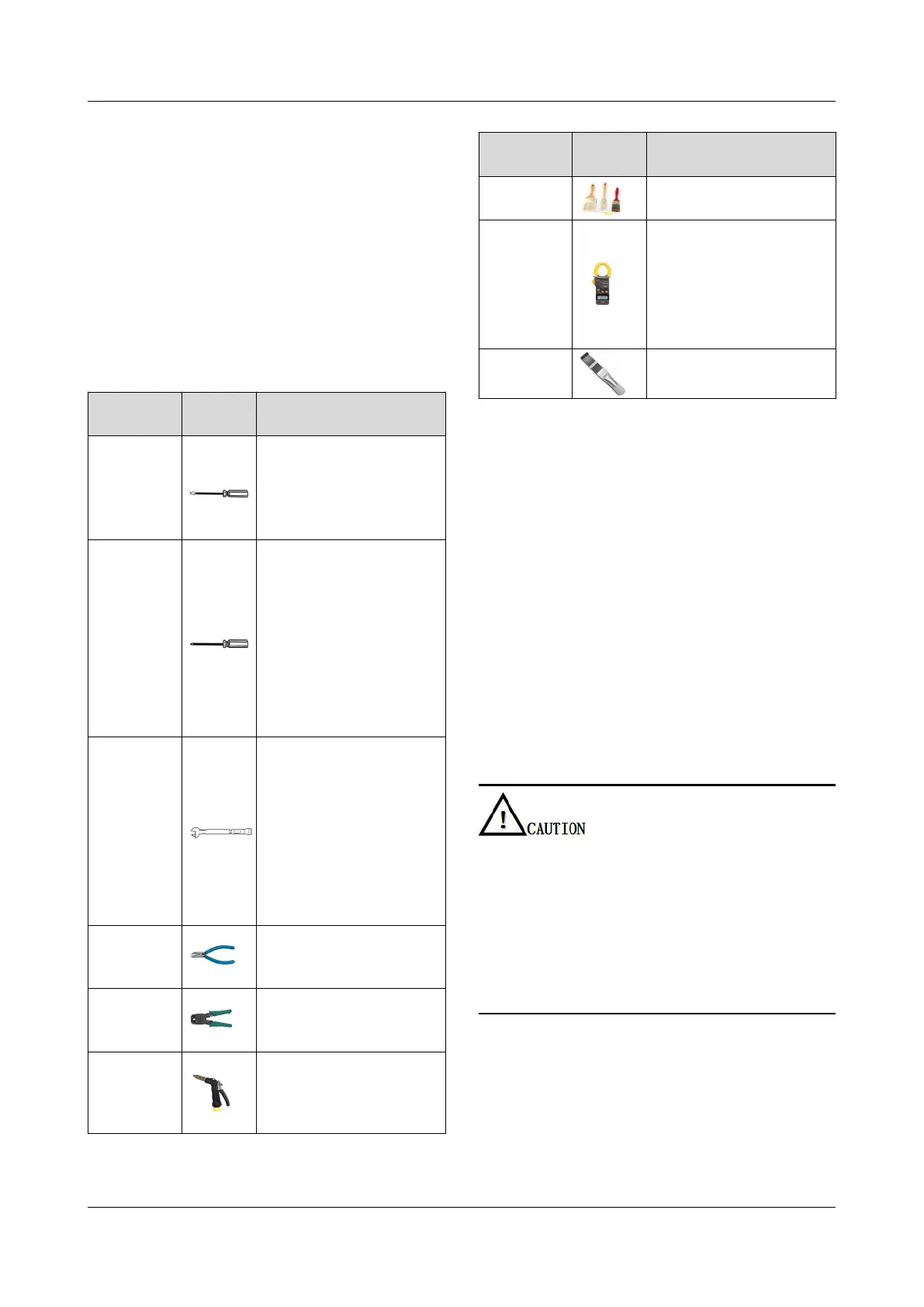

Table 3-2 Commonly used tools
Tool
Icon
Function
Flat-blade
screwdriv
er
(2mm×75
mm)
A flat-blade screwdriver
installs or removes the
connecting wires of the
controller, etc.
Phillips
screwdriv
er
(M3/M4/M
5/M6)
Phillips screwdriver is
used to install or
remove screws for
other parts.
Recommended
tightening torques are
as follows:
M3: 0.5N.m, M4:
1.2N.m, M5: 2.7N.m,
M6: 4.2N.m
Torque
wrench
(Setting
value:
5~25N.m,
scale:
0.25N.m)
Used for disassembly
and assembly of
screws and pipeline
connection, etc.

Tightening torque of
screws: 13N.m (M8)

Tightening torque of
chuck connection:
10N.m
Diagonal
pliers
Process the cables and
remove the cable ties
on site.
Crimping
pliers
On-site processing of
cables and crimping of
various terminals.
Condense
r special
cleaning
water gun
Clean the condenser of
the air conditioning
system.
Tool
Icon
Function
Brush
Clean up dust.
Clamp
ammeter

Check the working
voltage and current
on site.

Check the internal
power distribution
voltage and current.
Fin comb
Corrects bent and
deformed fins.
3.3 Mechanical
Installation
Prerequisites

The installation location of the chiller has been
reasonably planned by referring to 3.1.2
Physical Dimension, 3.1.3 Installation
Environment and 3.1.4 Installation Layout.

The packaging of the chiller has been
disassembled, and the installation tools and
accessories listed in the packing list are ready.

The coolant pipelines (diameter: DN28,
pipeline pressure ≥ 3.5bar) have been
prepared.
Precautions

To avoid condensation, use insulated and thermal
insulated pipes for connection.

The coolant inlet and outlet of the chiller adopts quick
joints, and the specifications of the connecting pipes
must conform to the specifications of the coolant inlet
and outlet ports.

It is suggested to install a stop valve between the inlet
and outlet connecting pipes of the chiller and the
equipment to be cooled, so as to maintain the chiller or
the equipment to be cooled later.
Procedure
Step 1 Use a forklift and other equipment to
transport the chiller to the planned
installation area.
Step 2 Use a Phillips screwdriver and M6
combination screw to fix the chiller with
the planned mounting bracket.
