EOS EMOTEC HCS 9003 - Sensor Connection; Connection of the Vaporizer

12
GB
Ub G E
142°C
KTY 10/5
KTY 10/5
X4
P+
TEMP.-SENSOR
Nr. 2
Nr. 1
TEMP.-
LIMITER
H-SENSOR
Ub
E G
X3
X2X1
L1 L2 L3 N
N
N
U
V
W
WB
S1
FAN
LIGHT
WM
L N L N
400 V 3 N AC 50 Hz
3 kW
TB
WbWmN
max. 100 W
max. 100 W
P max. 9 kW
CAUTION
When connecting the vapori-
zer the output “W” is switched from
the sauna heater to the terminal
“Wb” to the vaporizer.
In this case, the sauna heater heats
only with two thirds of the power.

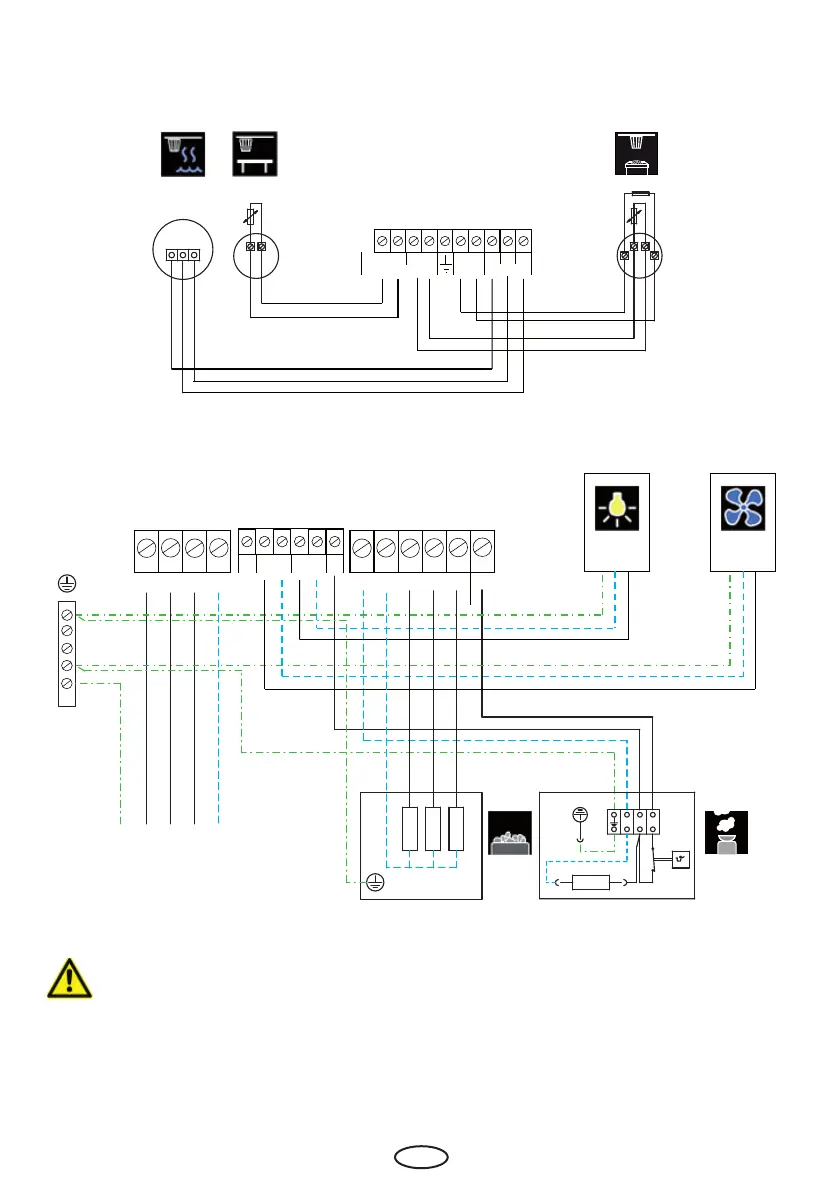

Sensor connection
Connection of the vaporizer
