10.1 Disassembling Front Head - Male
1.

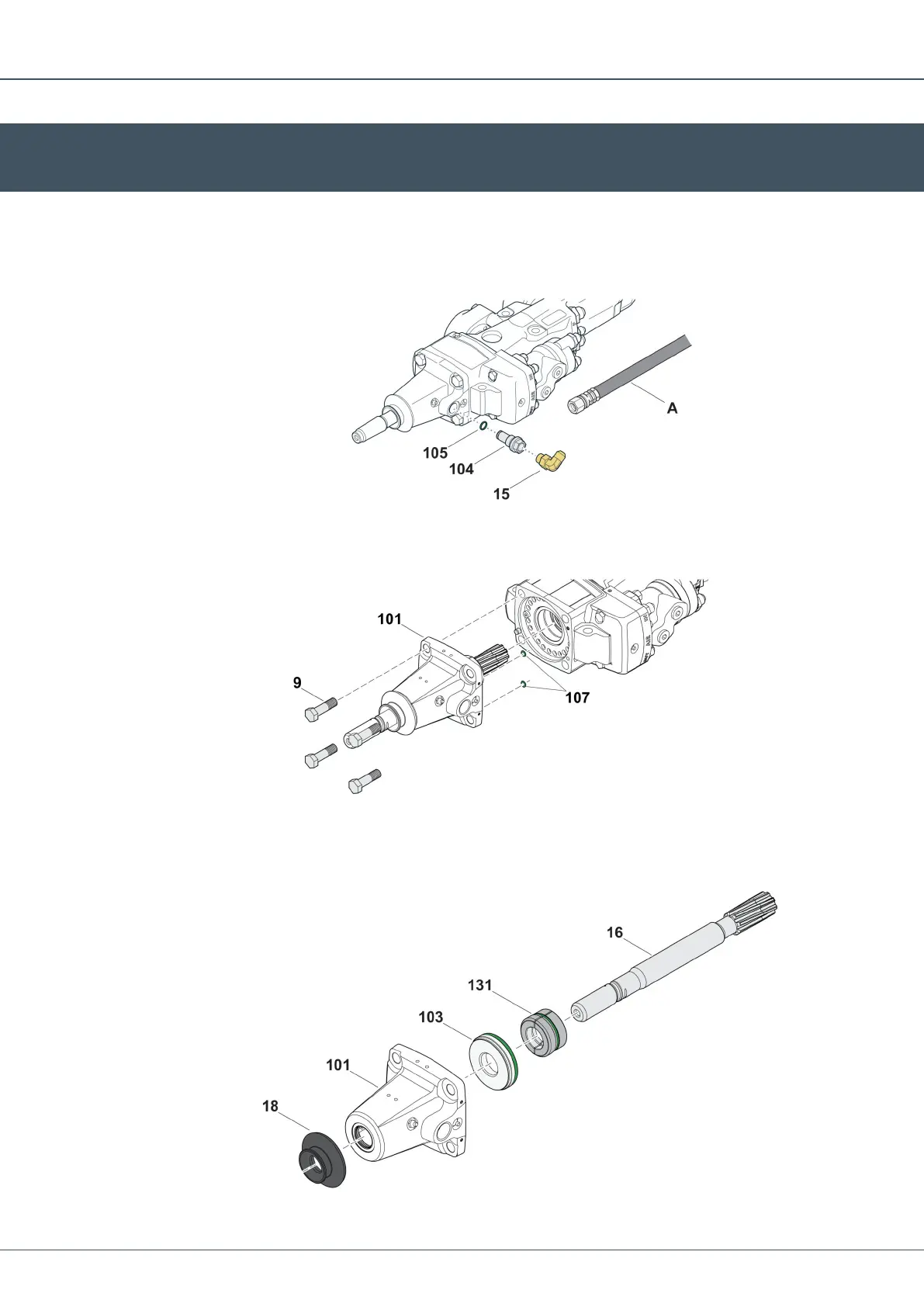

Remove the flushing hose (A).
a.
Remove the nipple (15), flushing adapter (104), and o-ring (105).
2.
Remove the four screws (9).
a.
Remove the front head (101) together with o-rings (107) by pulling the shank
adapter and tapping the front head with a plastic mallet.
3.
Remove the shank adapter (16), stop ring (131), washer (103), and drill collar (18).
