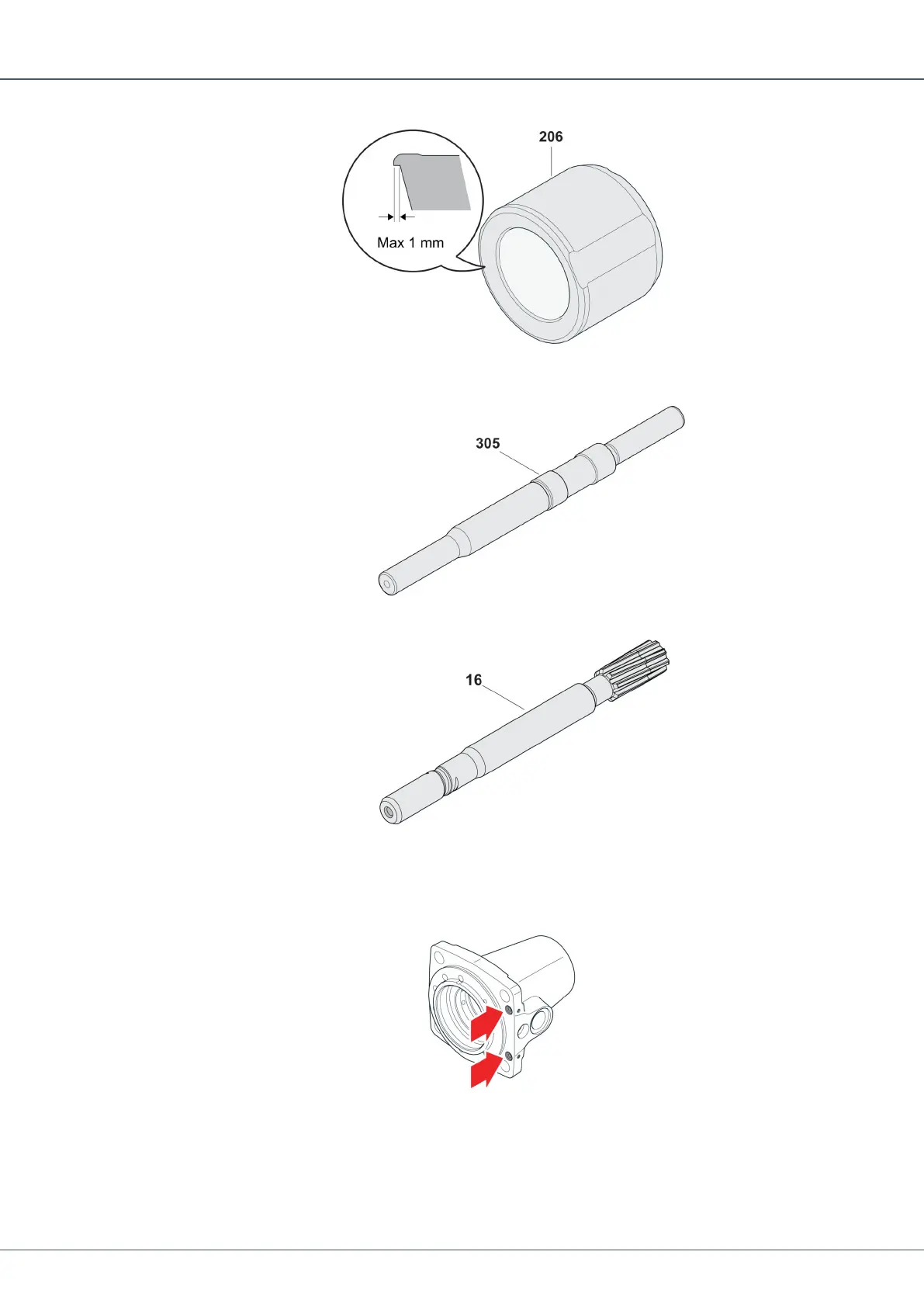

Inspect the impact piston (305) impact surface. If damages in any way, the Rock
Drill must be sent for overhaul. See chapter Rock Drill Overhaul.
7.
Replace the shank adapter (16) if:
a.
The threads or splines is worn out.
b.
The impact surface is crushed or chipped.
8.
Clean lubrication channels with compressed air.
10.4 Assembling Front Head Seals and O-Rings - Male
1.
Lubricate and install the wiper (108) according to the figure in the front guide (102)
sealing groove.
