Epiroc COP RR14 - Assembling Front Head - Male

Hydraulic Rock Drill COP RR14 / SC14 Ver. C 10 Front Head
43 No: 4124851851.2.9007203379904011 en-US
2.

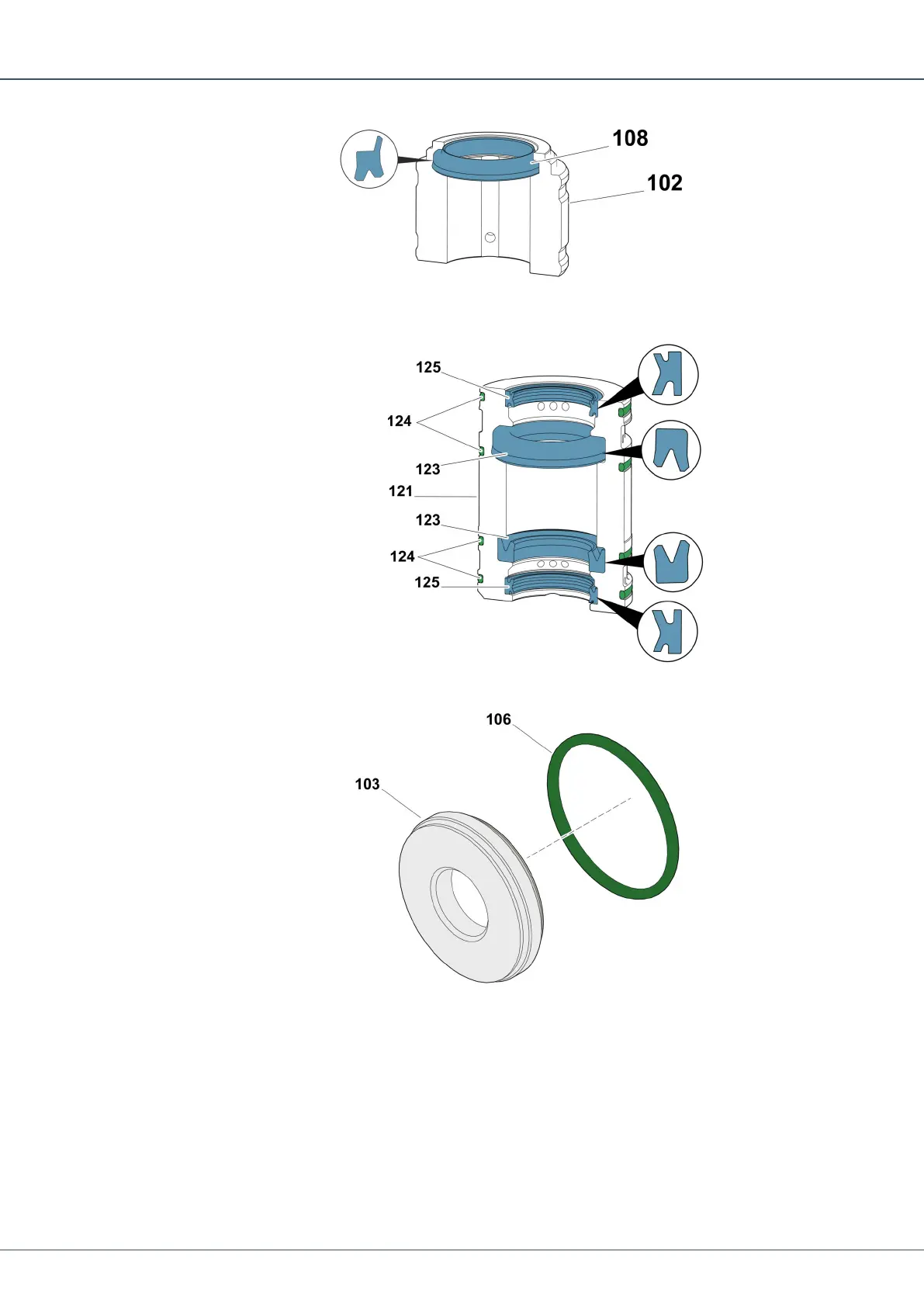

Lubricate and install the wipers (125), cup seals (123), and O-rings (124) according to
the figure in the flushing head (121).
3.
Lubricate the O-ring (106) and install to the washer (103).
10.5 Assembling Front Head - Male
1.
Use tool A5 to press in the guide (102).
