Hydraulic Rock Drill COP RR14 / SC14 Ver. C 10 Front Head
52 No: 4124851851.2.9007203379904011 en-US

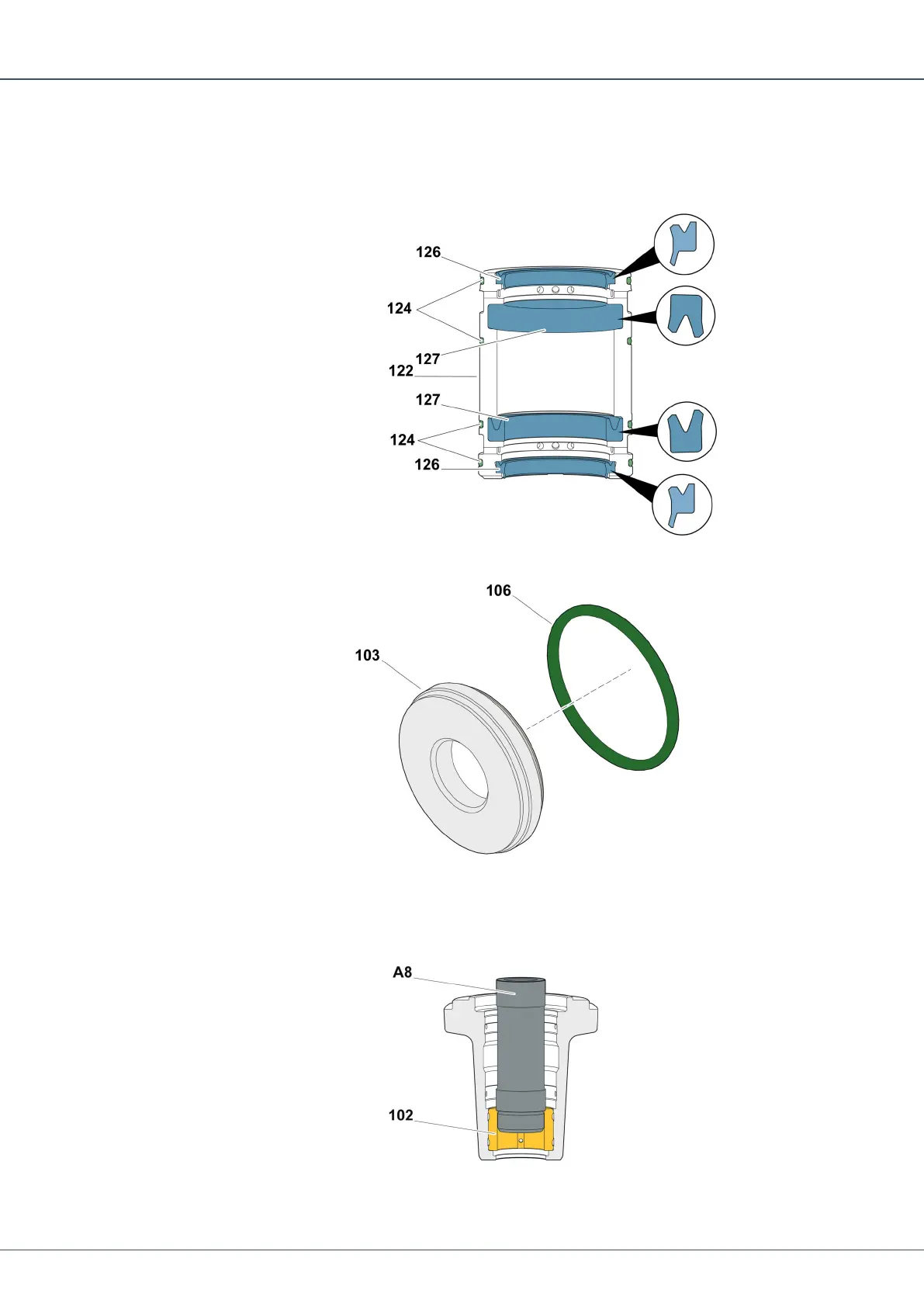

10.9 Assembling Front Head Seals and O-Rings - Female
1.
Lubricate the wipers (126), cup seals (127), and O-rings (124) and install in accor-
dance with the figure in the flushing head (122).
2.
Lubricate the O-ring (106) and install to the washer (103).
10.10 Assembling Front Head - Female
1.
Lubricate the guide (102).
a.
Use tool (A8) to press in the guide (102).
