Epiroc COP RR14 - Front Head Assembly - Female (Continued)

Hydraulic Rock Drill COP RR14 / SC14 Ver. C 10 Front Head
53 No: 4124851851.2.9007203379904011 en-US
2.

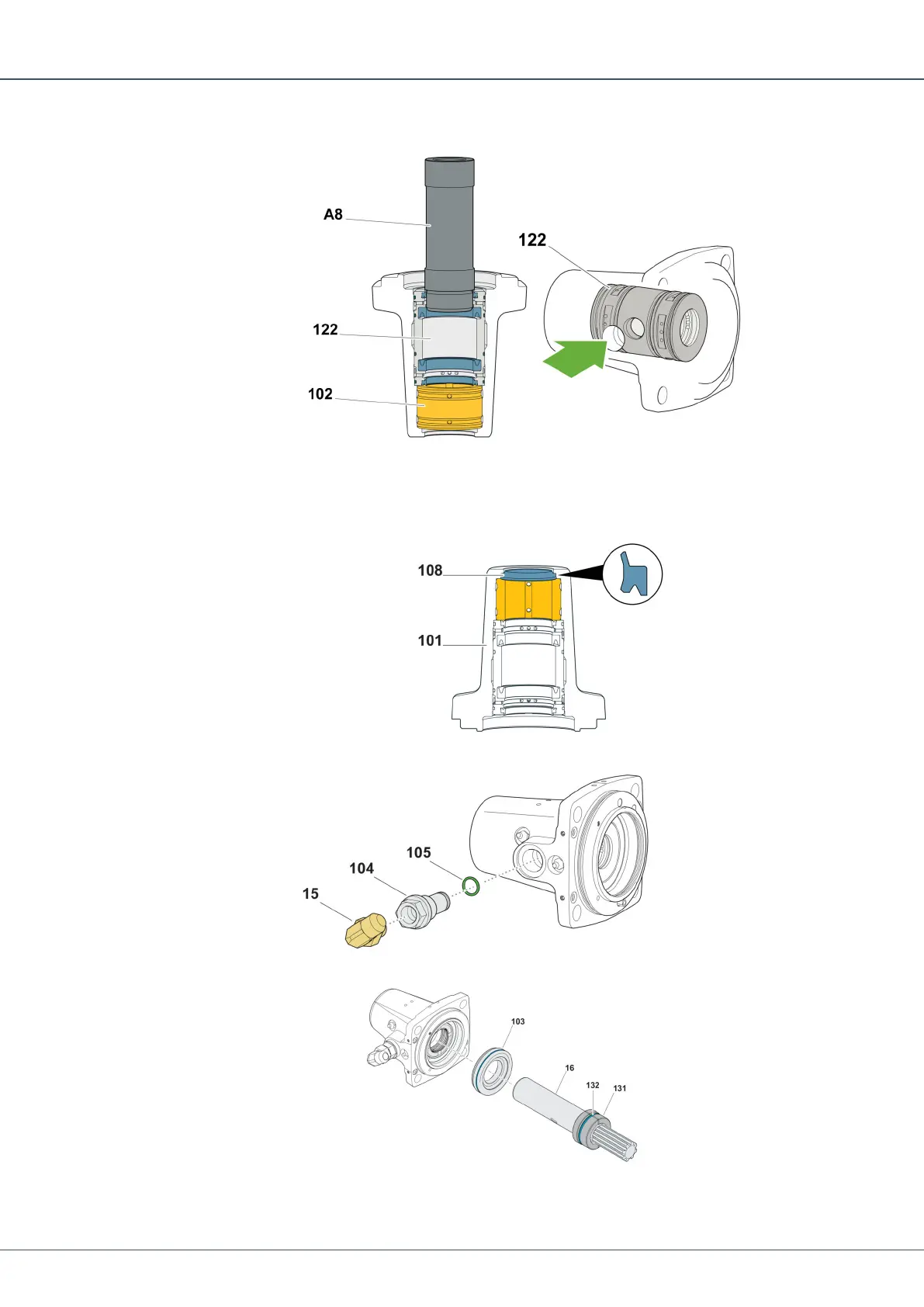

Lubricate the flushing head (122).
a.
Align the flushing head with the front head hole, use tool A8 to press in the flush-
ing head. Make sure that the flushing holes align with the front head.
3.
Lubricate and install wiper (108) in accordance with the figure.
4.
Install o-ring (105), flushing adapter (104), and nipple (15).
5.
Install the washer (103).
a.
Install stop ring (131), and o-ring (132) on the shank adapter (16).
