Epiroc COP RR14 User Manual

Hydraulic Rock Drill COP RR14 / SC14 Ver. C 10 Front Head
38 No: 4124851851.2.9007203379904011 en-US
4.

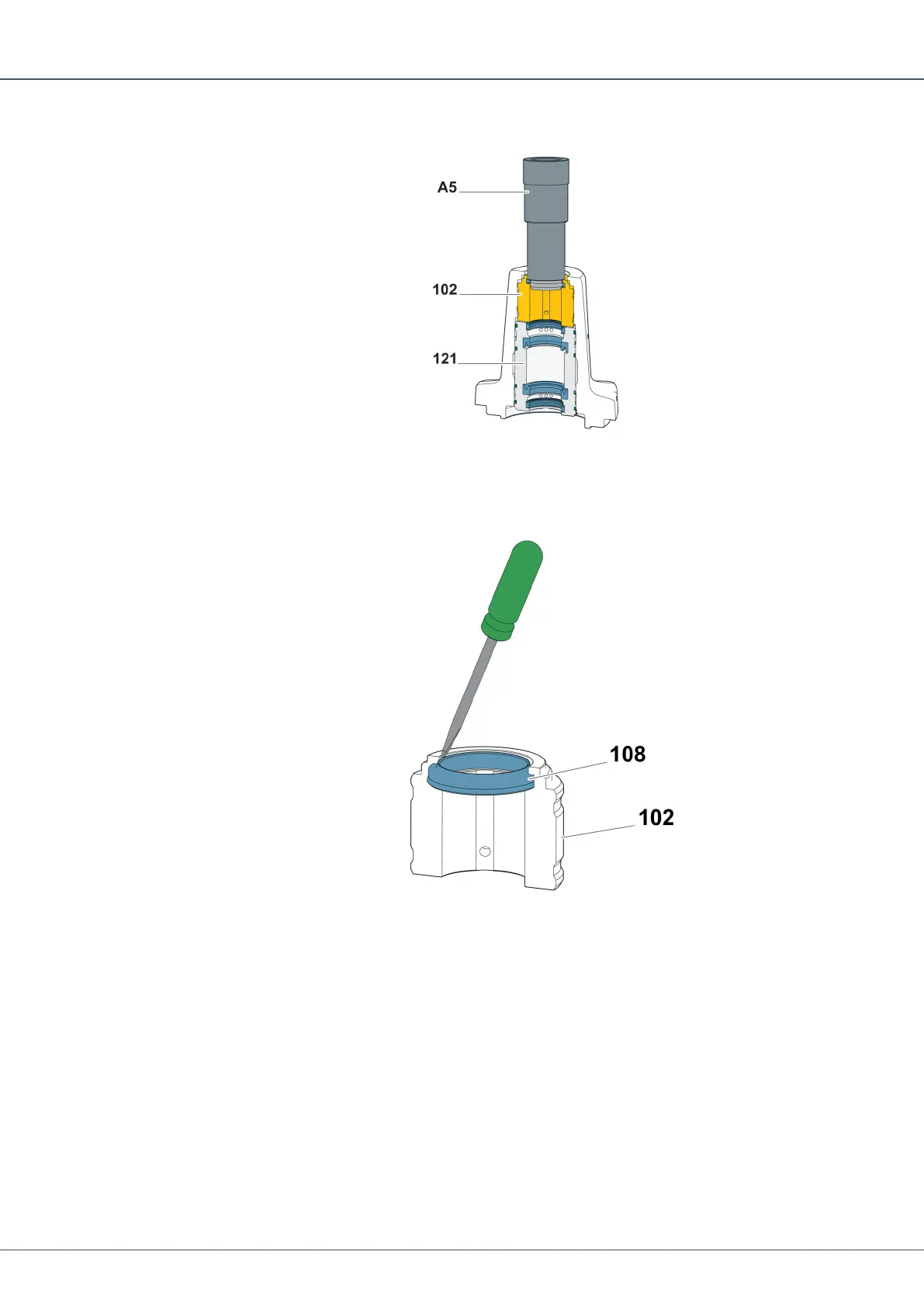

Use tool (A5) to press out the guide (102) and flushing head (121).
10.2 Disassembling Front Parts Seals and O-Rings - Male
1.
Use a pointed tool to remove the wiper (108) carefully from the front guide (102).
2.
Use a pointed tool to remove the wipers (125), cup seals (123), and O-rings (124)
carefully from the flushing head (121).
