Installing the Film Adapter
Follow the steps below to install the Film Adapter on the scanner.
1. Make sure the scanner is turned off.
2. Remove the document cover from the scanner by opening it
and pulling it straight up. (See page 4-6)

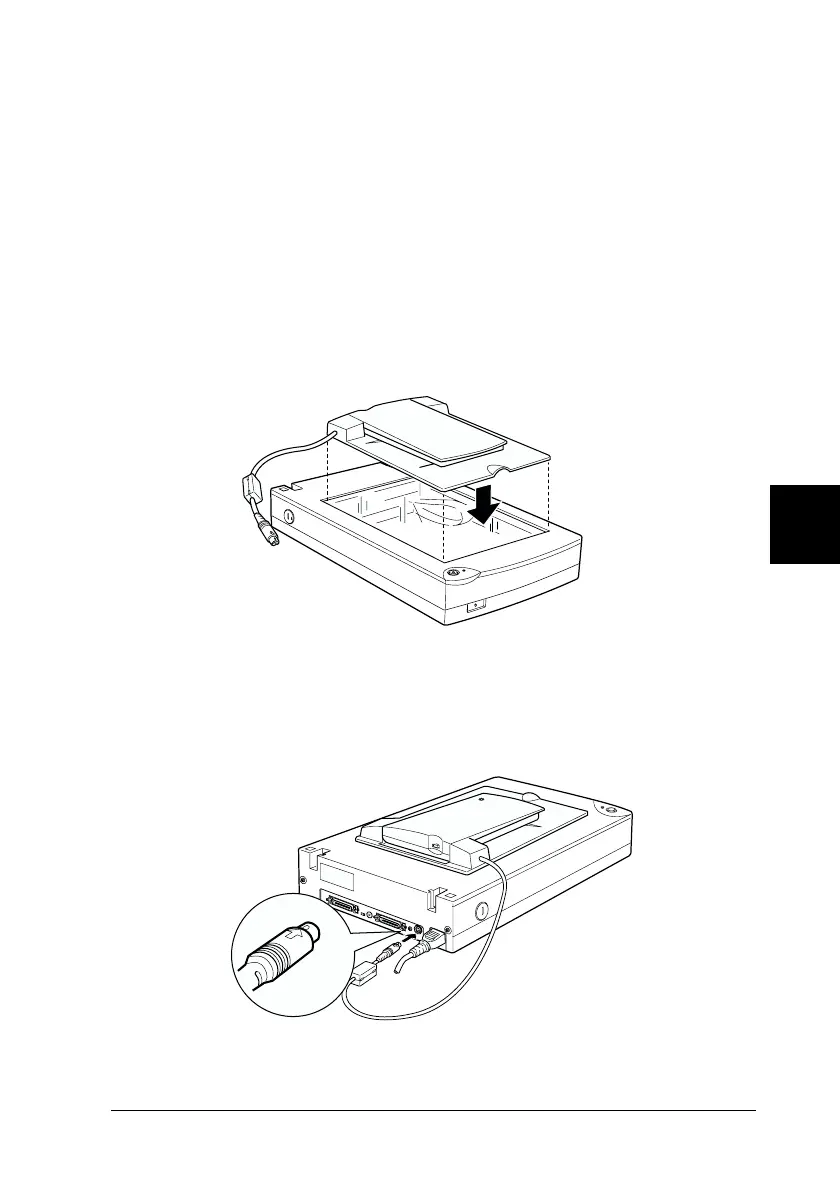

3. Place the Film Adapter on the document table so that the
hinges face the rear of the scanner and it fits on the table.
4. Connect the Film Adapter connector to the scanner’s option
connector.
