6

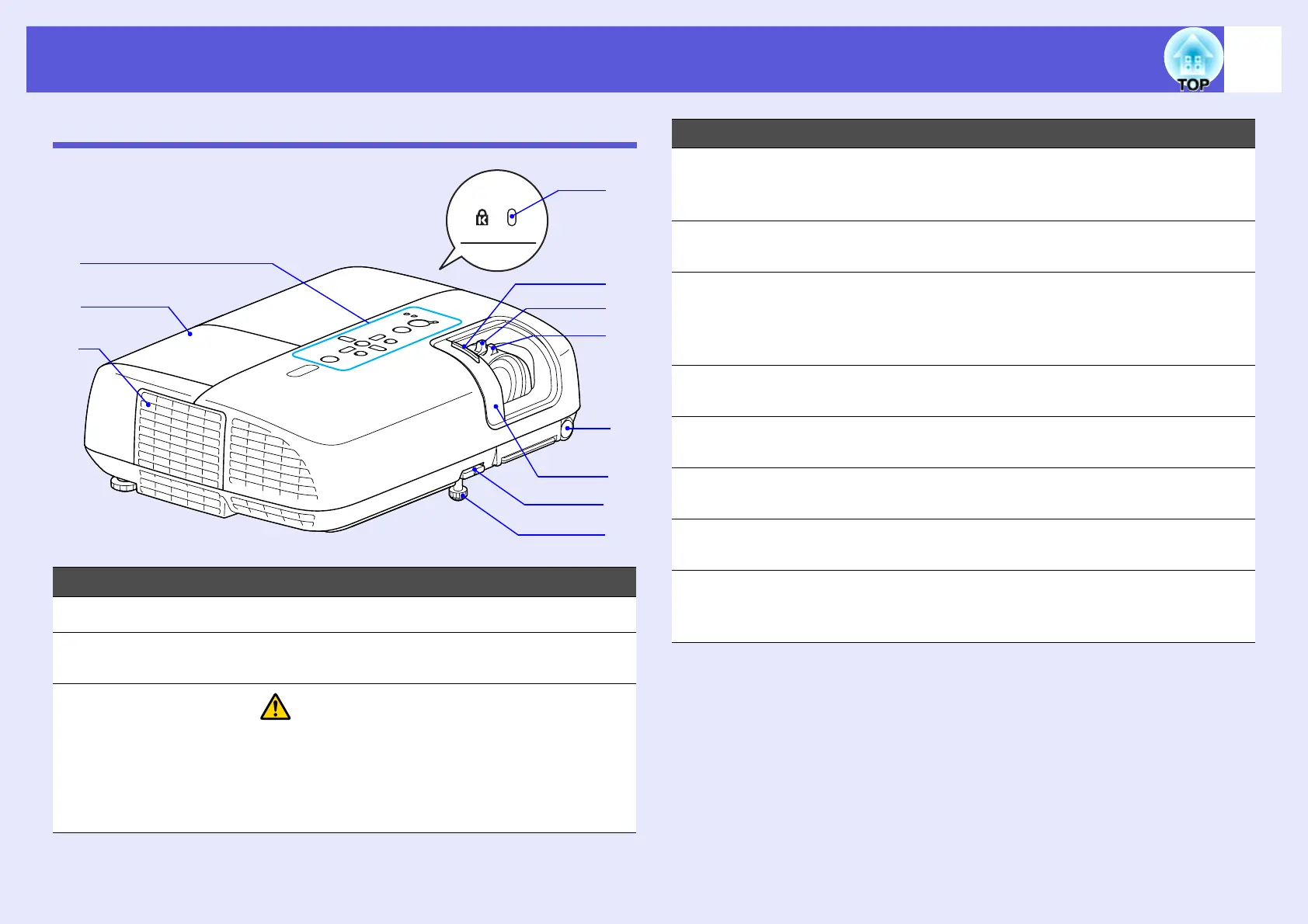

Part Names and Functions
Front/Top
Name Function
A
Control panel s p.9
B
Lamp cover Open this cover when replacing the projector's
lamp. s p.68
C
Air exhaust vent
Caution
Do not place objects that may become warped
or otherwise affected by heat near the air
exhaust vent and do not put your face or
hands near the air exhaust vent while
projection is in progress.
F
A
K
B
J
E
D
H
I
G
C
D
Front adjustable
feet
Extend and adjust the position of the projected
image when the projector is placed on a
surface such as a desk. s Quick Start Guide
E
Foot adjust lever Pull out the foot lever to extend and retract the
front foot. s Quick Start Guide
F
A/V mute slide Slide shut when not using the projector to
protect the lens. By closing during projection
you can hide the image and the sound (A/V
Mute). s Quick Start Guide, p.22
G
Remote receiver Receives signals from the remote control.
s Quick Start Guide
H
Focus ring Adjusts the image focus. s Quick Start
Guide
I
Zoom ring
(EB-W6/X6 only)
Adjusts the image size. s Quick Start Guide
J
A/V mute slide
knob
Slide the knob to open and close the A/V mute
slide.
K
Security slot (j) The security slot is compatible with the
Microsaver Security System manufactured by
Kensington. s p.35
Name Function
