Part Names and Functions
8

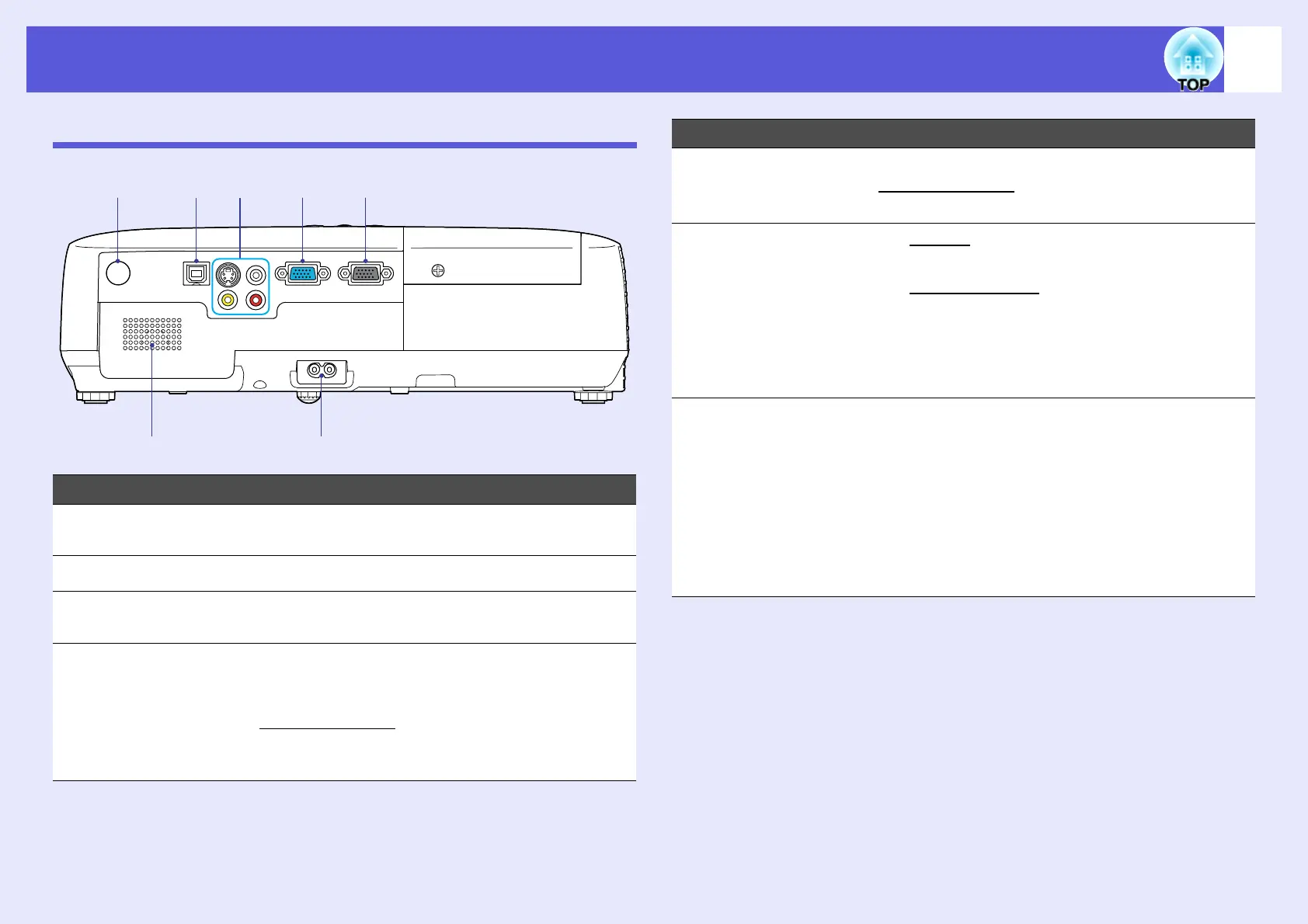

Rear (EB-X6/S6 only)
Name Function
A
Remote receiver Receives signals from the remote control.
s Quick Start Guide
B
Speaker
C
Power inlet
Connects to the power cable. s Quick Start
Guide
D
Monitor Out port Outputs the image signal from the computer
connected to the Computer input port to an
external monitor. This is not available for
component video
g signals or other signals
being input to any port other than the
Computer input port.
DE
G
A
B
F
C
E
Computer input
port
For video signals from a computer and
component video
g signals from other video
sources.
F
S-Video input
port
For S-videog signals from video sources.
Video input port
For composite videog signals from video
sources.
Audio input port Connects to the audio output port of the
equipment you want to project from and inputs
the audio. s Quick Start Guide
G
USB port (Type B) You can use a number of functions by
connecting a computer via a USB cable and
making connection settings.
• Connect to a computer by USB cable to
project images from the computer. s p.82
• You can Page Up/Down and operate a
mouse pointer using the remote control. You
can also use this port to control the projector
from a computer. s p.86
