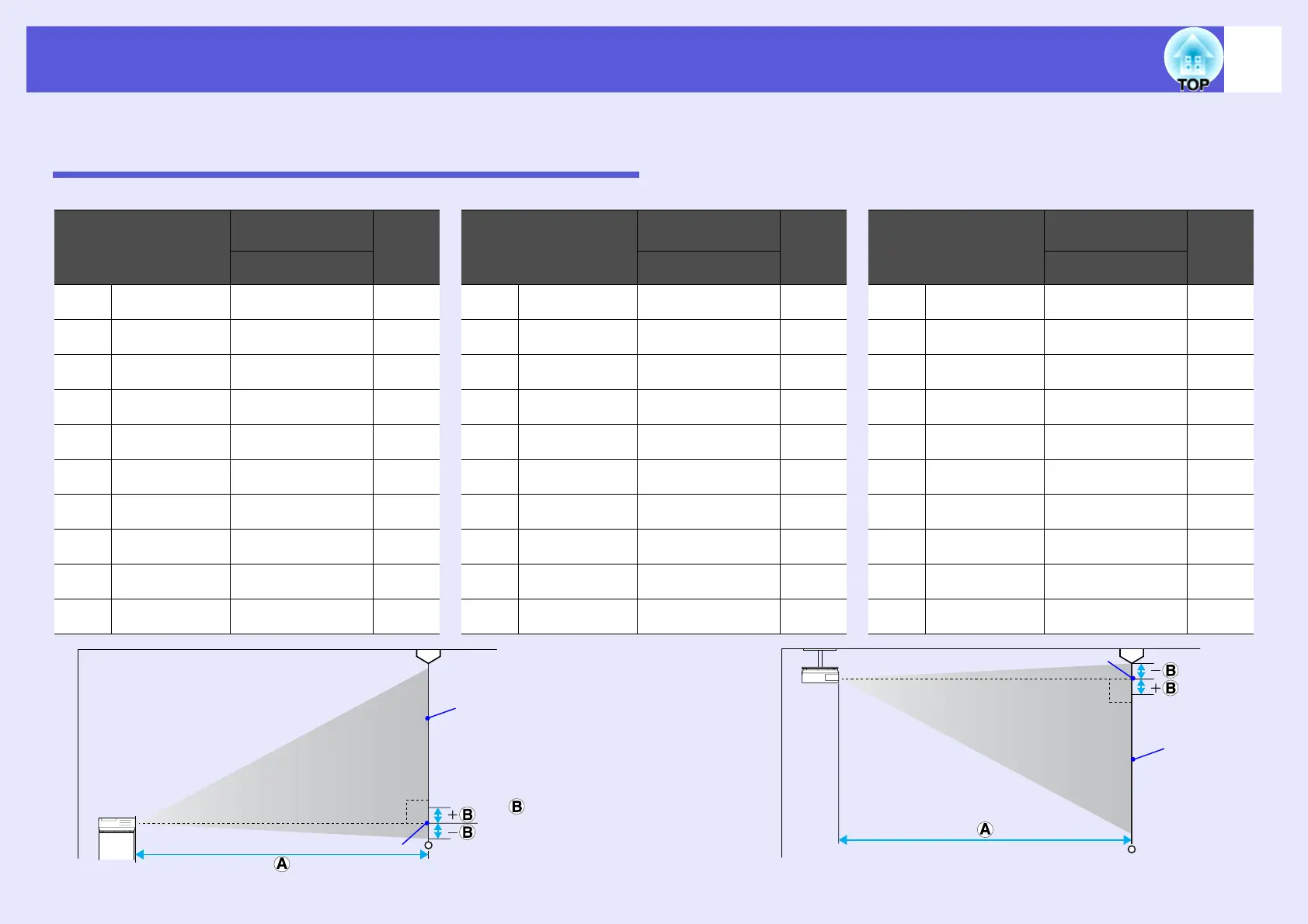

Screen Size and Distance
See the following table to choose the best position for your projector. The values are only a guide.
EB-W6
Units: cm (in.) Units: cm (in.) Units: cm (in.)
16:10 Screen Size
Projection Distance
U
V
4:3 Screen Size
Projection Distance
U
V
16:9 Screen Size
Projection Distance
U
V
Minimum (Wide) to
Maximum (Tele)
Minimum (Wide) to
Maximum (Tele)
Minimum (Wide) to
Maximum (Tele)
30"
65 ^ 40
(26 ^ 16)
94 to 113
(37 to 45)
0
(0)
30"
61 ^ 46
(24 ^ 18)
106 to 129
(42 to 51)
0
(0)
30"
66 ^ 37
(26 ^ 15)
96 to 116
(38 to 46)
+2
(+0.8)
40"
86 ^ 54
(34 ^ 21)
126 to 152
(50 to 60)
0
(0)
40"
81 ^ 61
(32 ^ 24)
143 to 173
(56 to 68)
0
(0)
40"
89 ^ 50
(35 ^ 20)
130 to 156
(51 to 62)
+3
(+1.1)
50"
110 ^ 67
(43 ^ 26)
158 to 191
(62 to 75)
0
(0)
50"
100 ^ 76
(39 ^ 30)
180 to 217
(71 to 85)
0
(0)
50"
110 ^ 62
(43 ^ 24)
163 to 196
(64 to 77)
+3
(+1.4)
60"
130 ^ 81
(51 ^ 32)
191 to 230
(75 to 90)
0
(0)
60"
120 ^ 91
(47 ^ 36)
216 to 260
(85 to 103)
0
(0)
60"
130 ^ 75
(51 ^ 30)
196 to 236
(77 to 93)
+4
(+1.6)
80"
170 ^ 110
(67 ^ 43)
255 to 307
(101 to 121)
0
(0)
70"
140 ^ 110
(55 ^ 43)
253 to 304
(100 to 120)
0
(0)
70"
150 ^ 87
(59 ^ 34)
229 to 276
(90 to 109)
+5
(+1.9)
100"
220 ^ 130
(87 ^ 51)
320 to 385
(126 to 152)
0
(0)
80"
160 ^ 120
(63 ^ 47)
290 to 348
(114 to 137)
0
(0)
80"
180 ^ 100
(71 ^ 39)
263 to 316
(103 to 124)
+6
(+2.2)
120"
260 ^ 160
(102 ^ 63)
385 to 463
(152 to 182)
0
(0)
100"
200 ^ 150
(79 ^ 59)
363 to 436
(143 to 172)
0
(0)
100"
220 ^ 120
(87 ^ 47)
329 to 396
(130 to 156)
+7
(+2.7)
150"
320 ^ 200
(126 ^ 79)
482 to 579
(190 to 228)
0
(0)
150"
300 ^ 230
(118 ^ 91)
546 to 656
(215 to 258)
0
(0)
150"
330 ^ 190
(130 ^ 75)
495 to 596
(195 to 234)
+10
(+4.1)
200"
430 ^ 270
(169 ^ 106)
644 to 774
(253 to 305)
0
(0)
200"
410 ^ 300
(161 ^ 118)
729 to 876
(287 to 345)
0
(0)
200"
440 ^ 250
(173 ^ 98)
662 to 795
(261 to 313)
+14
(+5.5)
250"
540 ^ 340
(213 ^ 134)
806 to 968
(317 to 381)
0
(0)
235"
480 ^ 360
(189 ^ 142)
857 to 1030
(338 to 406)
0
(0)
260"
580 ^ 320
(228 ^ 126)
861 to 1035
(339 to 407)
+18
(+7.1)
Screen
Center of lens
90°
90°
Center of lens
Screen
is the distance from the lens
center to the bottom of the screen
(top of the screen when hung from
the ceiling).
