Projector Parts and Functions
10
The following sections explain the projector parts and their functions.
gg Related Links
• "Projector Parts - Front" p.10
• "Projector Parts - Rear" p.11
• "Projector Parts - Base" p.12
• "Projector Parts - Top" p.13
• "Projector Parts - Remote Control" p.14

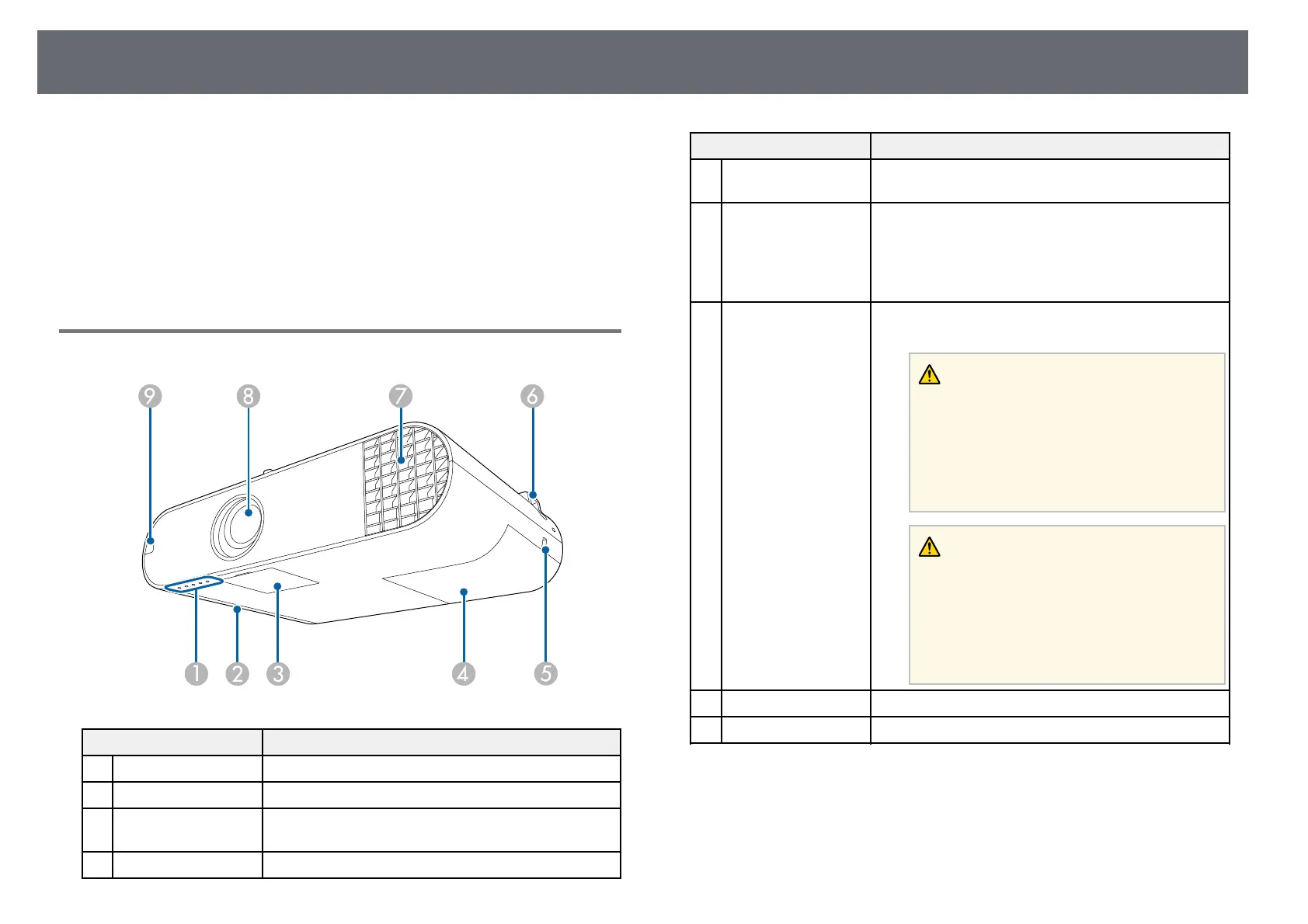

Projector Parts - Front
Name Function
A
Indicators Indicates the projector's status.
B
Air filter cover Open to access the air filter.
C
Power button cover Open to access the power button, zoom ring, and focus
ring.
D
Lamp cover Open to access the projector's lamp.
Name Function
E
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
F
Security cable
attachment point
Pass a commercially available wire lock through here
and lock it in place.
You can also attach the optional safety wire here to
prevent the projector from falling from the ceiling or
wall.
G
Air exhaust vent Exhaust vent for air used to cool the projector
internally.
Warning
Do not look into the vents. If the lamp
explodes, gases may escape and small
fragments of glass may be scattered which
could cause an injury. Contact a doctor if any
fragments of broken glass are inhaled or get
into the eyes or mouth.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
H
Lens Images are projected from here.
I
Remote receiver Receives signals from the remote control.
gg Related Links
• "Projector Indicator Status" p.166
• "Installing a Security Cable" p.83
