Projector Parts and Functions
12

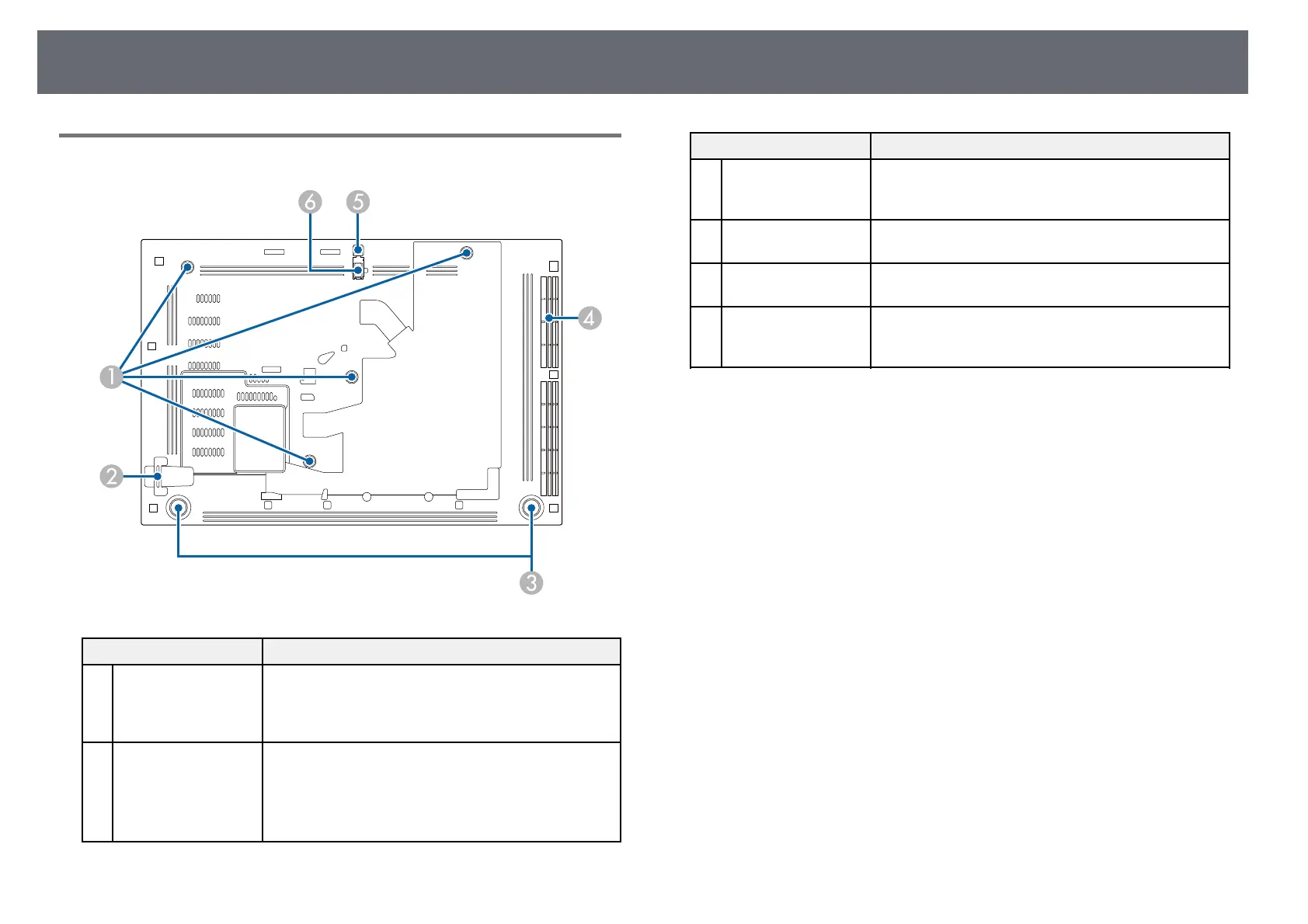

Projector Parts - Base
Name Function
A
Ceiling mount/Floor
stand fixing point or
Lighting Track Mount
fixing point
Attach the optional Ceiling mount/Floor stand or
Lighting Track Mount here.
B
Security cable
attachment point
Pass a commercially available wire lock through here
and lock it in place.
You can also attach the optional safety wire here to
prevent the projector from falling from the ceiling or
wall.
Name Function
C
Rear feet When the projector is set up on a surface such as a
desk, turn to extend and retract the feet to adjust the
horizontal tilt.
D
Air intake vent (air
filter)
Takes in air to cool the projector internally.
E
Foot release lever Press the foot release lever to extend and retract the
front adjustable foot.
F
Front adjustable foot When the projector is set up on a surface such as a
desk, extend the foot to adjust the position of the
image.
gg Related Links
• "Adjusting the Image Height" p.41
