Epson EB-U50 User Manual

Projector Parts and Functions
11

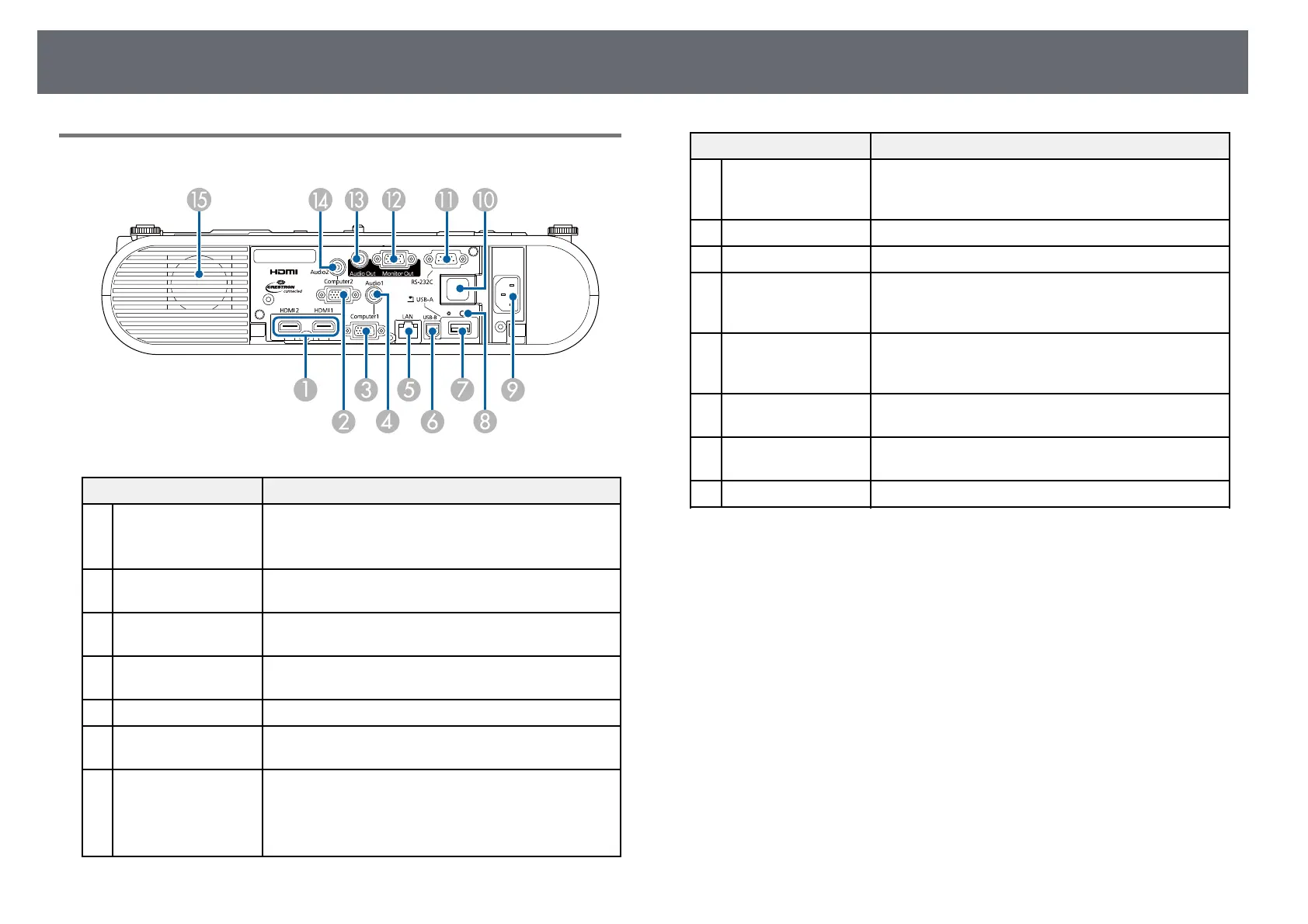

Projector Parts - Rear
Name Function
A
HDMI1, HDMI2
ports
Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDCP.
B
Computer2 port Inputs image signals from a computer and component
video signals from other video sources.
C
Computer1 port Inputs image signals from a computer and component
video signals from other video sources.
D
Audio 1 port Inputs audio from equipment connected to the
Computer1 port.
E
LAN port Connects a LAN cable to connect to a network.
F
USB-B port Connects a USB cable to the computer to project
computer images.
G
USB-A port Connects a USB memory device or a digital camera
and projects movies or images using PC Free.
Connects the optional document camera.
Connects the wireless LAN module (EB‑W50/EB‑X50).
Name Function
H
Wireless LAN module
fixing screw
(EB‑W50/EB‑X50)
Secures the wireless LAN module cover.
I
Power inlet Connects the power cord to the projector.
J
Remote receiver Receives signals from the remote control.
K
RS-232C port Connects an RS-232C cable to control the projector
from a computer. (You do not need to use this port
normally.)
L
Monitor Out port Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
M
Audio Out port Outputs audio from the current input source to an
external speaker.
N
Audio 2 port Inputs audio from equipment connected to the
Computer2 port.
O
Speaker Outputs audio.
gg Related Links
• "Projector Connections" p.20
