Basic Operations
28

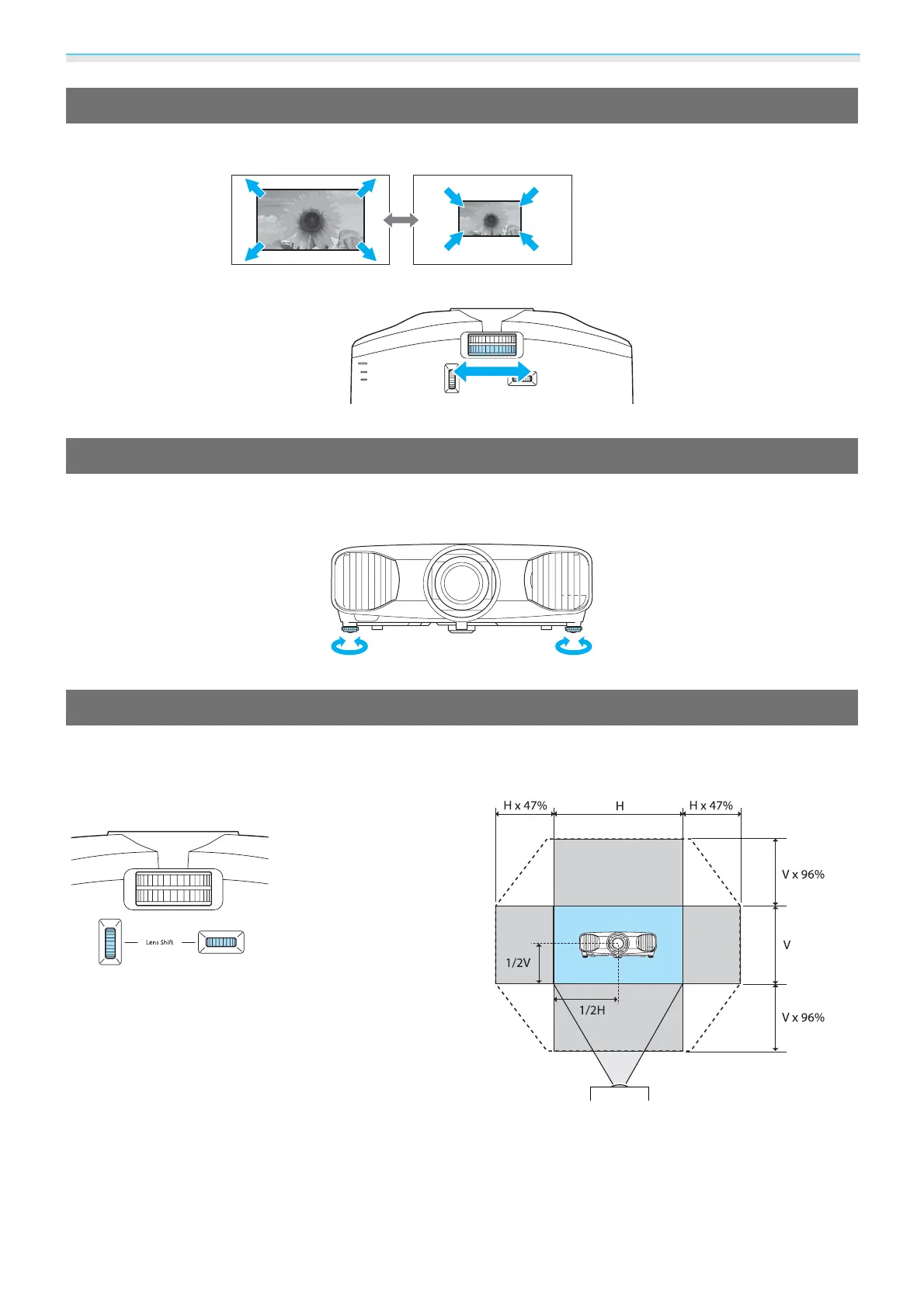

Adjusting the Projection Size (Zoom Adjustment)
Turn the zoom ring to adjust the size of the projected screen.
Adjusting the Projector's Tilt
If the projection screen is tilted (the left and right sides of the projector are at different heights) when the
projector is setup on a table, adjust the front foot so that both sides are level with each other.
Adjusting the Position of the Projected Image (Lens Shift)
If the projector cannot be setup in front of the screen, you can adjust the position of the image by using lens
shift.
Make adjustments using the lens shift dial.
You can adjust the position up, down, left, and right
within the range of the dotted line shown in the illus‐
tration on the right.
The vertical (V) position (up and down) can be adjusted
by up to 96% of the height of the screen, while the hor‐
izontal (H) position (right and left) can be adjusted by
up to 47% of the width of the screen.
To reset the image position to the center, return the dial
to the central position.
To locate the center of the lens shift range, turn the lens
shift dial until you hear it click.
