The Face-up Output Tray
5.

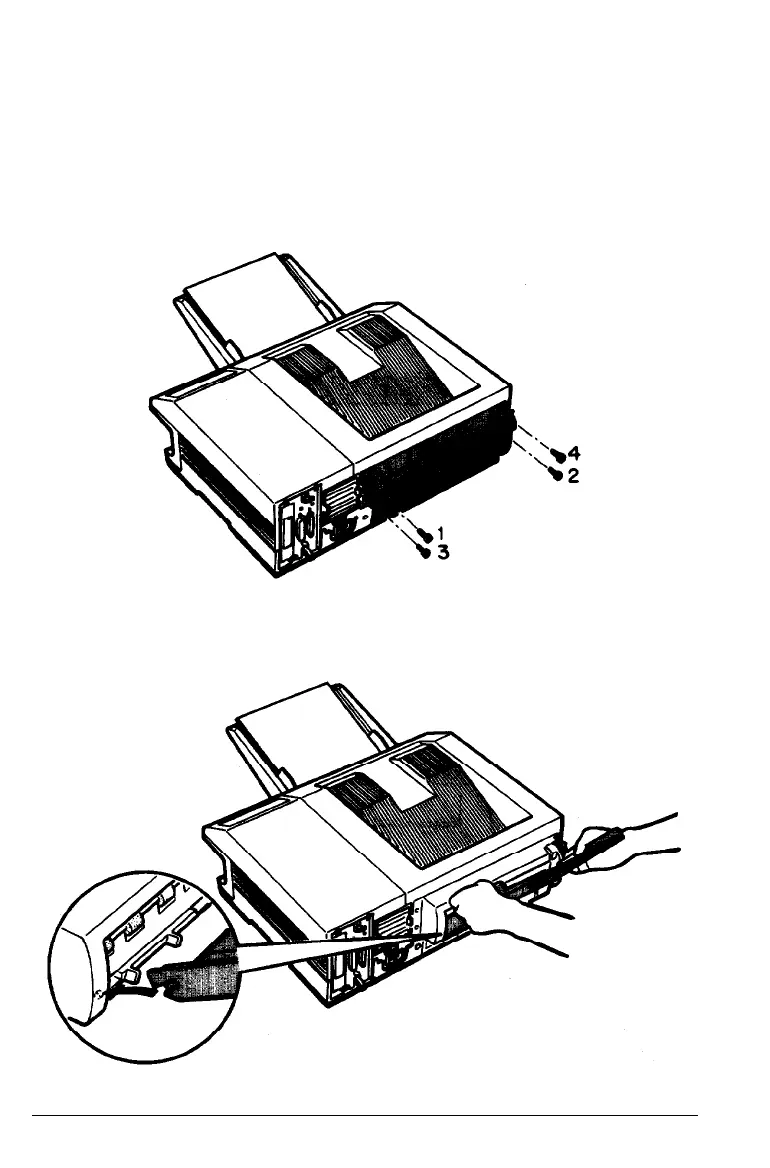

Use the screwdriver to secure the drive unit to the printer.
First, partially tighten the two diagonally positioned screws in
the sequence shown below. Repeat this gradual tightening
process until all screws are fully tightened.
6. To install the face-up tray, fit the notches of the tray over the
pins of the drive unit, as shown below.
Appendix A A-27
