Epson LabelWorks LW-600P User Manual

Editing Text Design in Label Editor
Setting Default Preferences in Label Editor
You can define default settings for the Label Editor screen, text formatting and printing options, and other
features.
1. Open the Settings menu and select Preferences.

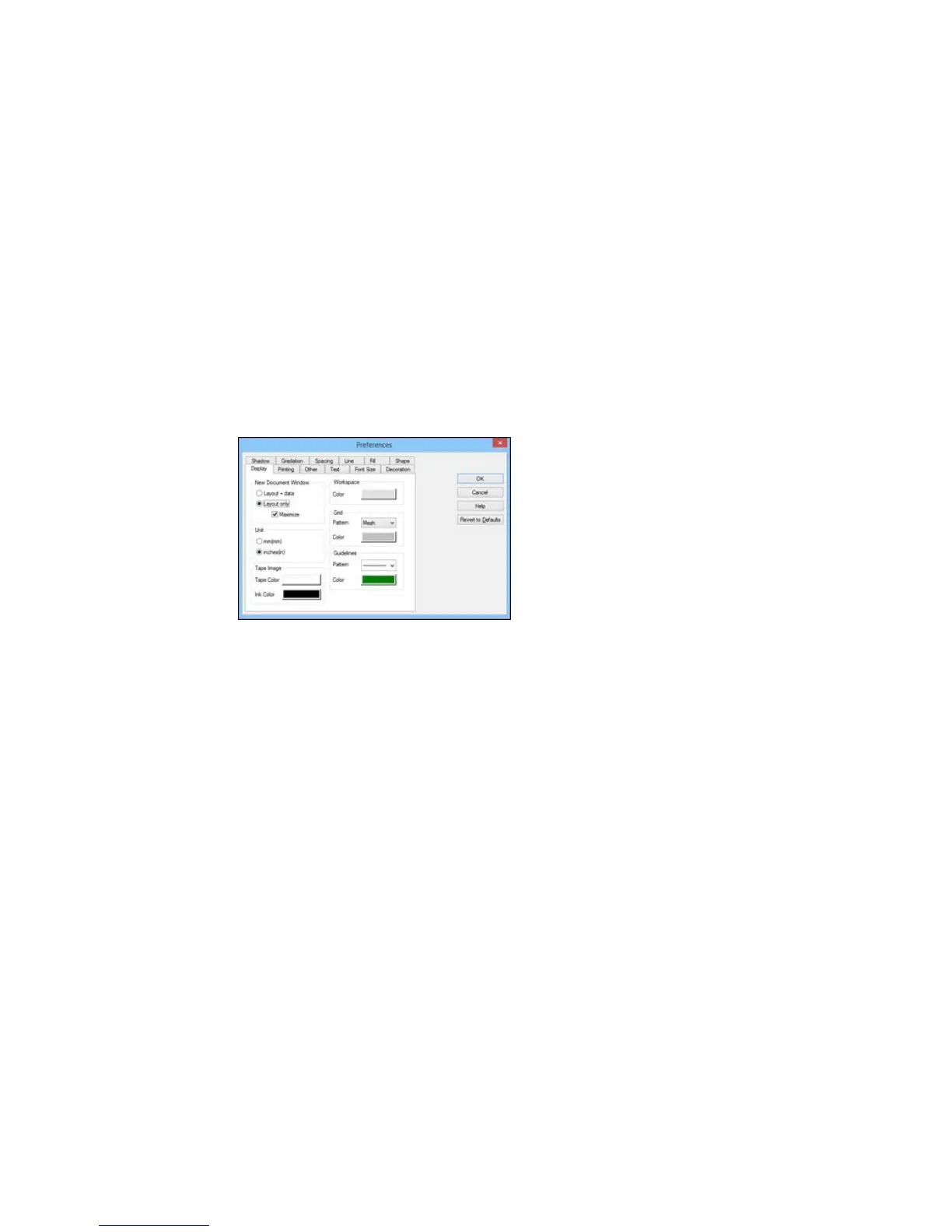

You see a window like this:
2. Select any of the tabs to display the available options.
3. Select the options you want to use as default settings.
4. To select colors, click the Color bar and select from the color chart that appears.
5. When you finish selecting default preferences, click OK.
Note: Some settings take effect immediately, some are applied to the next object you create, and
others are applied the next time you start Label Editor.
Parent topic: Designing Labels With Label Editor
Working With Blocks in Label Editor
Every element that you can add to a label is a block. You can format individual blocks of text or other
elements such as graphic symbols, dates, and tables.
1. To add a text block to a label, click the Text icon.
2. Begin typing anywhere on the workspace.
29

Epson LabelWorks LW-600P Specifications

General

Color	No
Print technology	Thermal transfer
Vertical printing	Yes
Maximum resolution	180 x 180 DPI
Built-in barcodes	Code 128 (A/B/C), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Country of origin	China
Sustainability certificates	ENERGY STAR
Product color	Black, Grey
Connectivity technology	Wired & Wireless
Pallet width	800 mm
Pallet height	710 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	210 pc(s)
Minimum order quantity	5 pc(s)
Quantity per pallet (UK)	280 pc(s)
Quantity per pallet layer	25 pc(s)
Quantity per pallet layer (UK)	40 pc(s)
Package depth	263 mm
Package width	202 mm
Package height	85 mm
Package weight	1269 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	132 mm
Width	54 mm
Height	146 mm
Weight	440 g
