Epson LabelWorks LW-600P User Manual

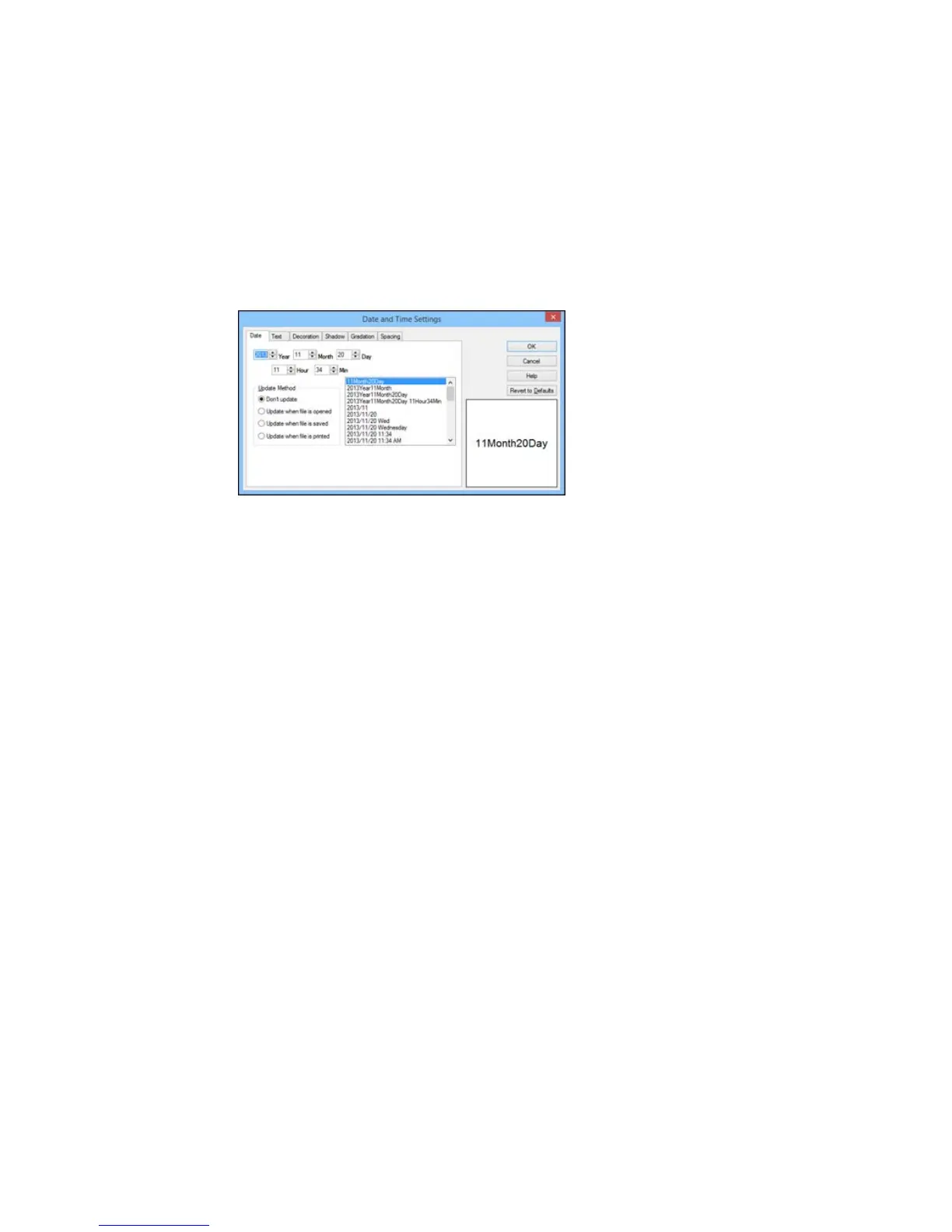

2. Select the date, update method, and display format options you want to use.
3. Select any of the tabs to display additional text formatting options.
4. Select the options you want.
5. Click OK.
You see the outline of your date block.
6. Drag the block where you want the date and/or time to appear, then click the block to display it on
your label.
7. If you need to adjust the size, click and drag one of the green handles.
Parent topic: Designing Labels With Label Editor
Related tasks
Working With Blocks in Label Editor
Editing Text Design in Label Editor
Inserting a Background Pattern in Label Editor
You can select from several background patterns for your labels and ribbons, or create your own graphic
or text background.
Note: All background elements print in light gray.
1. Open the Insert menu and select Background Pattern.
You see this window:
40

Epson LabelWorks LW-600P Specifications

General

Color	No
Print technology	Thermal transfer
Vertical printing	Yes
Maximum resolution	180 x 180 DPI
Built-in barcodes	Code 128 (A/B/C), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Country of origin	China
Sustainability certificates	ENERGY STAR
Product color	Black, Grey
Connectivity technology	Wired & Wireless
Pallet width	800 mm
Pallet height	710 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	210 pc(s)
Minimum order quantity	5 pc(s)
Quantity per pallet (UK)	280 pc(s)
Quantity per pallet layer	25 pc(s)
Quantity per pallet layer (UK)	40 pc(s)
Package depth	263 mm
Package width	202 mm
Package height	85 mm
Package weight	1269 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	132 mm
Width	54 mm
Height	146 mm
Weight	440 g
