Epson LabelWorks LW-600P User Manual

Editing Text Design in Label Editor

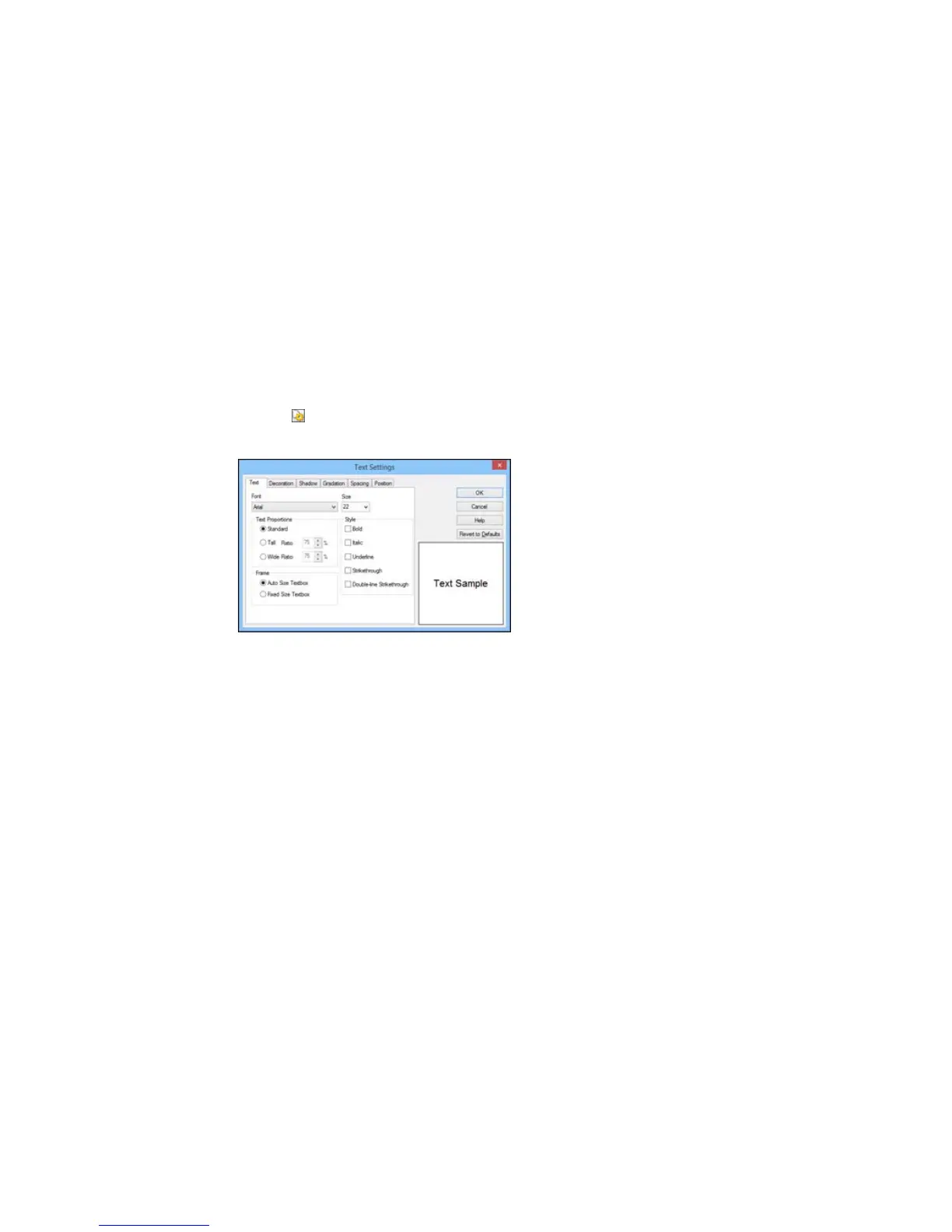

You can use the Text Settings window to apply more text formatting options to your label than those
available in the Text toolbar or Text menu.
1. Click a text block on the Label Editor main screen to select it.
You see green handles around the selected block.
2. Click the Properties icon.
You see this window:
3. Select any of the tabs to display the available options.
4. Select the options you want.
You see a preview of the text in the window.
5. When you finish selecting text settings, click OK.
Parent topic: Designing Labels With Label Editor
Creating Special Format Labels Using Label Editor
Follow the instructions in these sections to create special format labels using Label Editor.
Creating Labels from Imported Data in Label Editor
Creating Ribbons With Repeated Patterns in Label Editor
Creating Equipment Management Labels in Label Editor
Using the Label Editor Catalog
47

Epson LabelWorks LW-600P Specifications

General

Color	No
Print technology	Thermal transfer
Vertical printing	Yes
Maximum resolution	180 x 180 DPI
Built-in barcodes	Code 128 (A/B/C), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Country of origin	China
Sustainability certificates	ENERGY STAR
Product color	Black, Grey
Connectivity technology	Wired & Wireless
Pallet width	800 mm
Pallet height	710 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	210 pc(s)
Minimum order quantity	5 pc(s)
Quantity per pallet (UK)	280 pc(s)
Quantity per pallet layer	25 pc(s)
Quantity per pallet layer (UK)	40 pc(s)
Package depth	263 mm
Package width	202 mm
Package height	85 mm
Package weight	1269 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	132 mm
Width	54 mm
Height	146 mm
Weight	440 g
