Epson LabelWorks LW-600P User Manual

Printing Labels With Label Editor Lite
When you have finished designing a label, you are ready to print.
1. Click the print icon.

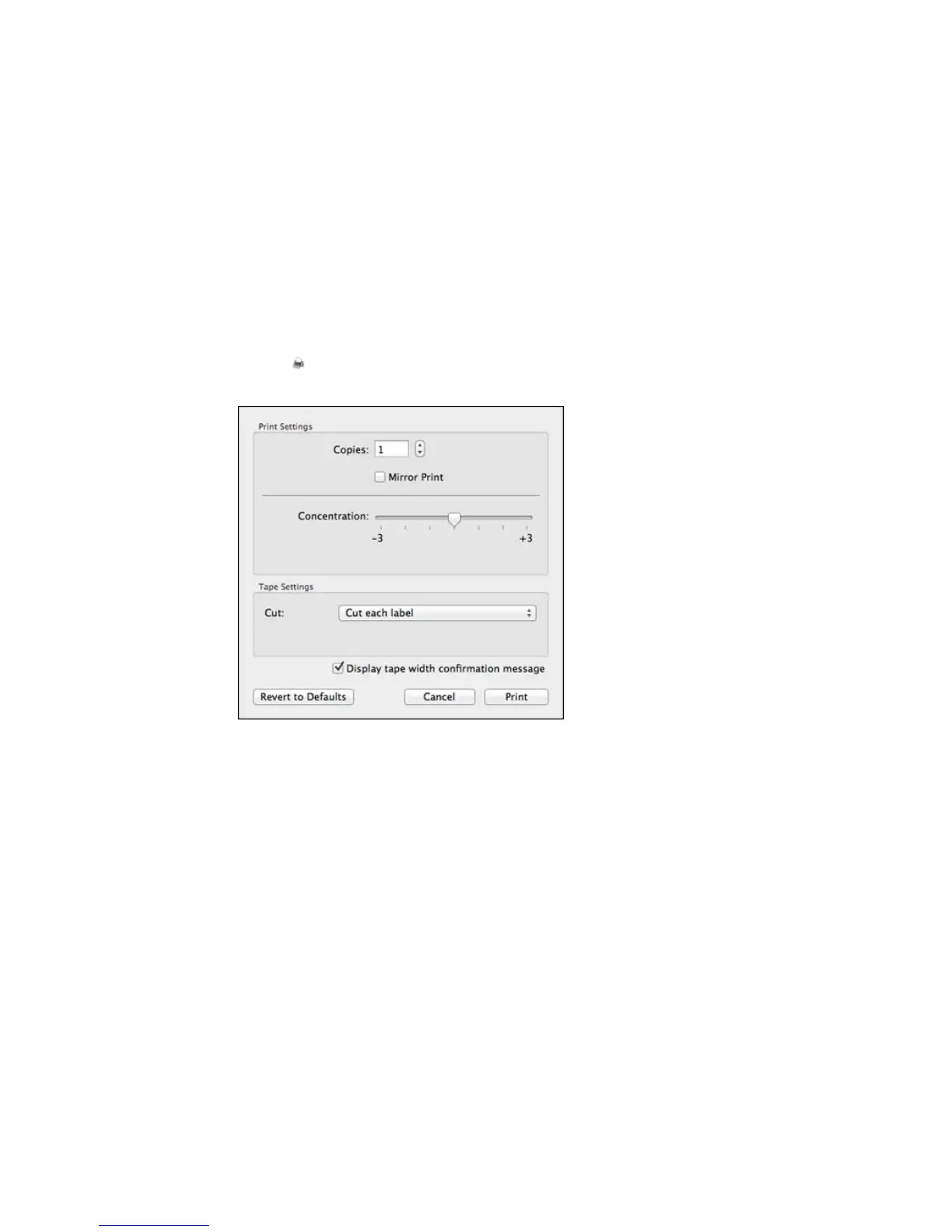

You see a window like this:
2. Select the number of copies.
3. Select the Mirror Print checkbox if you want the label to print on clear tape to be used on a
transparent surface.
4. Select the Concentration setting to decrease or increase the print density.
5. Select the Cut option you want to use.
6. Click Print.
Parent topic: Using Label Editor Lite for OS X
79

Epson LabelWorks LW-600P Specifications

General

Color	No
Print technology	Thermal transfer
Vertical printing	Yes
Maximum resolution	180 x 180 DPI
Built-in barcodes	Code 128 (A/B/C), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Country of origin	China
Sustainability certificates	ENERGY STAR
Product color	Black, Grey
Connectivity technology	Wired & Wireless
Pallet width	800 mm
Pallet height	710 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	210 pc(s)
Minimum order quantity	5 pc(s)
Quantity per pallet (UK)	280 pc(s)
Quantity per pallet layer	25 pc(s)
Quantity per pallet layer (UK)	40 pc(s)
Package depth	263 mm
Package width	202 mm
Package height	85 mm
Package weight	1269 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	132 mm
Width	54 mm
Height	146 mm
Weight	440 g
