Epson LabelWorks LW-600P User Manual

1. Click the Barcode icon.

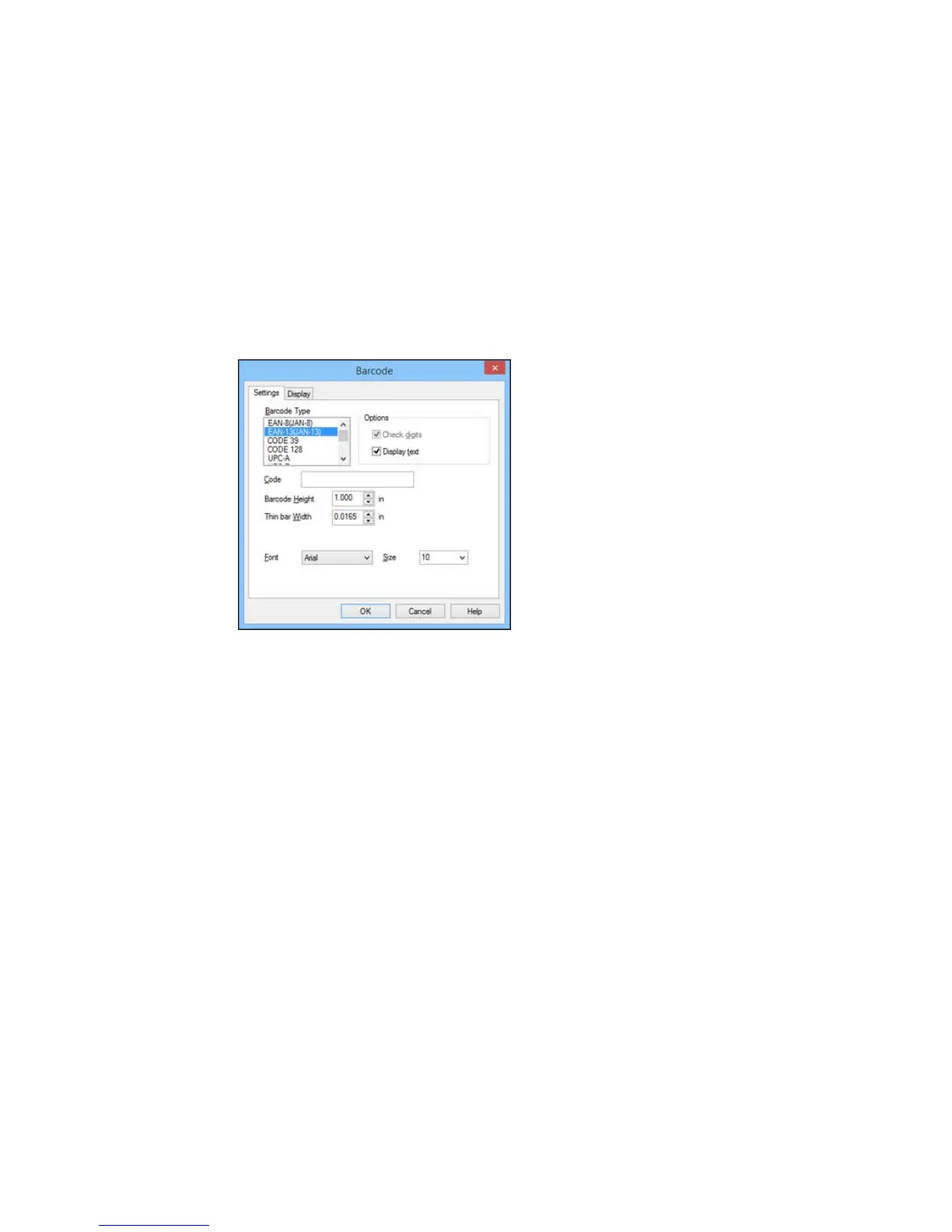

You see this window:
2. Select the type of barcode you want to create.
3. To include the code number beneath the barcode, select the Display text checkbox.
4. Enter the code number for your barcode in the Code box.
5. Enter the barcode size, positioning, and font information as necessary, and click OK.
You see a message about adding margins on the sides of your barcode.
Note: If you do not want to see this message, select the Display tab on the Barcode window and
uncheck Message On.
6. Click OK.
You see the outline of your barcode block.
7. Drag the block where you want your barcode to appear, then click the block to display it on your
label.
35

Epson LabelWorks LW-600P Specifications

General

Color	No
Print technology	Thermal transfer
Vertical printing	Yes
Maximum resolution	180 x 180 DPI
Built-in barcodes	Code 128 (A/B/C), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Country of origin	China
Sustainability certificates	ENERGY STAR
Product color	Black, Grey
Connectivity technology	Wired & Wireless
Pallet width	800 mm
Pallet height	710 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	210 pc(s)
Minimum order quantity	5 pc(s)
Quantity per pallet (UK)	280 pc(s)
Quantity per pallet layer	25 pc(s)
Quantity per pallet layer (UK)	40 pc(s)
Package depth	263 mm
Package width	202 mm
Package height	85 mm
Package weight	1269 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	132 mm
Width	54 mm
Height	146 mm
Weight	440 g
