Epson LQ-510 - Loading Continuous Paper

Using Continuous Paper
Loading Continuous Paper

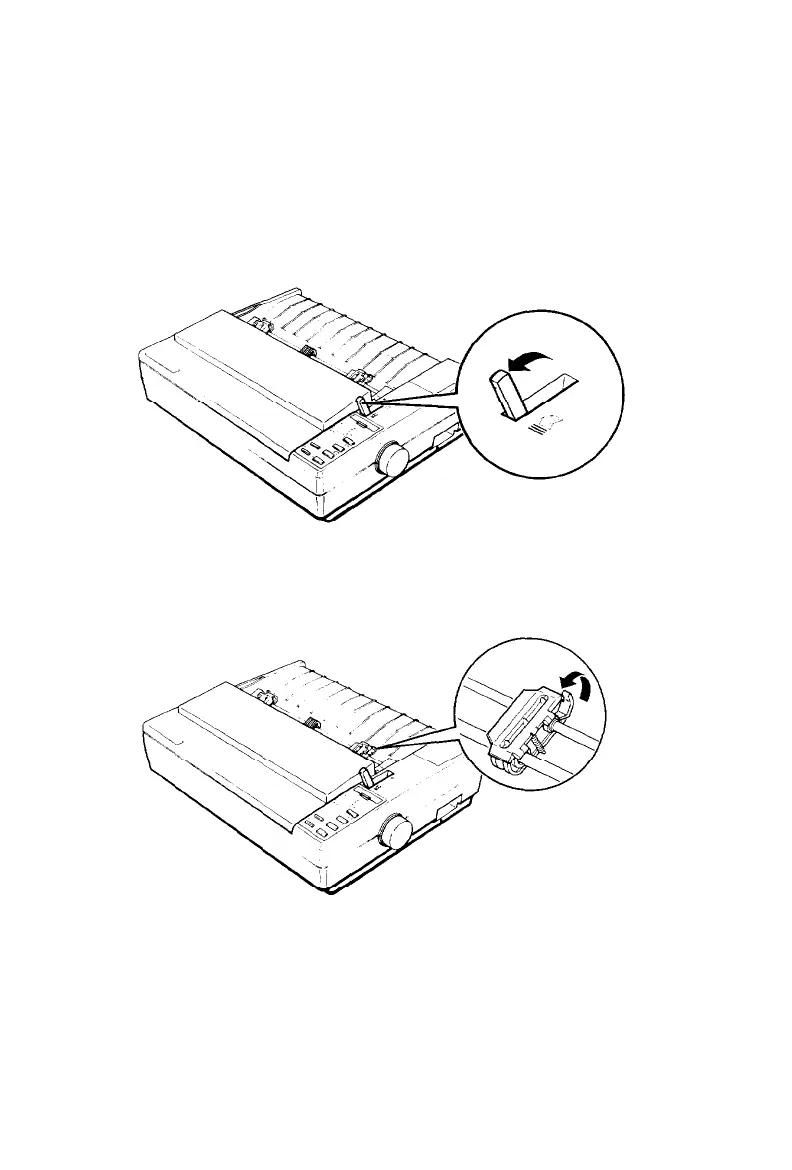

1. Be sure that the printer is turned off, then remove the paper
guide. Set the paper release lever to the continuous paper
position. This position is marked by the icon shown in the
illustration below.
2. Release the sprocket units by pulling the sprocket lock levers
forward as shown below.
Paper Handling 2-7
