Epson LS20-B Series

Maintenance 4. Cable
LS20-B Rev.4 89
M/C
cable
Installation
(

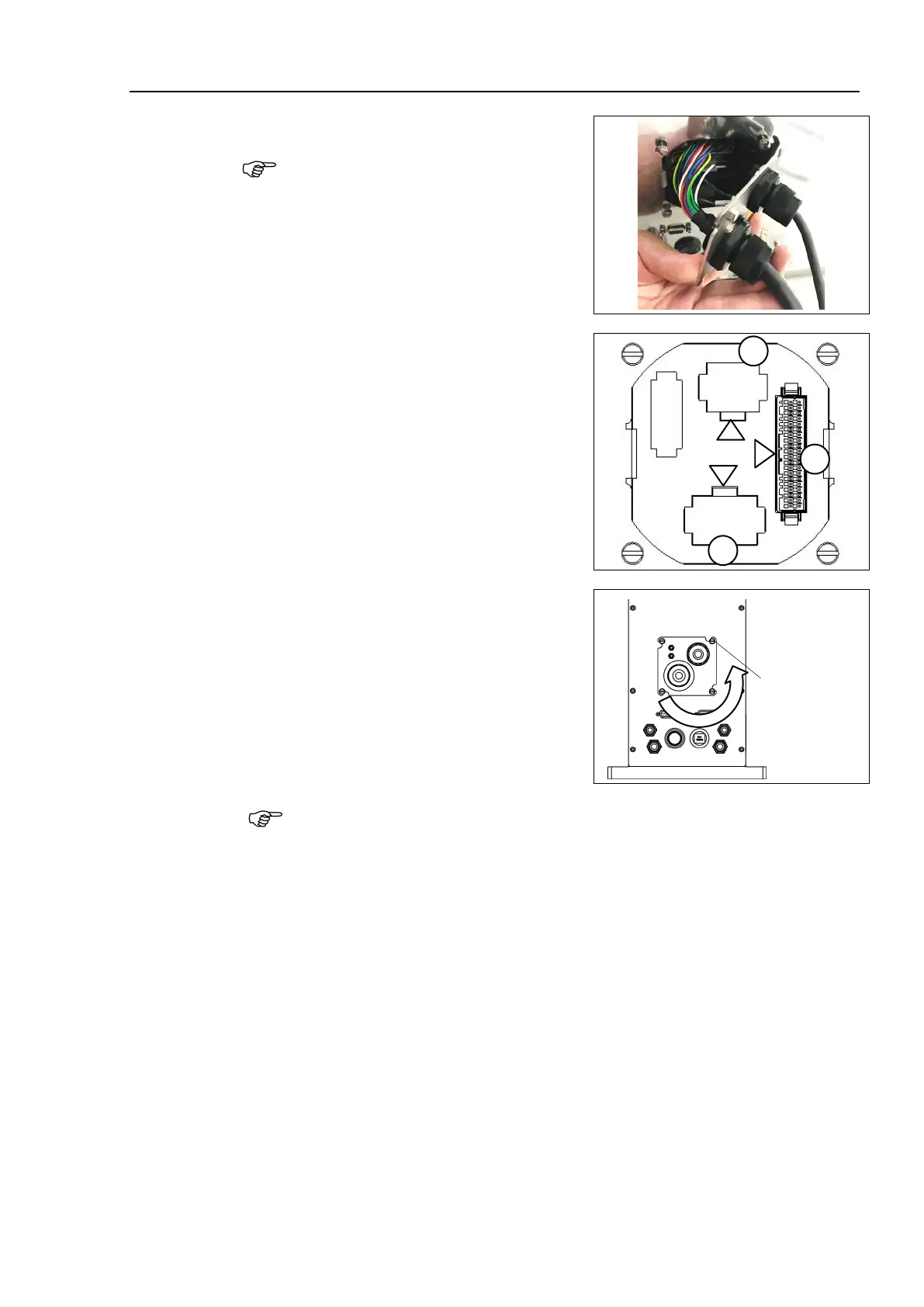

1)
Set
the M/C cable as shown on the right.
Be careful with
the direction of the plate.
(2)
Connect the
following connectors in the
order as shown
on the right.
2
3
1
(3)
Slide
the plate to install it.
Finger screws : 4-M3×10
Tightening torque : 0.6±0.1 N·m
Finger Screws
4-M3×10
Slide the plate until it will be parallel to the
base table.
Be careful not to tighten
the screws with the cables get caught on the plate.
(4)
Connect
the following connectors to the controller.
Power cable connector Signal cable connector
(5)
Turn ON the Controller.

NOTE

NOTE
