Maintenance 4. Cable

LS20-B R ev.4

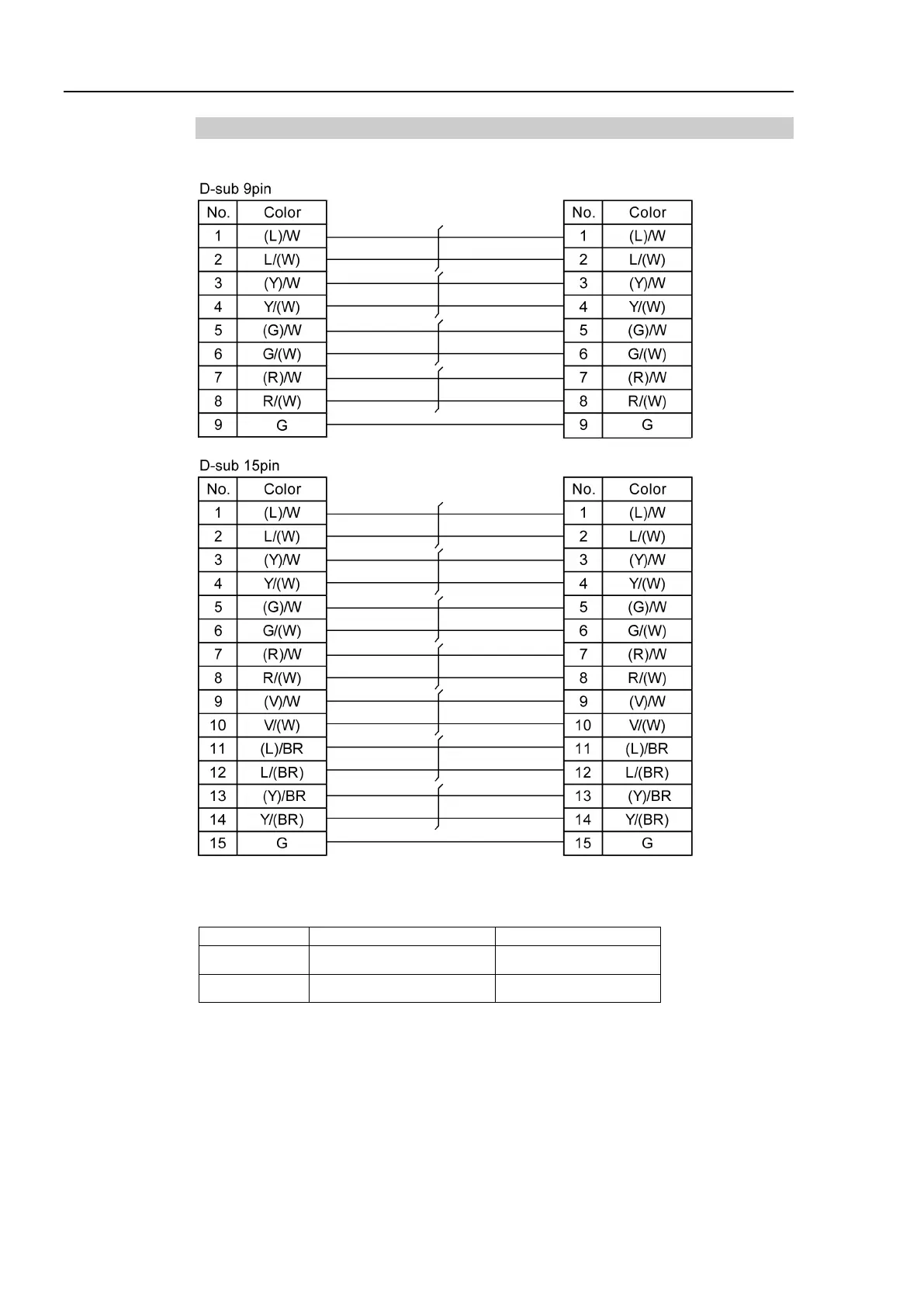

4.2.3 User Cable

The following table shows the types of User cable.

Model name

Model type

Code

LS20-B804*

Standard, Cleanroom 2202239

LS20-BA04*

Standard, Cleanroom 2202240
