Maintenance 11. Boards
LS20-B Rev.4 155
11.2 Replacing the Control Board
Control
Board
Removal
(1)
Turn OFF the controller.
(2)
Remove the Arm Top Cover.
For details, refer to Maintenance: 3.1 Arm Top Cover.
(3)
Disconnect the
following connector.
Connector: X51
(4)
Remove the Control
board.
2-M2×16
Pan head screw

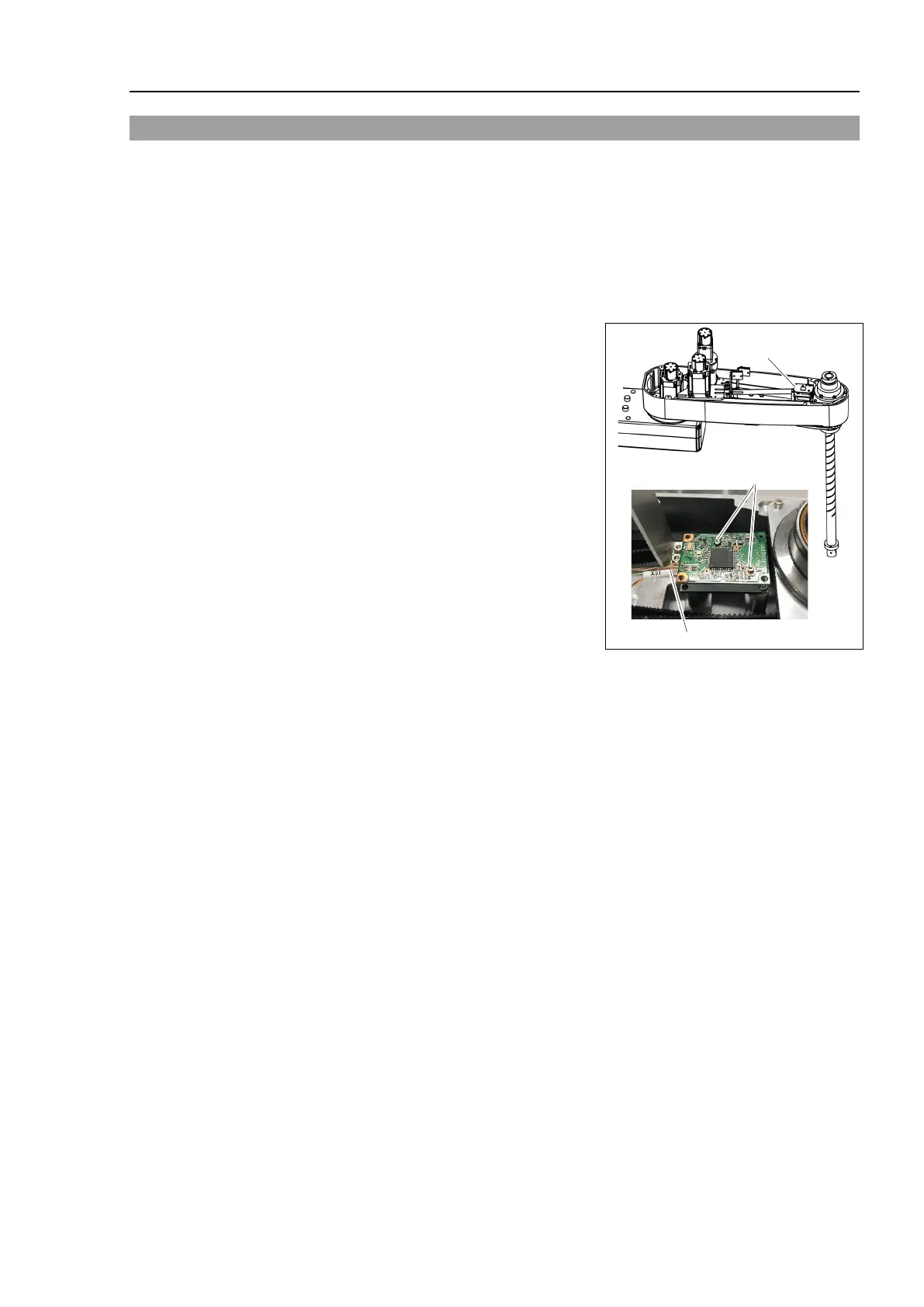

Control Board
Connector
Control Board
Installation
(1)
Mount a new Control board.
Be careful of the board direction.
(Check the board direction by
the connector
position.)
(2)
Connect
the following connector.
Connector: X51
(3)
Mount the Arm Top Cover.
For details, refer to Maintenance: 3.1 Arm Top Cover.
(4)
Turn ON the controller.
