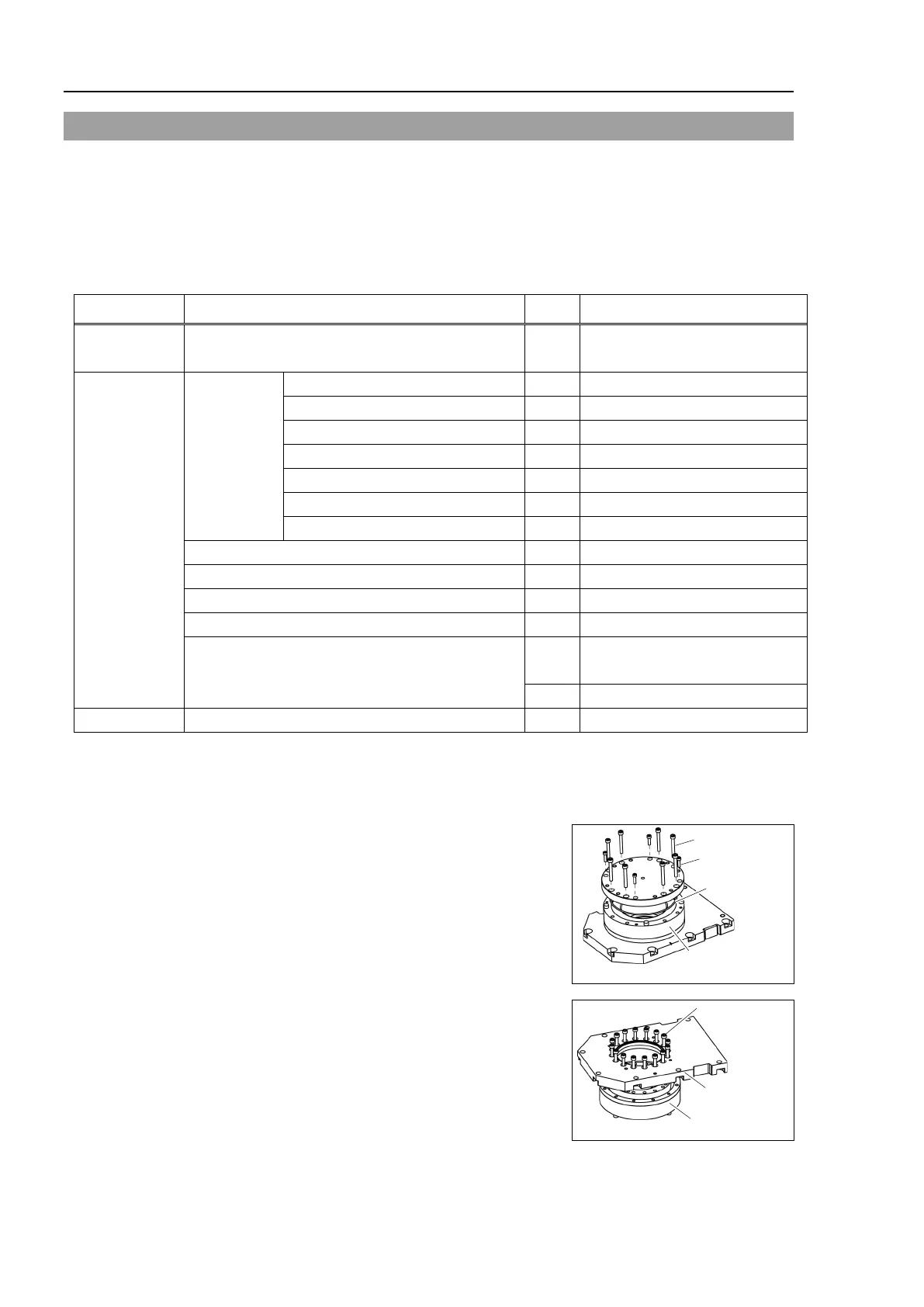

5.2 Replacing Joint #1 Reduction Gear Unit
A reduction gear unit consists of the following three parts. When replacing the reduction
gear unit, be sure to always replace the waveform generator, flexspline, and circular spline
all together as one set.
Waveform generator, Flexspline, Circular spline
For details of the reduction gear unit, refer to Maintenance: 14. Maintenance Parts List.
Name Qty. Note
Maintenance
Part
Joint #1 Reduction Gear Unit 1 1646483
Tools
Hexagonal
wrench
width across flats: 2.5 mm
1
For M5 set screw
width across flats: 3 mm
1
For M4 screw
width across flats: 4 mm
1
For M5 screw
width across flats: 5 mm
1
For M6 screw
width across flats: 6 mm
1
For M8 screw
width across flats: 2.5 mm
1
For M5 set screw
width across flats: 3 mm
1
For M4 screw
Cross-point screwdriver (#2)
1
For M4 screw
Torque wrench
1
Nippers
1
Spatula
1
For apply grease
Wiping cloth
1
For wiping grease
(Motor Flange)
1
For wiping grease (Bolt)
Grease
Grease (SK-1A)
-
-
Joint #1
R
eduction
G
ear Unit
Removal
(1)
Remove the Joint #1 motor unit.
F
ollow the removal steps in Maintenance: 5.1 Replacing Joint #1 Motor.
(2)
Remove the spacer from the reduction gear
unit.
8-M5×40
Spacer
Reduction
Gear Unit
4-M4×15
(3)
Remove the reduction gear unit from the Top
Plate.
16-M5×30
Top Plate
Reduction
Gear Unit
