Epson LS20-B Series User Manual

Maintenance 13. Calibration
LS20-B Rev.4 161

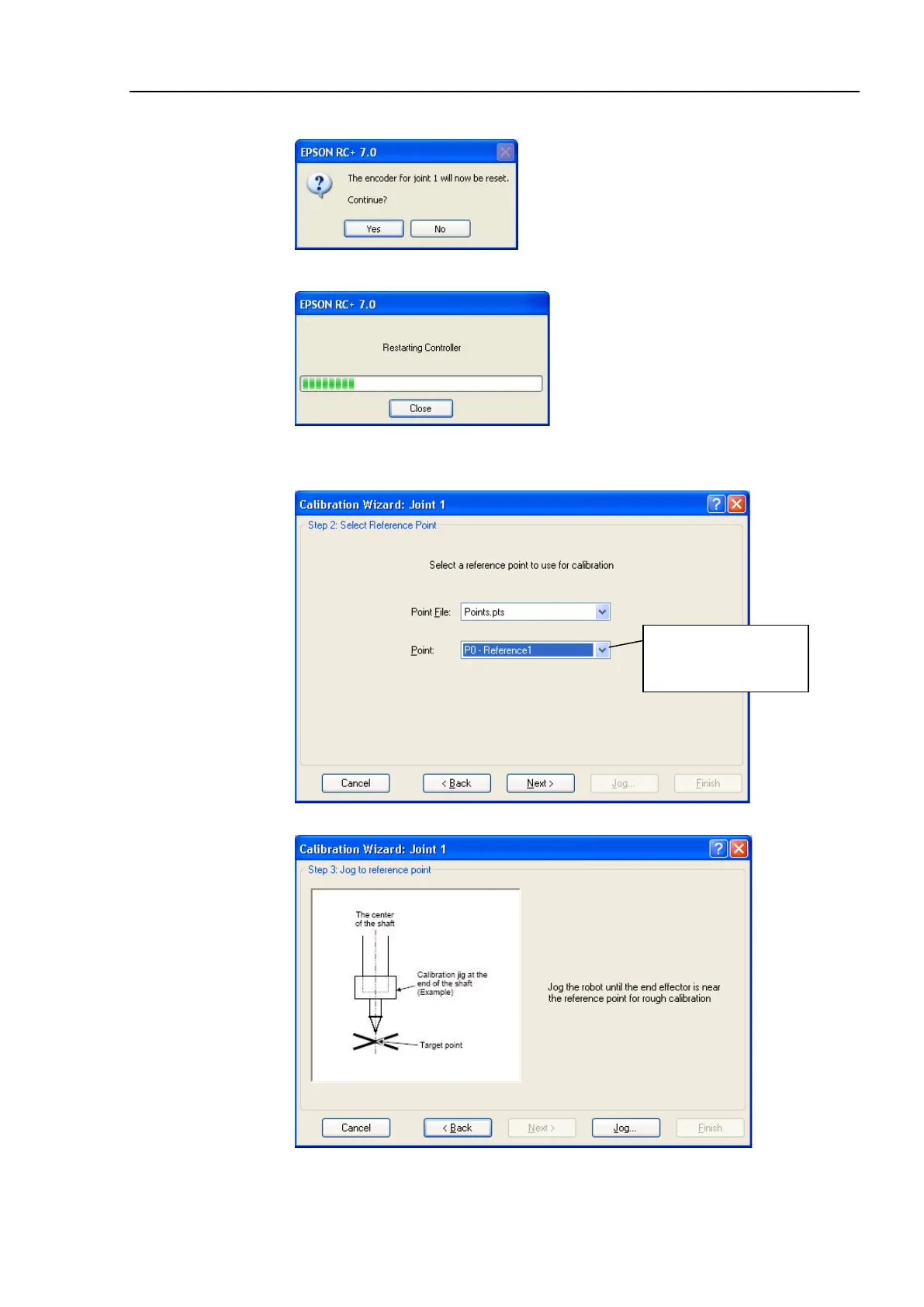

(4) Click the <Yes> button to reset the encoder.
(5) Reboot the Controller.
* This window will disappear when the Controller starts up.
(6) Select the reference point to use for calibration, and click the <Next> button.
Select a point from the
current points to use for
checking the accuracy.
(7) Click the <Jog…> button to display the [Jog & Teach] dialog.
