Epson LS20 Series User Manual

Setup & Operation 3. Environments and Installation
LS20 Rev.4 33
3.4 Unpacking and Transportation
3.4.1 Precautions for Transportation
THE INSTALLATION SHALL BE PREFORMED BY QUALIFIED INSTALLATION
PERSONNEL AND SHOULD CONFORM TO ALL NATIONAL AND LOCAL
CODES.
WARNING
■
Only authorized personnel
should perform sling work and operate a crane and a
forklift. When
these operations are performed by unauthorized personnel, it is
extremely
hazardous and may result in serious bodily injury and/or severe
equipment damage to the
robot system.
CAUTION
■
Using a cart or similar equipment, transport the Manipulator in the same manner
as it was delivered.
■
After
removing the bolts securing the Manipulator to the delivery equipment, the
Manipulator
can fall. Be careful not to get hands or fingers caught.
■
The arm is
secured with a wire tie. Leave the wire tie secured until you finish the
installation so as not to get hands or fingers caught
.
■

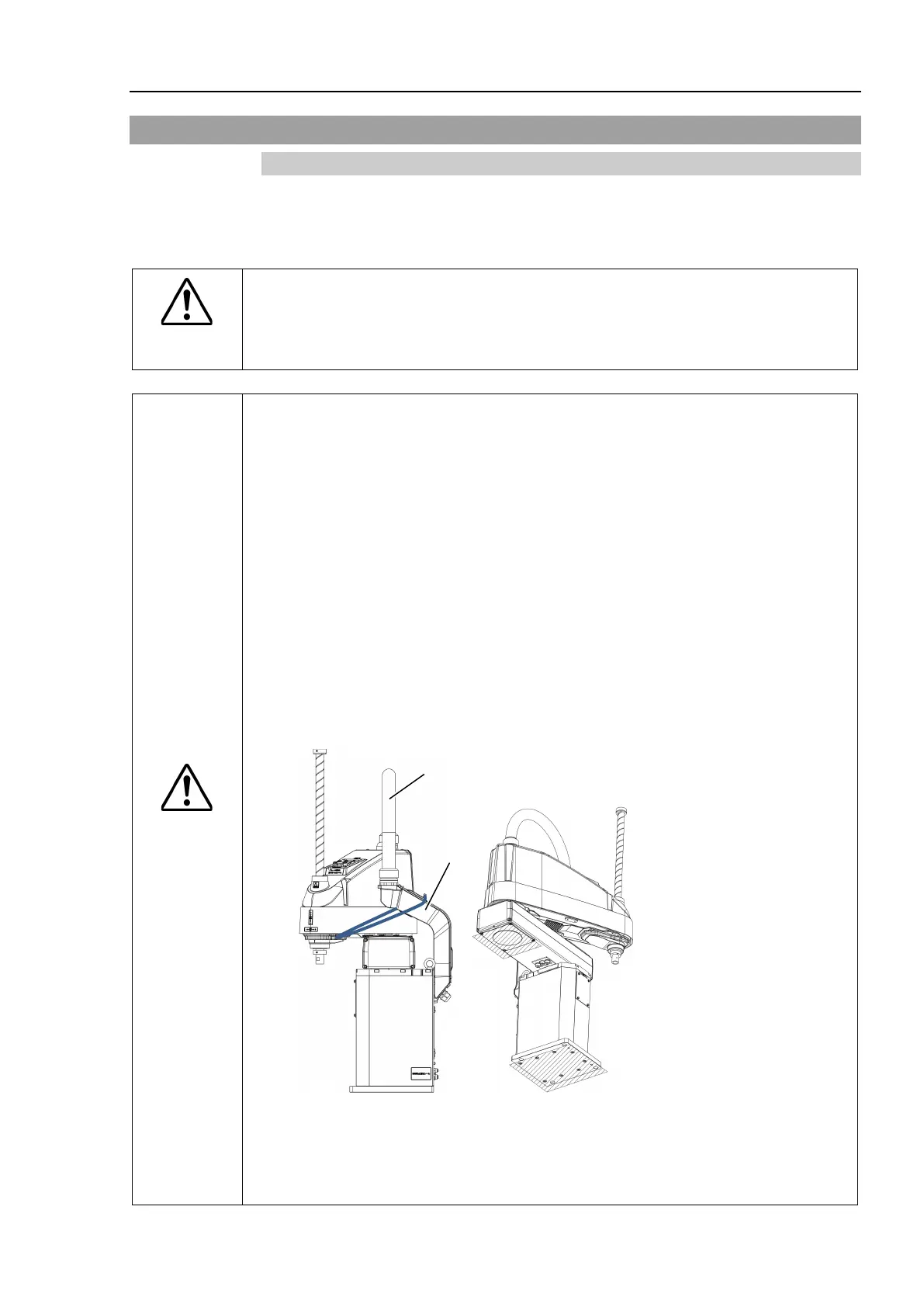

To carry the Manipulator,
secure it to the delivery equipment or pass a belt
through the eyebolt to hang the Manipulator,
and then attach the hands on the
shaded area in the figure
below (bottom of the Arm #1 and the base). If carrying
the Manipulator without using the belt, have at least
two workers to work on it.
When holding the bottom of the base by hand, be very careful not to get your
hands or fingers caught.
■
Do not hold the metal duct and the resin duct when carrying the Manipulator. It
may damage the
m.
Resin duct
Metal duct
LS20-804* : approx. 47 kg :103.6 lb.
LS20-A04* : approx. 50 kg :110.2 lb.
Figure : LS20-804S
■
Stabilize the Manipulator with
your hands when hoisting it.
■
When transporting the Manipulator for a long distance, secure it to the delivery
equipment directly so that the Manipulator never falls.
If necessary, pack the Manipulator in the same style as
it was delivered.
