Epson LS20 Series User Manual

Maintenance 4. Cable
84 LS20 Rev.4
CAUTION
■
If the connectors have been
disconnected during the replacement of the cable
unit, b
e sure to reconnect the connectors to their proper positions. Refer to the
block diagrams.
Improper connection of the connectors may result in improper
function of the
robot system.
For details on th
e connections, refer to Maintenance: 4.2 Wiring Diagrams.
■
When installing the cover, be careful not to allow the cables to interfere with the
cover mounting and do
not bend these cables forcibly to push them into the
cover.
Unnecessary strain on cables may result in damage to the cables,
disconnection, and/or contact failure. Damaged cables, disconnection, or
contact failure is extremely hazardous and may result in electric shock and/or
improper function of the robot syste
m.
When
routing the cables, observe the cable locations
after removing the cover.
Be sure to
place the cables back to their original locations.
■
Be sure to connect the cables properly.
Do not allow unnecessary strain on the
cables. (Do not
put heavy objects on the cables. Do not bend or pull the cables
forcibl
y.) The unnecessary strain on the cables may result in damage to the
cables, disconnection, and/or contact failure. Damaged cables, disconnection,
or contact failure is extremely hazardous and
may result in electric shock and/or
improper function of the robot system.

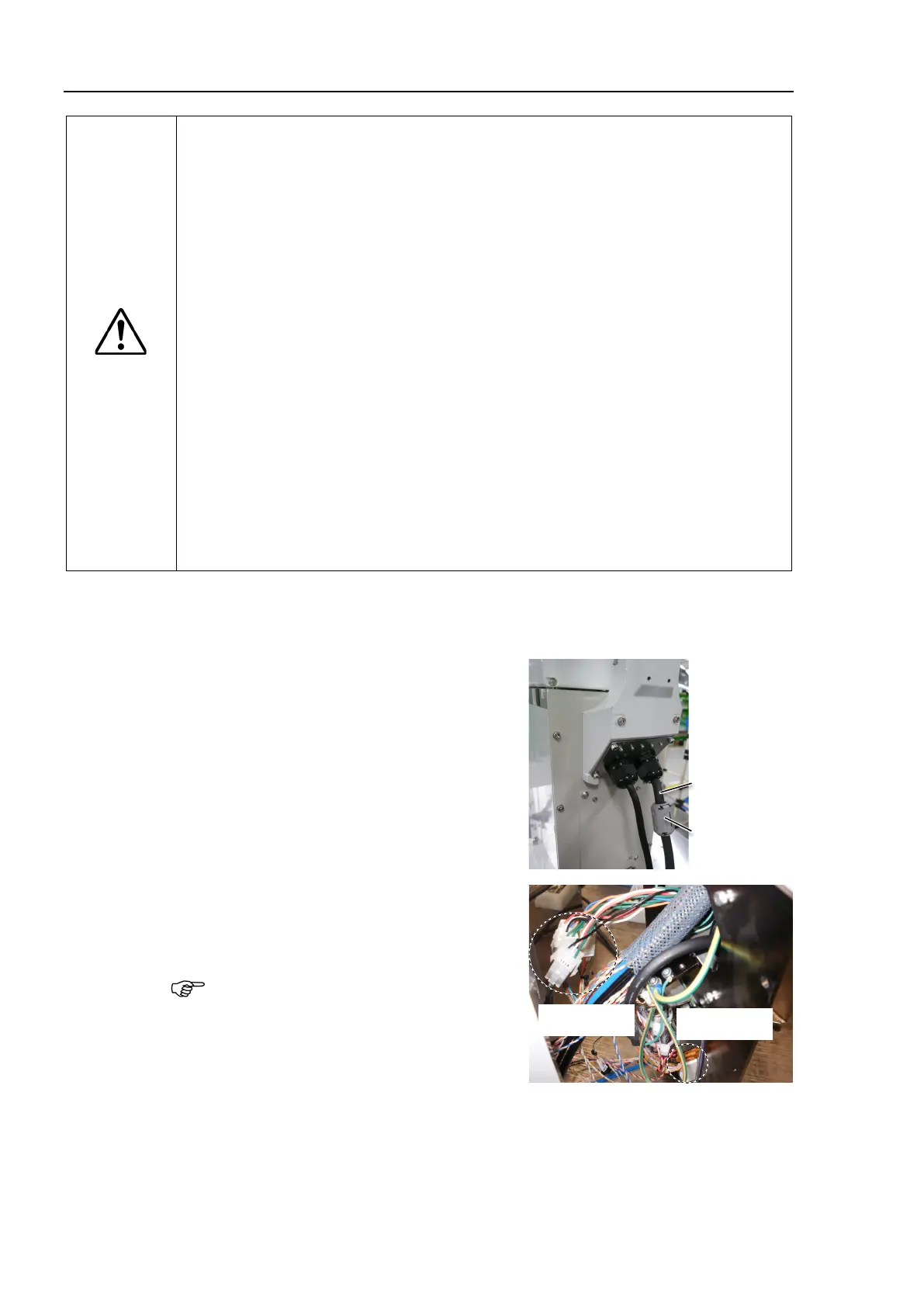

M/C Cable
Removal
(1)
Turn OFF
the Controller.
(2)
Disconnect the power cable and signal cable connectors from the controller
.
(3)
Remove the ferrite core on the power cable.
The part will be used again. Be careful not
to lose it.
Ferrite core
Power cable
(4)
Remove the Connector Plate.
For details, refer to Maintenance: 3.4
Connector Plate.
Do not pull the plate forcibly.
Signal Cable
: 1 connector
Power Cable
: 3 connectors

NOTE
