Maintenance 4. Cable
LS20 Rev.4 85

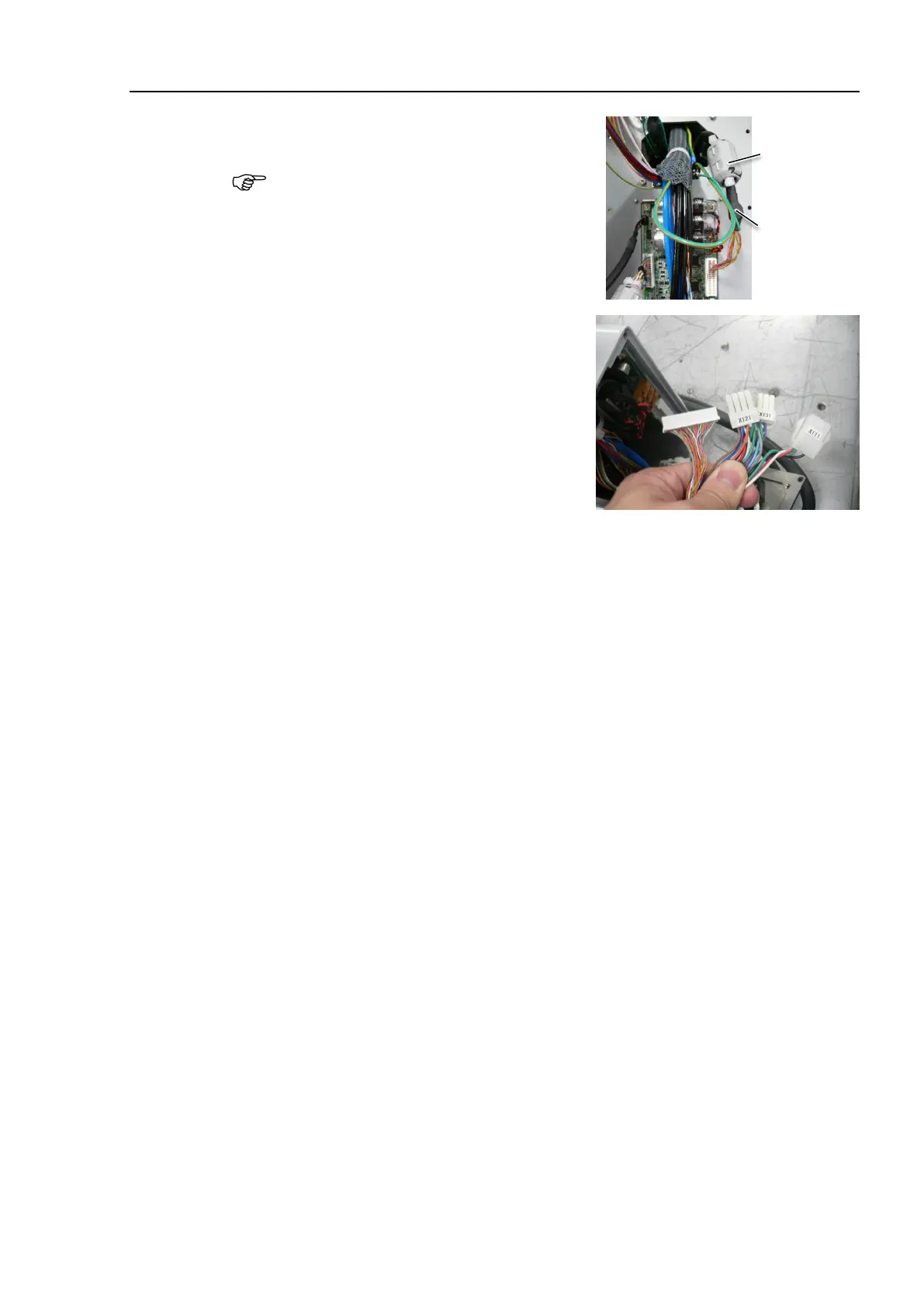

Remove the ferrite core on the signal cable.
The part will be used again. Be careful not
to lose it.
the connectors.
ach connector has a unique number.
has a different shape.
Remove the Connector Sub Plate.
For details, refer to Maintenance: 3.5 Connector Sub Plate.
1)
Install the Connector Sub Plate with the new M/C Cable to the Connector Plate.
For details, refer to Maintenance: 3.5 Connector Sub Plate.
2)
Connect the connectors. (Connect to the Cable Unit with the same number.)
Install the ferrite core removed in the removal step (5) to the signal cable.
4)
Plate.
For details, refer to Maintenance: 3.4 Connector Plate.
Install the ferrite core removed in the removal step (3) to the power cable.
Connect the power cable and signal cable connectors to the controller
.
If the connector falls off from the battery board, execute
the calibration for all axes.
For details, refer to Maintenance: 13 Calibration.
