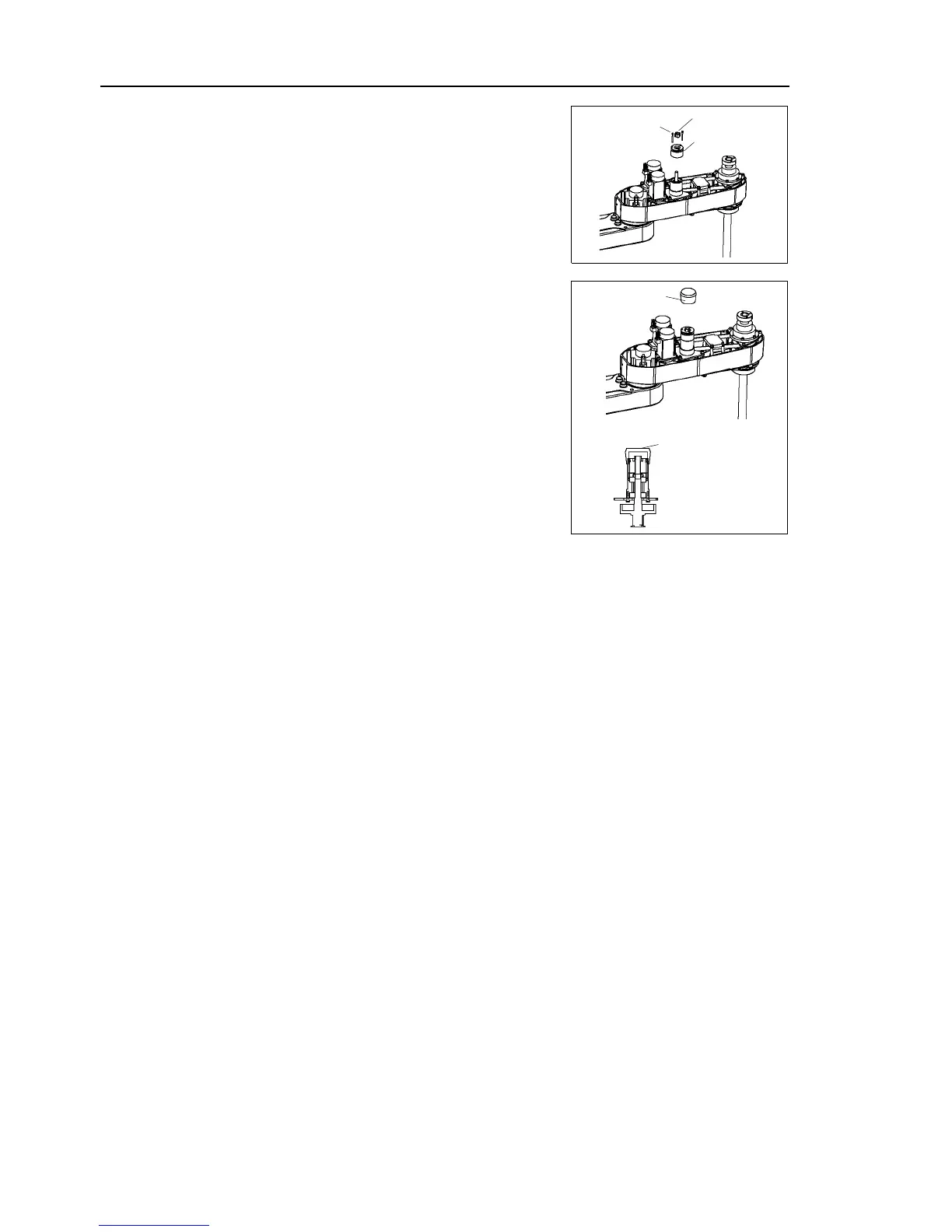

Maintenance 8. Arm #4
136 LS Rev.10
For LS6 series
Joint #4 brake
Installation
(1)
Mount the brake
to the Joint #4 intermediate
shaft unit.
2-M2.5×25
Brake Hub
Brake
(2)
Mount the brake hub to the Joint #4
intermediate shaft unit.
(3)
Mount the rubber cap.
Insert 9 mm to the brake.
If the cap is
inserted 10 mm or more, the
rotation part touches the rubber cap and may
result in
malfunctions.
Rubber Cap
Rubber Cap
Rotator part
(Brake Hub)
(4)
Connect the connector
X42.
(5)
Re
-bundle the cables in their original positions with a wire tie removed in step (6).
Do not
allow unnecessary strain on the cables.
(6)
Install the
Arm Top Cover.
For details, refer to
Maintenance: 3.1 Arm Top Cover.
