Setup & Operation 5. Motion Range
60 LS Rev.10

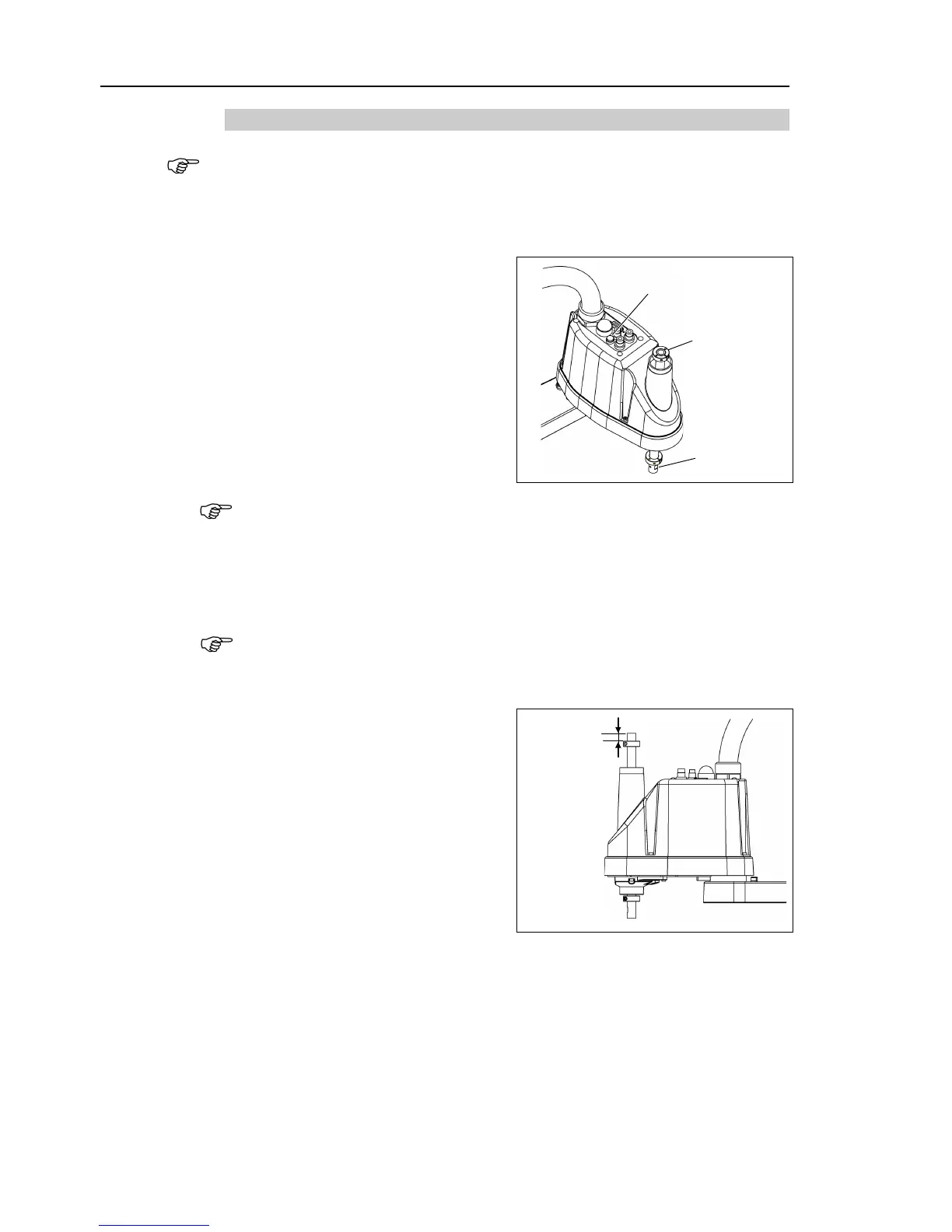

5.2.2 Setting the Mechanical Stop of Joint #3
This method applies only to the Standard-model manipulator (LS3-401S, LS6-**2S).
For the Cleanroom-model (LS3-401C, LS6-**2C
), the motion range set with the Joint #3
mechanical stop cannot be changed.
(1)
Turn ON the Controller and turn OFF the motors using the Motor OFF command.
(2)
Push up the shaft while pressing the
brake release
switch.
Do not push the shaft up to its upper
limit or it
will be difficult for the arm
top cover to be removed. Push the
shaft up to a position where the Joint #3
mechanical stop can be changed.
Shaft
Lower limit
mechanical
stop screw
M3×10
Brake release switch
When you press
the brake release switch, the shaft may lower due to the weight of
the end effector.
Be sure to hold the shaft by hand while pressing the button.
(3)
Turn OFF the
Controller.
(4)
Loosen the lower limit mechanical stop screw (M
3×10).
A mechanical stop is
mounted on both the top and bottom of Joint #3. However, only
the position of the lower limit mechanical stop on the top can be changed.
Do not
remove the upper limit mechanical stop on the bottom because the calibration point of
Joint #3 is specified
using the stop.
(5)
The upper end of the shaft
defines the
maximum stroke.
Move the lower
limit mechanical stop down by the
length you want to limit the stroke.
For example, when the lower limit
mechanical stop is set at “
150 mm”
stroke, the lower limit Z
coordinate
value is “
-150”. To change the value
to “
-130
”, move the lower limit
mechanical stop down
“20 mm”. Use
calipers to measure the distance when
adjusting
the mechanical stop.
Measure
this distance.
(6)
Firmly tighten the lower
limit mechanical stop screw (M3×10).
Recommended tightening torque:
2.45 N·m (25 kgf·cm)
(7)
Turn ON the
Controller.

NOTE

NOTE

NOTE
