Setup & Operation 4. Setting of End Effectors
LS Rev.10 45
4.2 Attaching Cameras and Valves

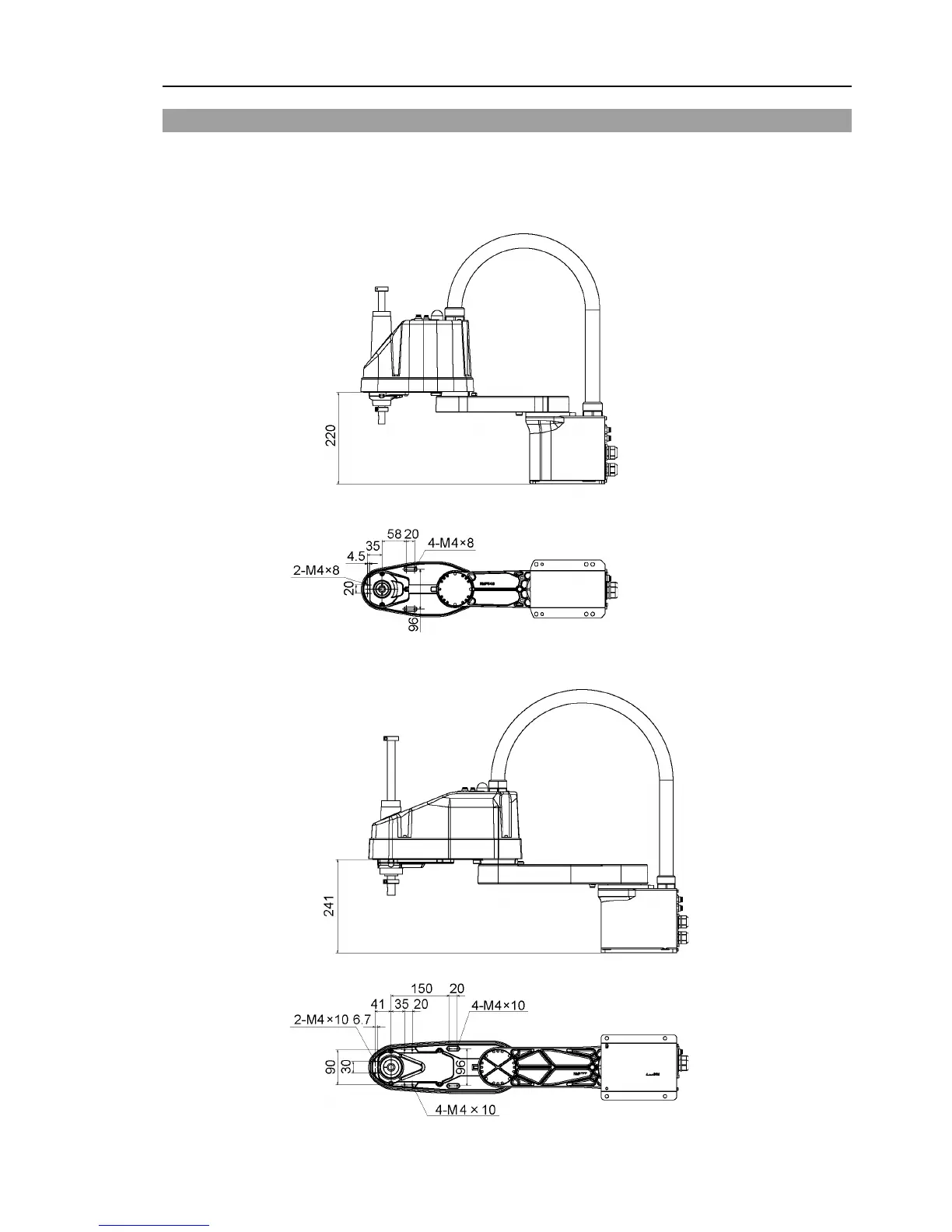

The bottom of the Arm #2 has threaded holes as shown in the figure below. Use these
holes for attaching cameras, valves, and other equipment. [Unit: mm]
LS3
From the base mounting face
LS6
From the base mounting face
