Epson LS3-401 series User Manual

Maintenance 12. LED Lamp
152 LS Rev.10

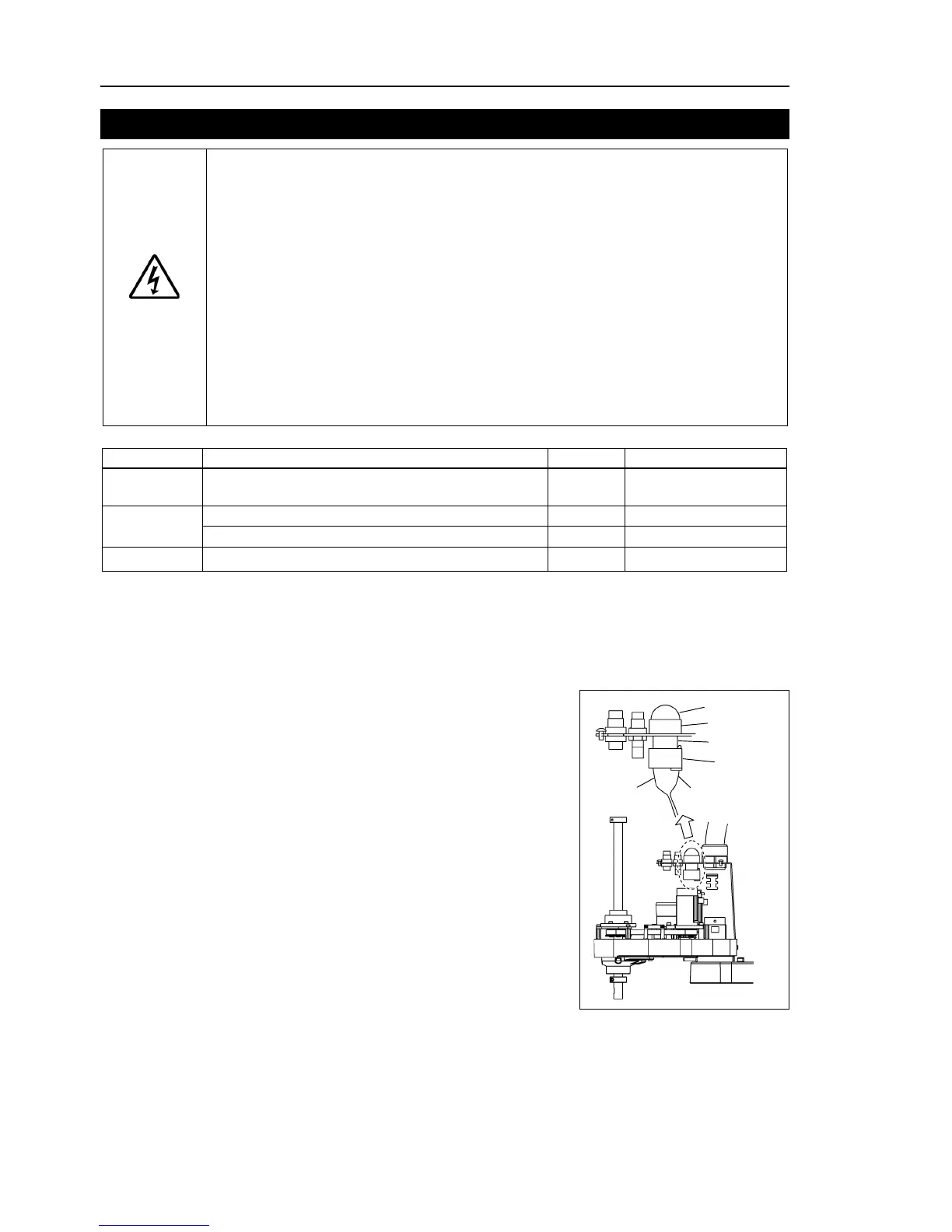

12. LED Lamp
WARNING
■
Do not insert or pull out the motor connectors while the power to the robot system
is turned ON. Inserting or pulling out the motor connectors
with the power ON is
extremely hazardous and may result
in serious bodily injury as the Manipulator
may move abnormally, and also may result in
electric shock and/or malfunction of
the robot system.
■
To shut off power
to the robot system, pull out the power plug from the power
source. Be sure to connect the AC power cable to a power receptacle. DO
NOT connect it directly to a factory power source.
■
Before performing any replacement procedure, turn OFF the Controller and
related equipment,
and then pull out the power plug from the power source.
Performing any replacement with the power ON is extremely hazardous and may
result in
electric shock and/or malfunction of the robot system.
Name
Quantity
Note
Maintenance
parts
LED Lamp 1 R13A030000200
Tools
Cross-point screwdriver
1
For wire removal
Nippers
1
Material
Wire tie 1
LED Lamp
Removal
(1)
Remove the
Arm Top Cover.
For details, refer to
Maintenance: 3.1 Arm Top Cover.
(2)
Remove the
User Plate.
For details, refer to
Maintenance: 3.5 User Plate.
(3)
Disconnect the X1 and X2 terminals from the
LED.
X2
Terminal
X1 Terminal
Lens
Lens Holder
Ring
LED
(4)
Turn the lens counter
clockwise to remove.
Then, turn the lens holder counter
clockwise to
remove.
(5)
Remove
the LED and ring from the User Plate.
LED Lamp
Installation
(1)
Connect the X1 and X2 terminals to the LED.
Each terminal must be connected to the same
terminal number on the LED.
(2)
Put the User Plate between the ring and lens
holder, and then
secure the LED to the cover.
(3)
Mount the lens.
(4)
Mount the User Plate.
For details, refer to
Maintenance: 3.5 User Plate.
(5)
Install the
Arm Top Cover.
For details, refer to Maintenance: 3.1 Arm Top Cover.
