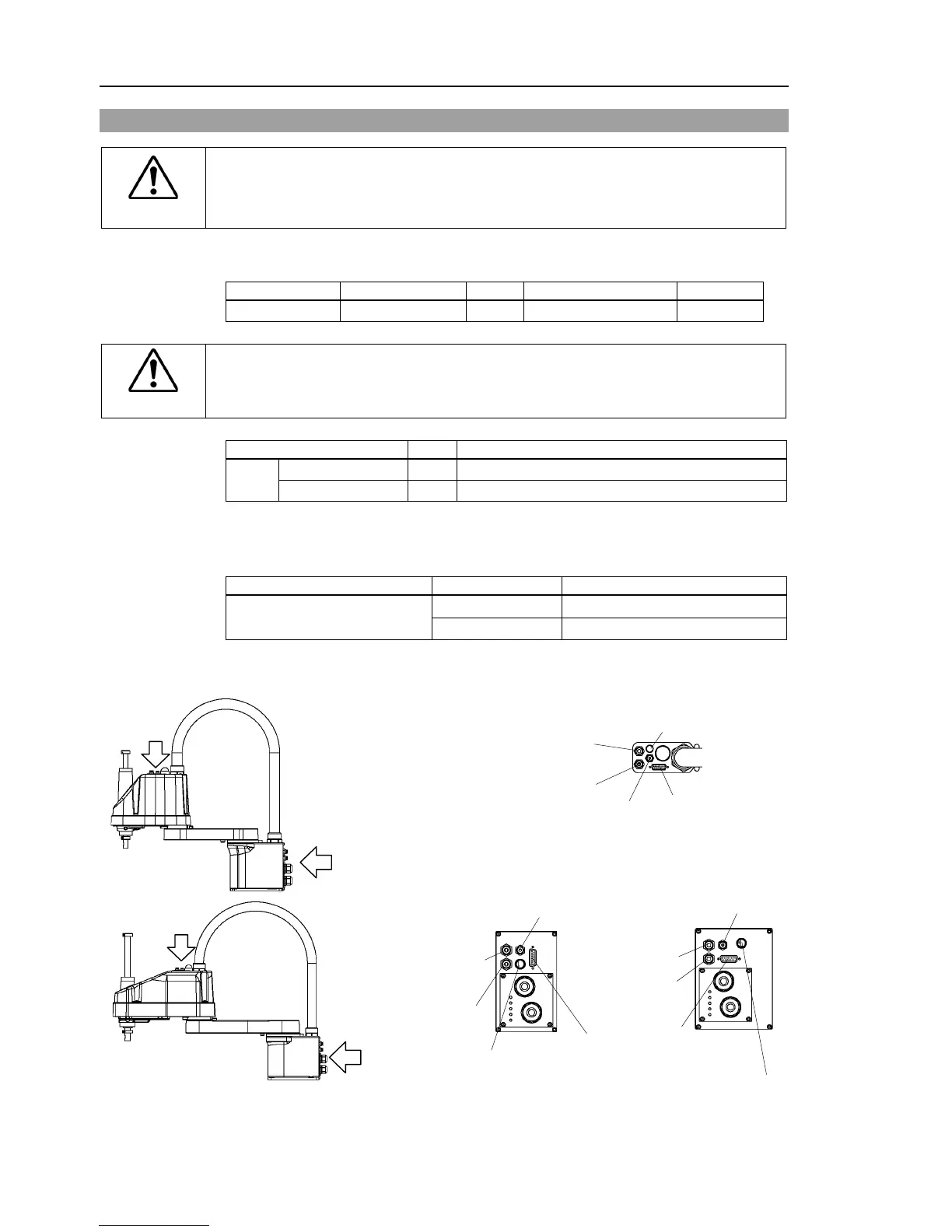

3.7 User Wires and Pneumatic Tubes
CAUTION
■
Only authorized or certified personnel should be allowed to perform wiring.
Wiring by unauthorized
or uncertified personnel may result in bodily injury and/or
malfunction of
the robot system.
User electrical wires and pneumatic tubes are contained in the cable unit.
Electrical Wires
Rated Voltage
Allowable Current
Wires
Nominal Sectional Area
Note
AC/DC30 V
1 A
15
0.211 mm
2
Twist pair
WARNING
■
Do not apply the current
more than 1A to the manipulator.
Maker
Standard
15 pin
Suitable Connector
JAE
DA-15PF-N
(Solder type)
Clamp Hood
JAE
DA-C8-J10-F2-1R
(Connector setscrew: #4-40 NC)
Pins with the same number, indicated on the connectors on both ends of the cables, are
connected.
Pneumatic Tubes
Max. Usable Pneumatic Pressure
Pneumatic Tubes
Outer Diameter × Inner Diameter
0.59 MPa (6 kgf/cm
2
: 86 psi)
2
ø 6 mm × ø 4 mm
1
ø 4 mm × ø 2.5 mm
Fittings for ø6 mm and ø4 mm (outer diameter) pneumatic tubes are supplied on both ends
of the pneumatic tubes.
Fitting (black or blue)
for ø4 mm pneumatic tube
Detail view from A
Detail view from B
A
B
LS3-401*
LS6-**2*
A
C
Detail view from C
Brake release switch
User connector
(15-pin D-sub connector)
15
-pin
D-sub connector
Fitting (white)
for ø6 mm pneumatic tube
Fitting (black or blue)
for ø6 mm pneumatic tube
Exhaust port
(Cleanroom-model only)
Exhaust port
(Cleanroom-model only)
Fitting (black or blue)
for ø4 mm pneumatic tube
Fitting (blue)
for ø4 mm pneumatic tube
Fitting (black or blue)
for ø6 mm pneumatic tube
Fitting (white)
for ø6 mm pneumatic tube
Fitting (blue)
for ø6 mm
pneumatic tube
Fitting (white)
for ø6 mm
pneumatic tube
