Maintenance 13. Calibration
158 LS Rev.10

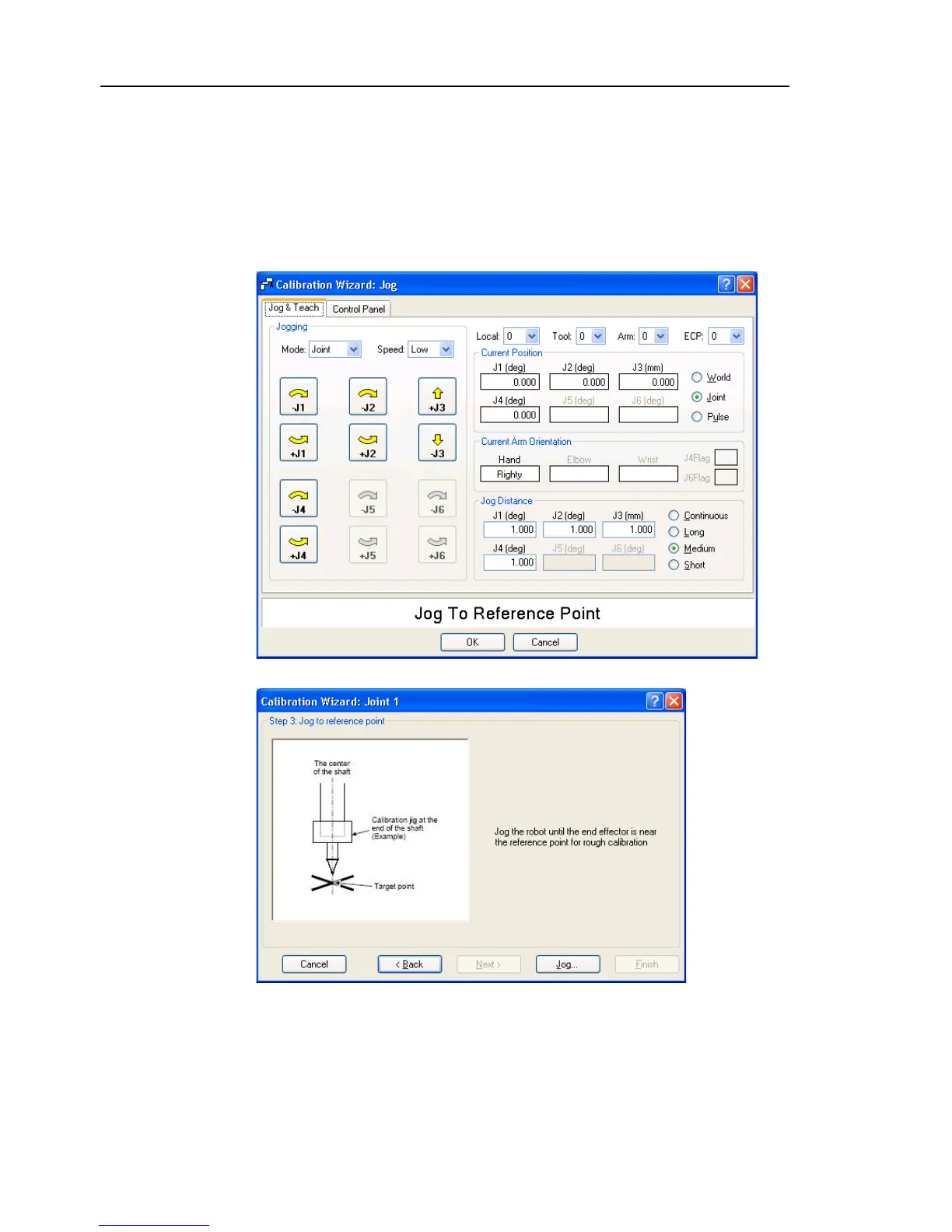

(8) Jog the end effector to approximate reference point in the [Jog & Teach] dialog for
rough calibration. Then click the <OK> button.
Before operating the robot, open the [Control Panel] and click on the <Motor ON>
button.
Move the end effector from the zero pulse position to the approximate reference point
where rough calibration will be executed at by the jog motion. Position gap may
occur if the end effector is not moved by the jog motion.
To Next Page
