Epson LS3-401 series - Page 35

Setup & Operation 2. Specifications
LS Rev.10 21

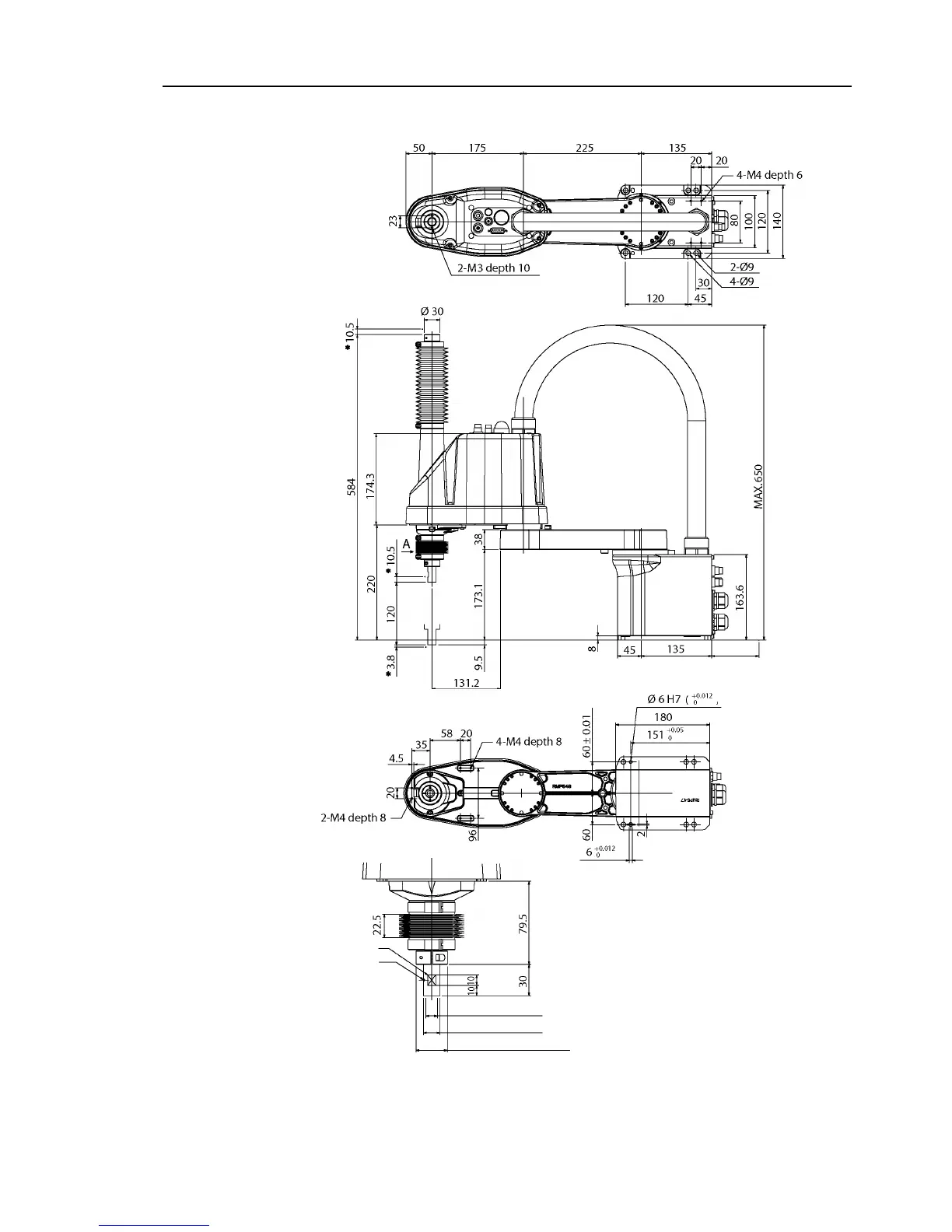

Cleanroom-Model LS3-401C
(*) indicates the stroke margin
by mechanical stop.
90 or more
(Space for cables)
φ16 h7 shaft diameter
Max.ø11 through hole
φ30 mechanical stop diameter
Conical hole Ø3,90°
1 mm flat
Detail view from A
