DISASSEMBLY/ASSEMBLY Disassembly Procedure 33
4.2.1 Removal of TPU Unit
1. Disconnect the TPU Unit Cable from the Main Unit.
2. Open the TPU Unit.
3. Pull up and remove the TPU Unit.

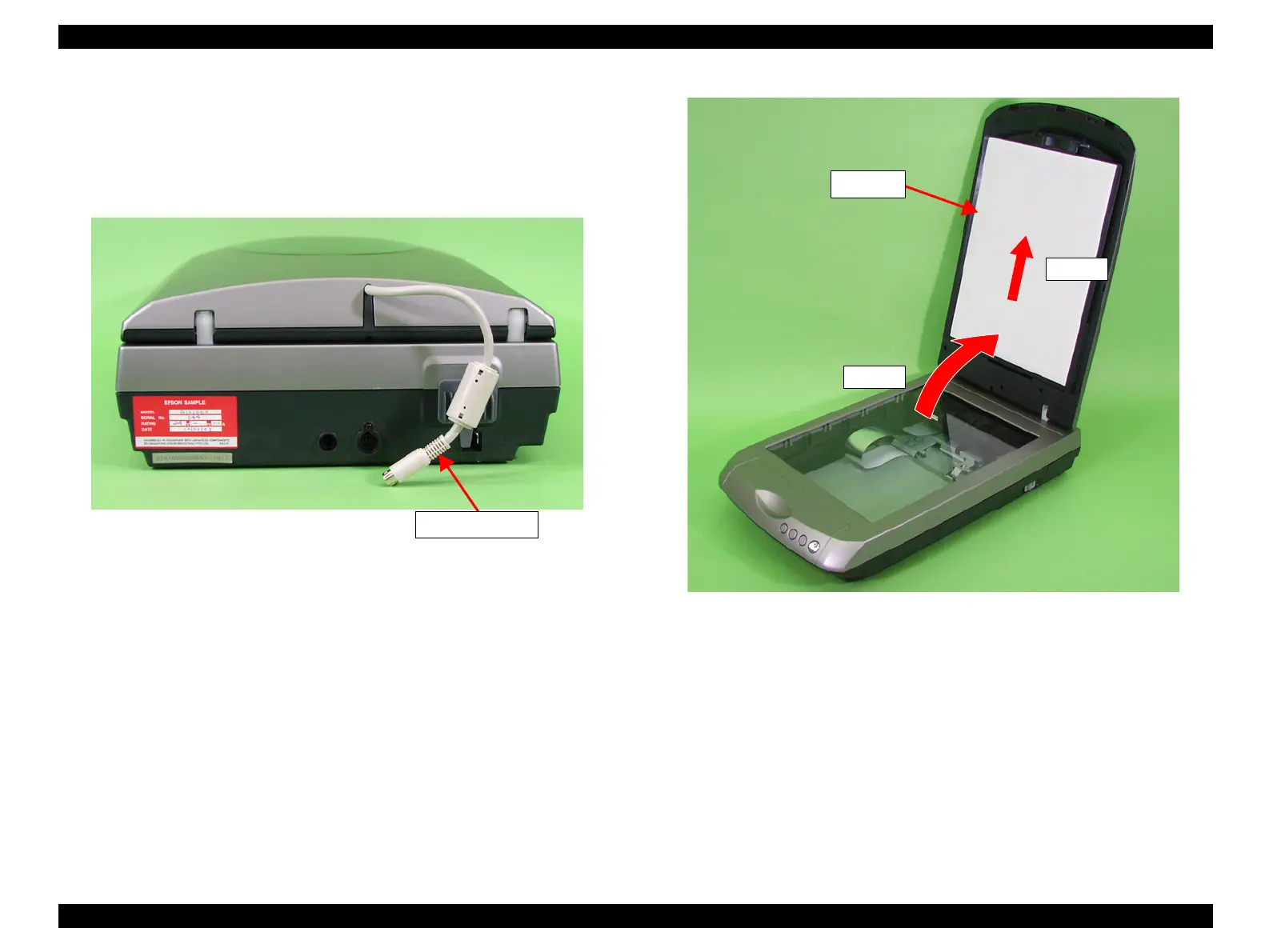

Figure 4-3. Removal of TPU Unit (1)
Figure 4-4. Removal of TPU Unit (2)
TPU Unit Cable
TPU Unit
Step 2
Step 3
